System-board LEDs

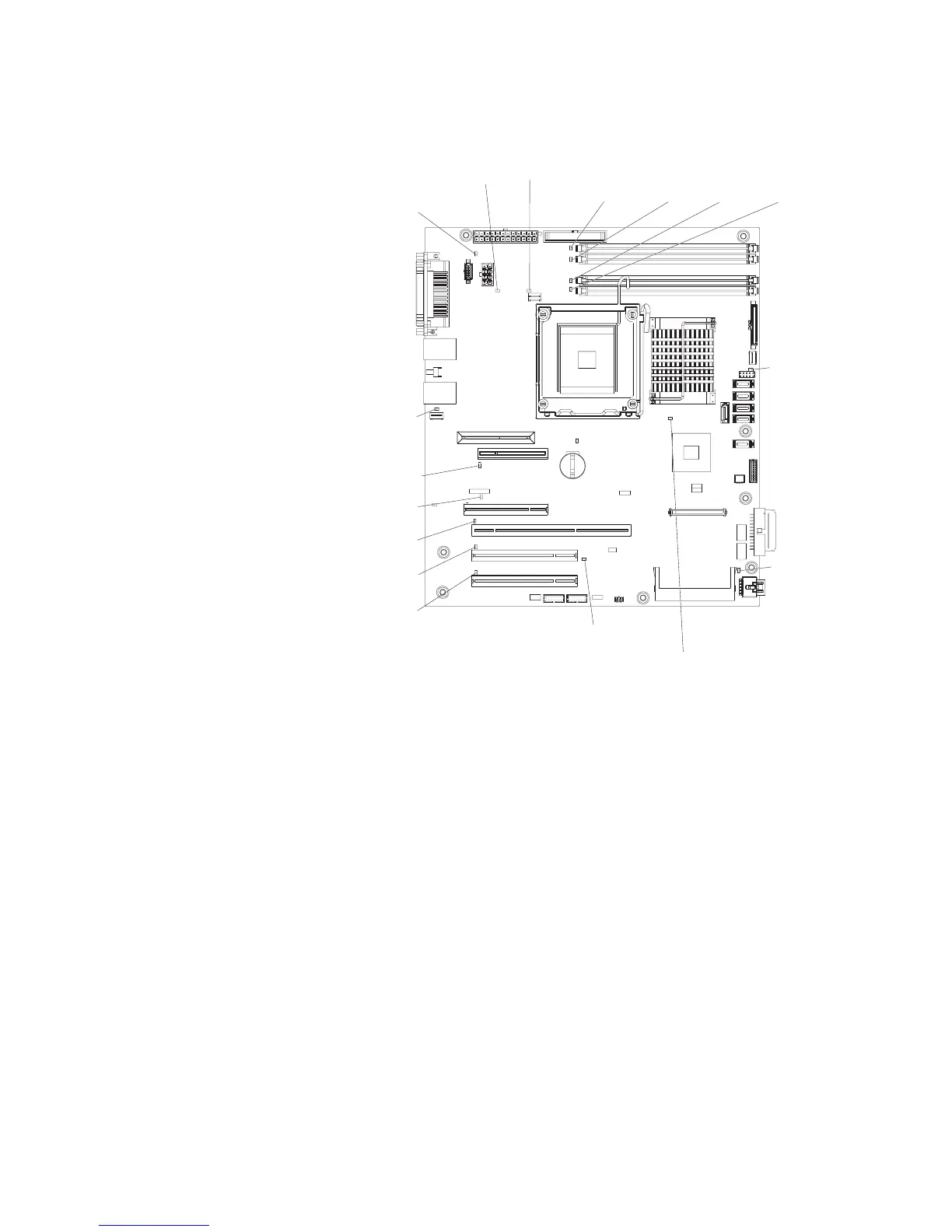

The following illustration shows the LEDs on the system board.
Slot 5, PCI 32-bit 33 MHz LED
Slot 4, PCI 32-bit 33 MHz LED
Slot 3, PCI-X 64-bit 133 MHz LED
Slot 2, PCI Express x4 LED
Slot 1, PCI Express x8 LED
Standby power LED
Microprocessor
fan LED
DIMM 1
LED
DIMM 2
LED
DIMM 3
LED
DIMM 4
LED
System fan LED
Hard drive
fan LED
Mini-PCI slot
LED
Microprocessor LED
Board VRD fault LED
Mini-BMC
heartbeat LED
12 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide
