IBM x3200 M2 Type 4367 User Manual

Connecting the cables
You must turn off the server before you connect any cables to or disconnect any
cables from the server.
Note: If the cable that you are connecting or disconnecting is a USB cable,
however, you do not have to turn off the server.
See the documentation that comes with optional devices for additional cabling
instructions. It might be easier for you to route cables before you install certain
devices.
For details about the locations and functions of the input/output connectors, see
“Server controls, LEDs, and power” on page 4.

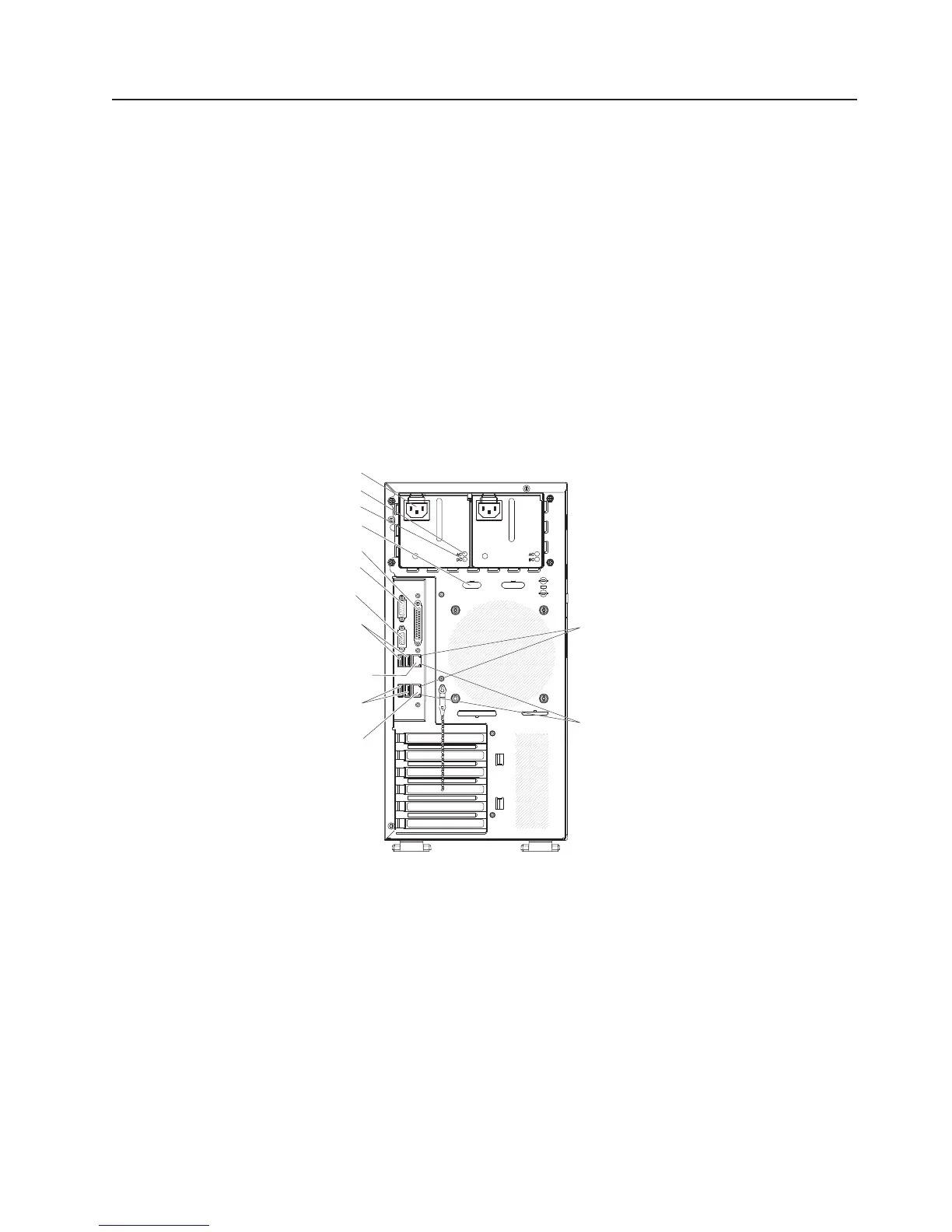

The following illustration shows the locations of the input/output connectors.
Detailed cabling instructions for installing the server in a rack are in the Rack
Installation Instructions that come with the server.
Serial 2 (Com2)
Serial 1 (Com1)
Video
USB 3 and 4
USB 1 and 2
Remote
Supervisor
Adapter II
SlimLine
(Ethernet)
Ethernet
connector
Parallel
Power cord
AC power LED
DC power LED
Ethernet transmit/
receive activity LED
(amber)
Ethernet link
status LED
(green)
Chapter 4. Removing and replacing server components 51

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
