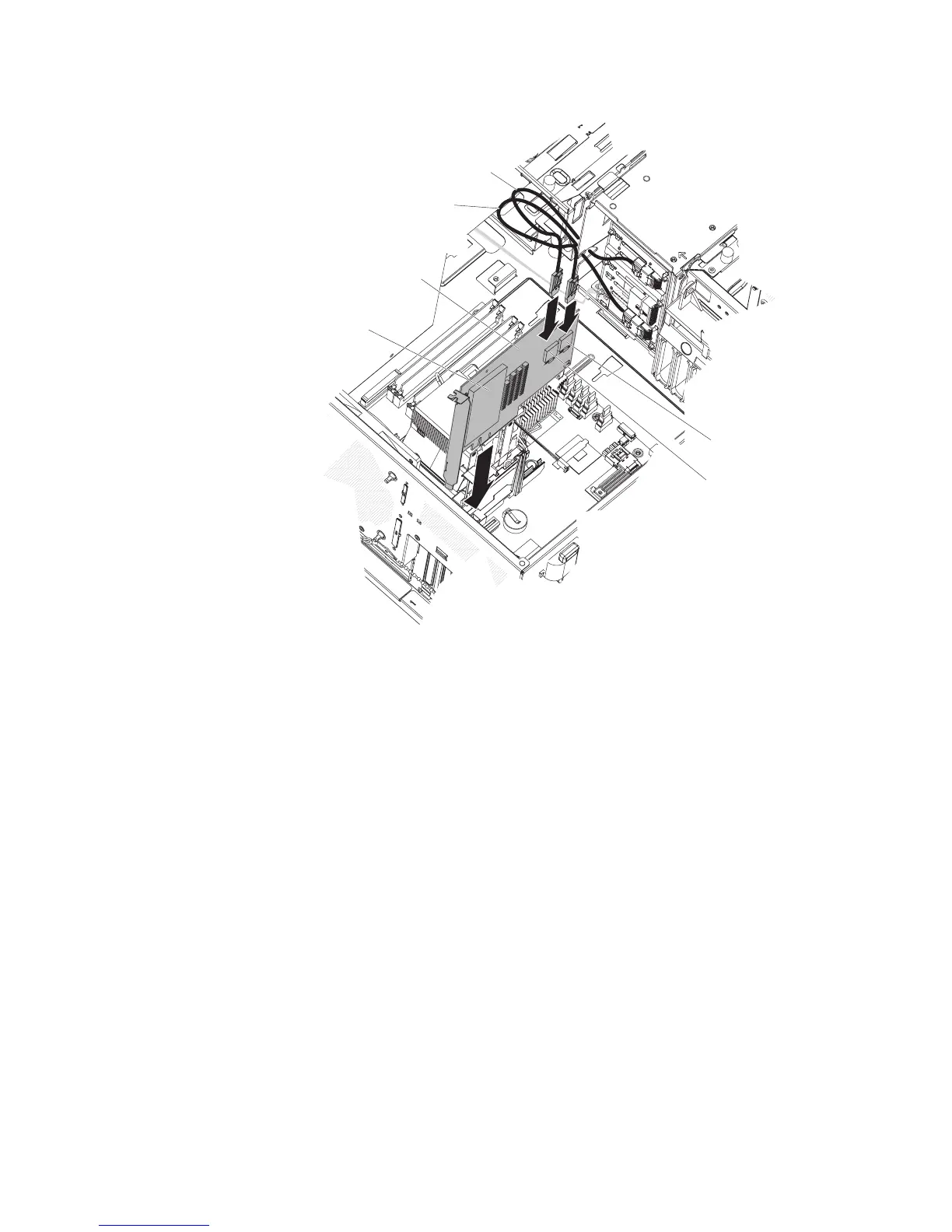

Hard disk drive cable 0 - 3
Hard disk drive
cable connector 0 - 3
Hard disk drive cable 4 - 7
Hard disk drive
cable connector 4 - 7
Battery
ServeRAID-MR10i
SAS/SATA controller
Note: The drive cage should be in the open position. This illustration shows it
in the closed position.
8. Press the ServeRAID-MR10i SAS/SATA controller firmly into the connector on
the system board.
9. Take the other end of the signal cable that is attached to the drive backplane
section for drive bays 0 through 3 (as labeled on the front of the drive cage)
and connect it to the connector that is closest to the battery on the
ServeRAID-MR10i SAS/SATA controller. If drives are installed in drive bays 4
through 7 (as labeled on the front of the drive cage), take the other end of the
signal cable that is attached to drive backplane section for drive bays 4
through 7 and connect it to the connector that is farthest from the battery on
the ServeRAID-MR10i SAS/SATA controller.
10. Replace the hard disk drive fan assembly:
a. Insert the hard disk drive fan assembly retaining tab over the right edge of
the hard disk drive backplane; then, rotate the assembly toward the
backplane. Do not fully close the hard disk drive fan assembly.
b. Route the signal cables and power cable through the slot on the edge of
the hard disk drive fan assembly. Make sure that the cables will not be
pinched between the hard disk drive fan assembly and the hard disk drive
backplane when the assembly is installed.
c. Rotate the hard disk drive fan assembly toward the backplane until the
release tabs are fully engaged and snaps in place.
11. Reconnect the hard disk drive fan assembly cable to the system board.
Chapter 4. Removing and replacing server components 101
