Attention: The microprocessor retention latch is spring-loaded when the
microprocessor is in place. Releasing the latch too quickly or allowing it to
spring upward can damage the microprocessor and surrounding components.

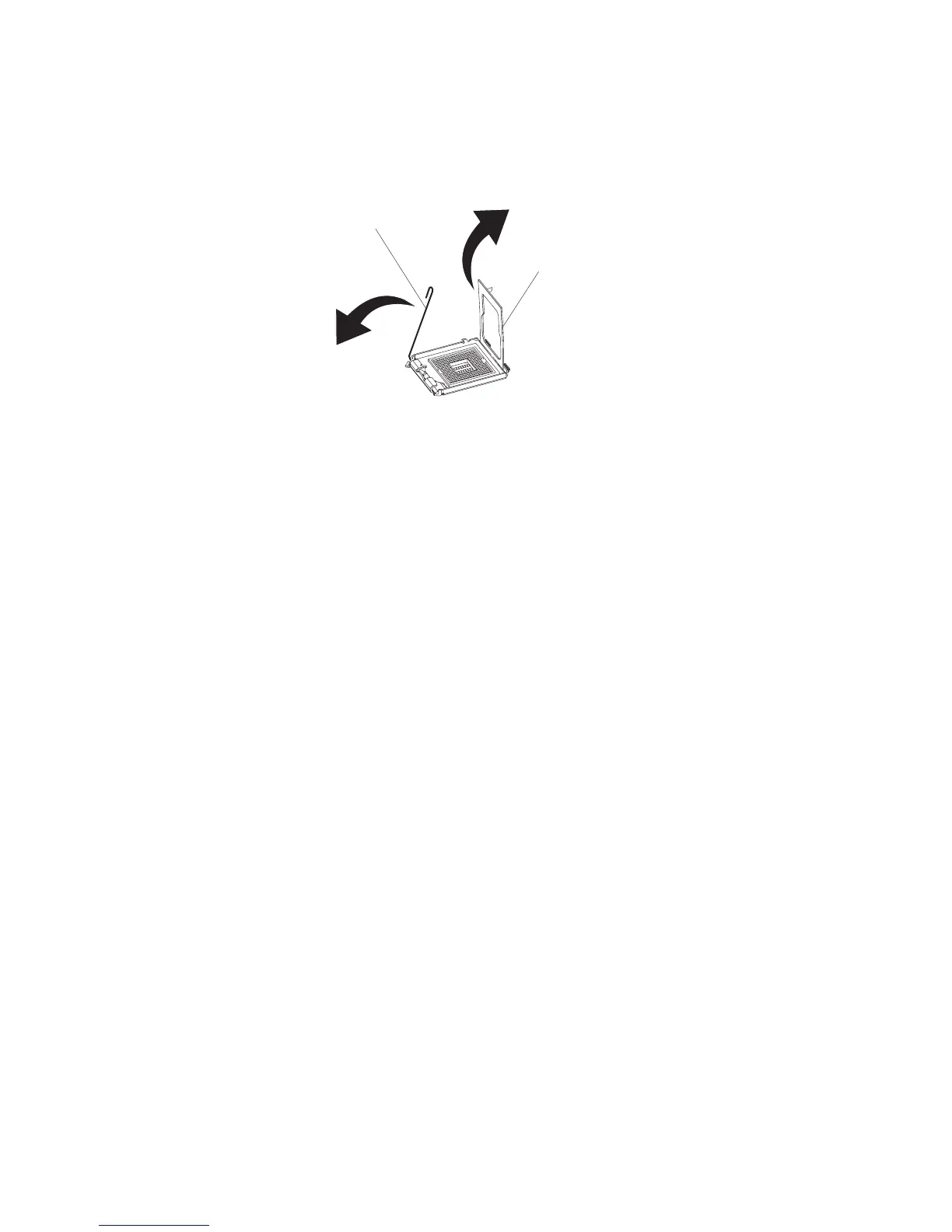

7. Release the microprocessor retention latch by pressing down on the end,
moving it to the side, and slowly releasing it to the open (up) position.
Microprocessor
bracket frame
Microprocessor
retention latch
8. Open the microprocessor bracket frame by lifting up the tab on the top edge.
9. Carefully lift the microprocessor straight up and out of the socket, and place it
on a static-protective surface.
10. If you are instructed to return the microprocessor and fan sink, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
110 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide
