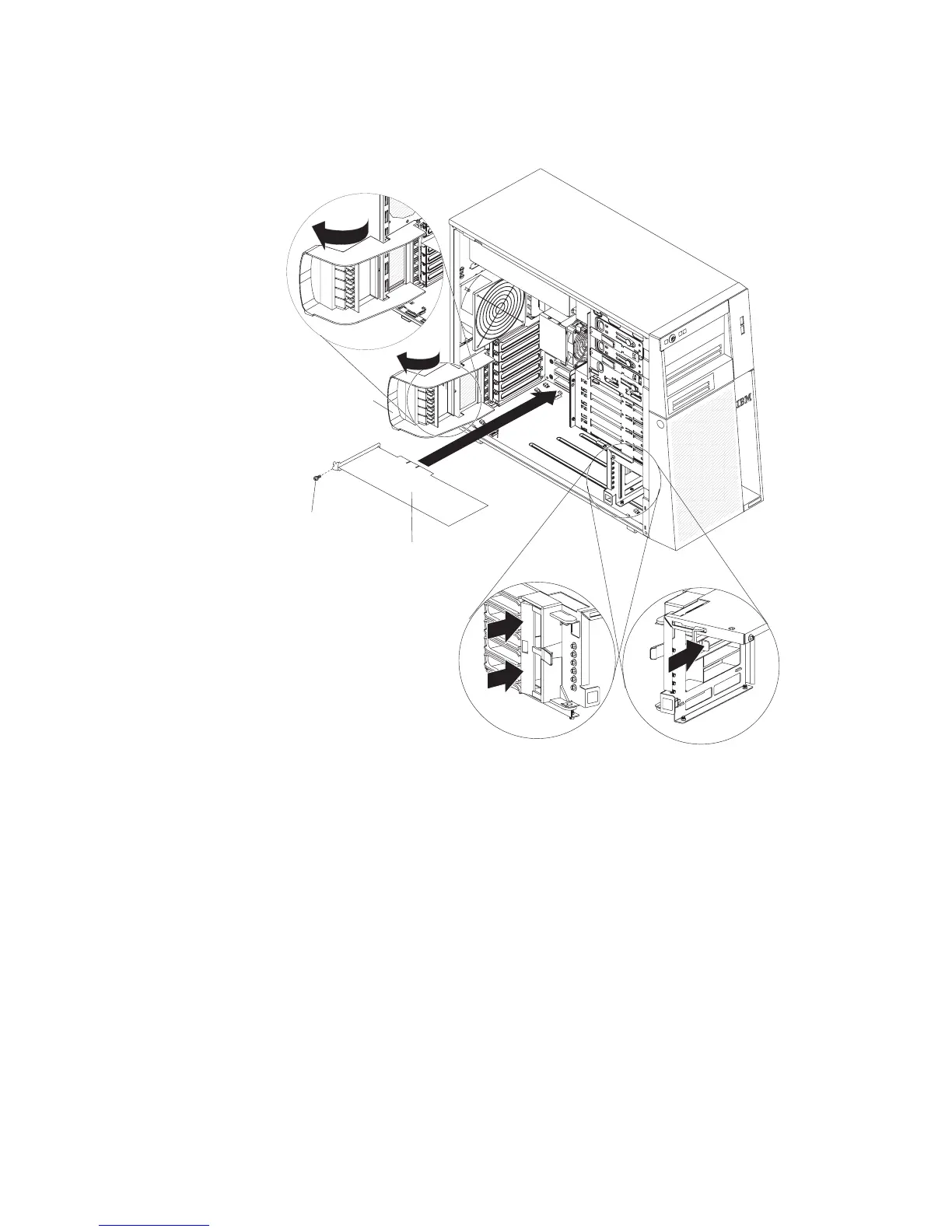

the expansion slot. For a full-length adapter, make sure that the front edge of
the adapter is correctly seated in the correct slot in the front adapter-retention
bracket.
Left side
Right side
Front adapter
retention bracket
Adapter
Expansion-slot
screw
Rear adapter
retention
bracket
6. Install an expansion-slot screw at the rear of the adapter.
7. If you are installing a full-length adapter, press on the release lever on the right
side of the front adapter-retention bracket to release the retaining tab on the
left side of the bracket.
8. Connect required cables to the adapter. Route cables so that they do not block
the flow of air from the fans.
9. Install and lock the side cover (see “Installing the side cover” on page 53).
10. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
60 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
