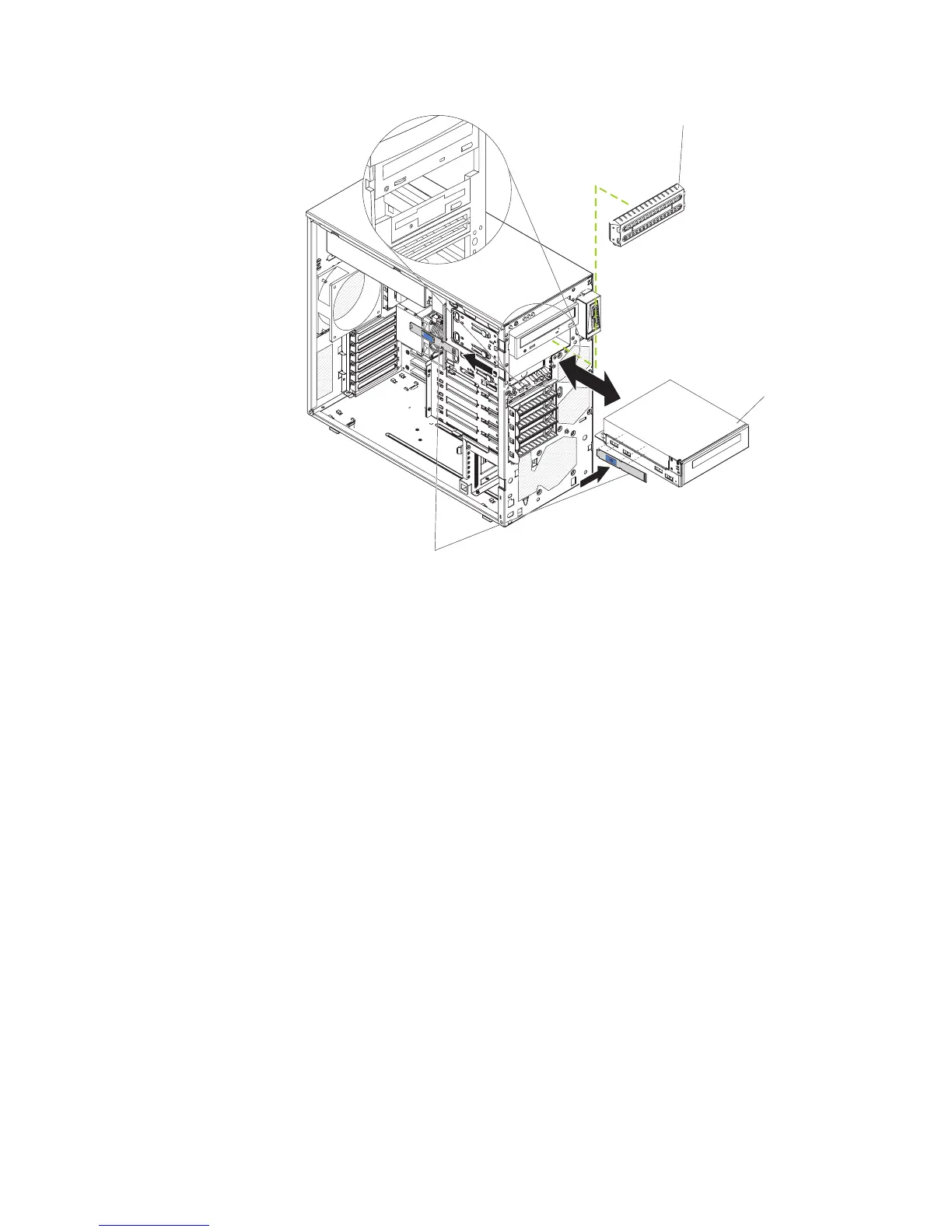

Tape drive
EMC shield
Drive retainer clip
10. Push the drive into the bay.
Note: A tape drive can be installed in bay 1 or bay 2
11. Connect one end of the applicable signal cable into the rear of the drive and
make sure that the other end of this cable is connected into the applicable
connector on the system board.
12. Route the signal cable so that it does not block the airflow to the rear of the
drives or over the microprocessor and dual inline memory modules (DIMMs).
13. If you have another drive to install or remove, do so now.
14. Connect the power cable to the rear of the drive. The connectors are keyed
and can be inserted only one way.
Removing a hot-swap hard disk drive
This procedure applies only to server models that have hot-swap hard disk drives.
Attention: To maintain proper system cooling, do not operate the server for more
than 10 minutes without either a drive or a filler panel installed in each drive bay.
To remove a hot-swap hard disk drive, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 47.
Note: You do not have to turn off the server to remove hot-swap drives from
the hot-swap drive bays.
2. Unlock the side cover. The side cover does not have to be removed.
3. Remove the lower bezel (see “Removing the lower bezel” on page 54).
4. Rotate the drive tray handle of the drive assembly that is to be removed to the
open position (based on your model).
Chapter 4. Removing and replacing server components 67
