IBM x3200 M2 Type 4367 User Manual

Removing a simple-swap hard disk drive
This procedure applies only to server models that have simple-swap SATA hard disk
drives.
Attention: Simple-swap hard disk drives are not hot-swappable. Disconnect all
power from the server before you remove or install a simple-swap hard disk drive.
To remove a simple-swap hard disk drive, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 47.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock the side cover. The side cover does not have to be removed.
4. Remove the lower bezel (see “Removing the lower bezel” on page 54).

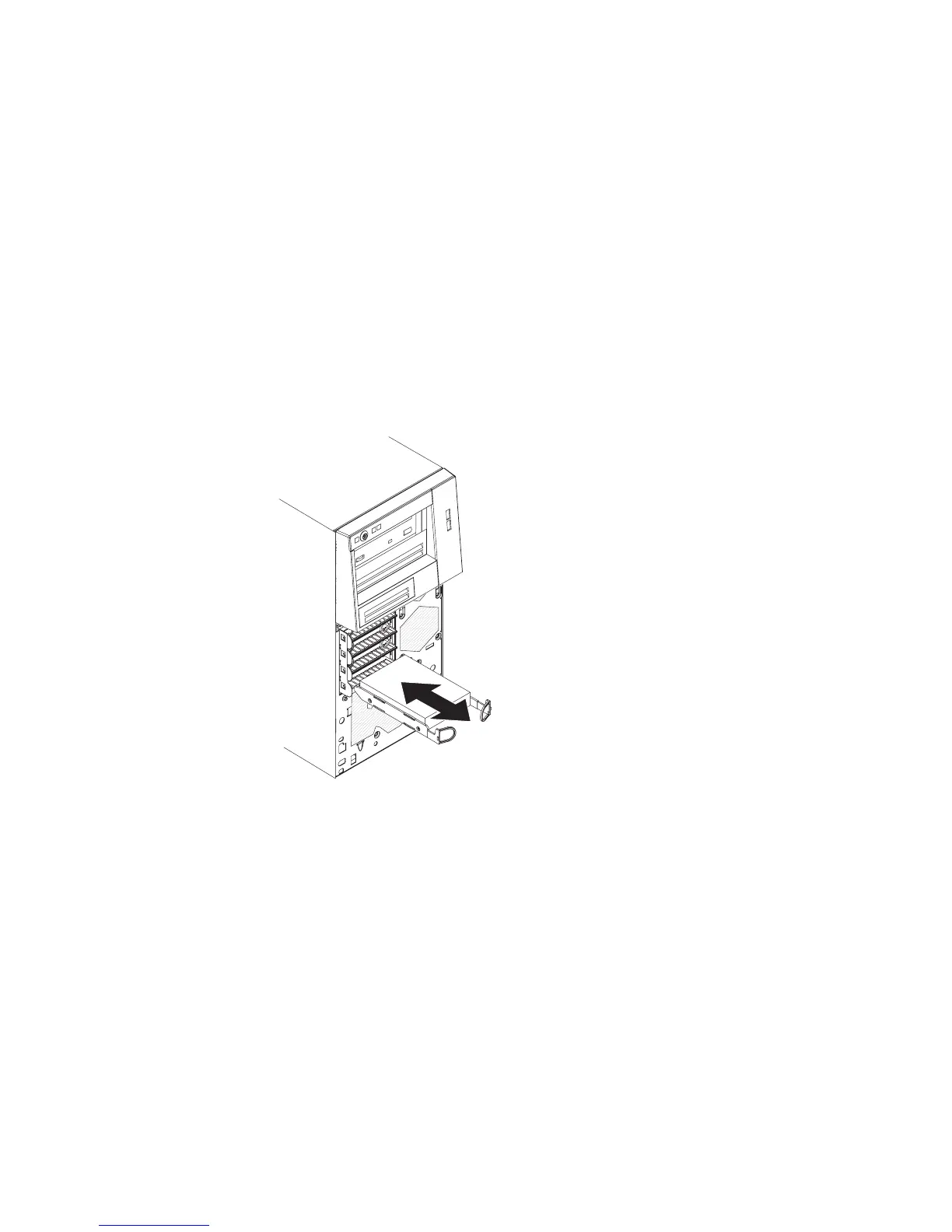

5. Pull the loops of the drive assembly that is to be removed toward each other;
then, pull the assembly out of the bay.
6. If you are instructed to return the drive assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
70 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide

IBM x3200 M2 Type 4367 Specifications

General

Processor	Intel Xeon 3000 Sequence, Intel Core 2 Duo, Intel Pentium Dual-Core
Memory Slots	4 DIMM slots
Chipset	Intel 3200
Storage Controller	Integrated SATA controller
Form Factor	Tower
Memory	Up to 8GB DDR2
Storage	SATA
Hard Drive Bays	4
RAID Support	RAID 0, 1
Network Controller	Integrated Broadcom Gigabit Ethernet
Expansion Slots	1 PCI-Express x8, 1 PCI-Express x1, 2 PCI
Power Supply	400W fixed
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor Cores	Dual-core, Quad-core (Xeon 3200 series)
