10
SC
2210 Electronic Thermostat
24 VAC, Return
Compressor Contactor
Reversing Valve (Heating Mode)
Fan Contactor Circuit
2nd Stage Heating Circuit
System Monitor LED
24 VAC, Common
R
Y
B
G
W2
L
X
O

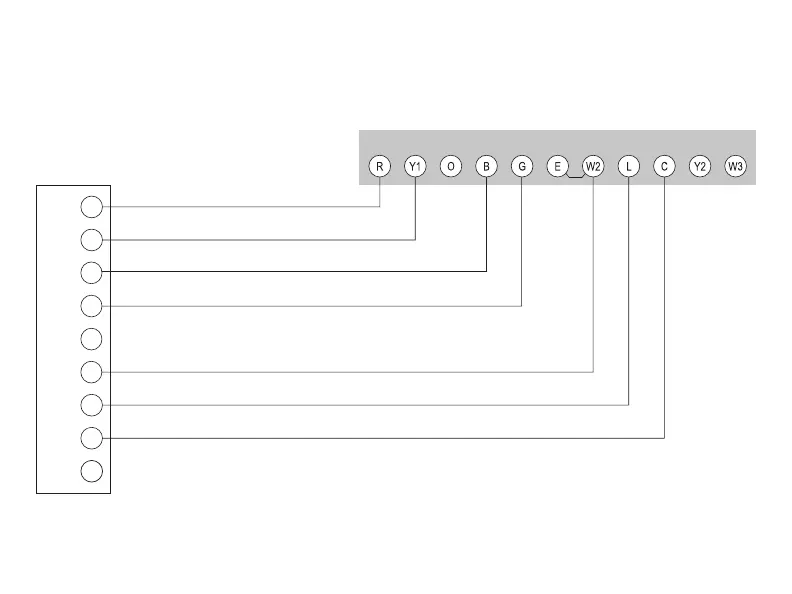

Rheem/Ruud PGB, PFA, PCB, PLA, PKA
Low Voltage Terminal Board
SimpleComfort
®
2210 Electronic Thermostat Conversion to:
Rheem/Ruud: -PGB, -PFA, -PCB, -PLA, and -PKA Series Heat Pump Systems
