ICM Controls SC 2210 - York -E1 CS, -E1 FB, -E1 Fh Heat Pump Systems

12
SC 2210 Electronic Thermostat
SimpleComfort
®

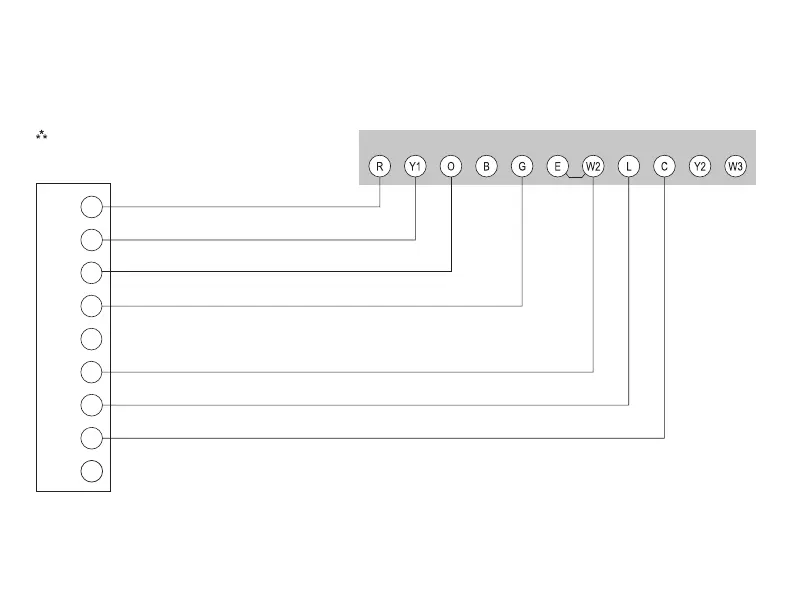

2210 Electronic Thermostat Conversion to:
York -E1CS, -E1FB, -E1FH Heat Pump Systems
R
Y
O
G
W
X
B
24 VAC, Return
Compressor Contactor
Reversing Valve (Cooling Mode)
Fan Contactor Circuit
2nd Stage Heating Circuit
System Monitor LED
24 VAC, Common
York -E1CS, -E1FB, -E1FH
Low Voltage Terminal Board
Note 1: E and W2 terminals jumpered at thermostat.
