ICM Controls SC 2210 User Manual

11
SC 2210 Electronic Thermostat
R
Y
O
G
X2
W-U
B
T
SimpleComfort
®

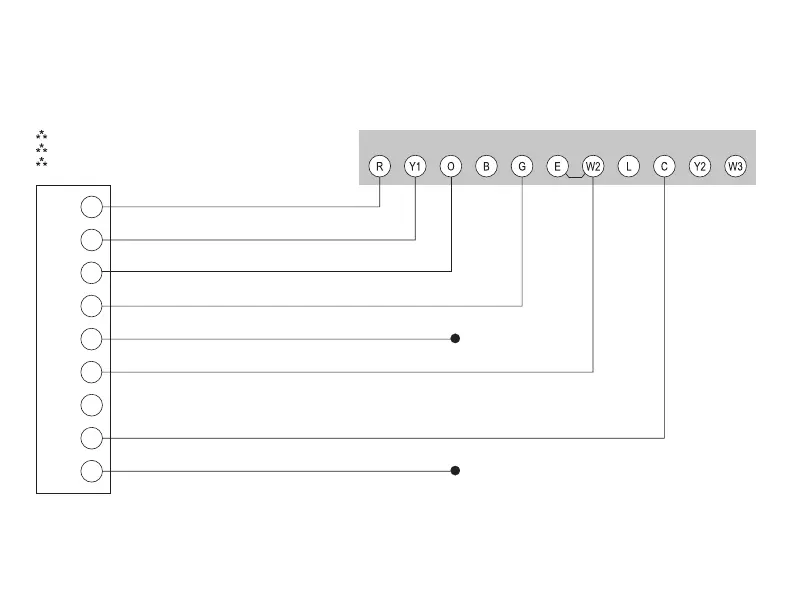

2210 Electronic Thermostat Conversion to:
Goodman, Janitrol, Trane/American Standard Heat Pumps
24 VAC, Return
Compressor Contactor
Reversing Valve (Cooling Mode)
Fan Contactor Circuit
2nd Stage Heating Circuit
24 VAC, Common
Goodman, Janitrol, Trane/American Standard
Low Voltage Terminal Board
Note 1: E and W2 terminals jumpered at thermostat.
Note 2: X2 terminal capped at PCB.
Note 3: T terminal capped at PCB.
(capped)
(capped)
