9
1
ST
Cool 2
ND
Cool 1
ST
Heat 2
ND
Heat
Heat/Cool Y1,G YI,Y2,G W1,G* W1,W2,G*
Heat Pump (One Compressor) Y1,G,O Y1,G,O Y1,G,B Y1,W2,G,B
Heat Pump (Two Compressors) Y1,G,O Y1,Y2,G,O Y1,G,B Y1,Y2,G,B
Emergency Heat (Heat Pump Only) N/A N/A W2,G W2,G
* G not energized when configured as a gas/oil system

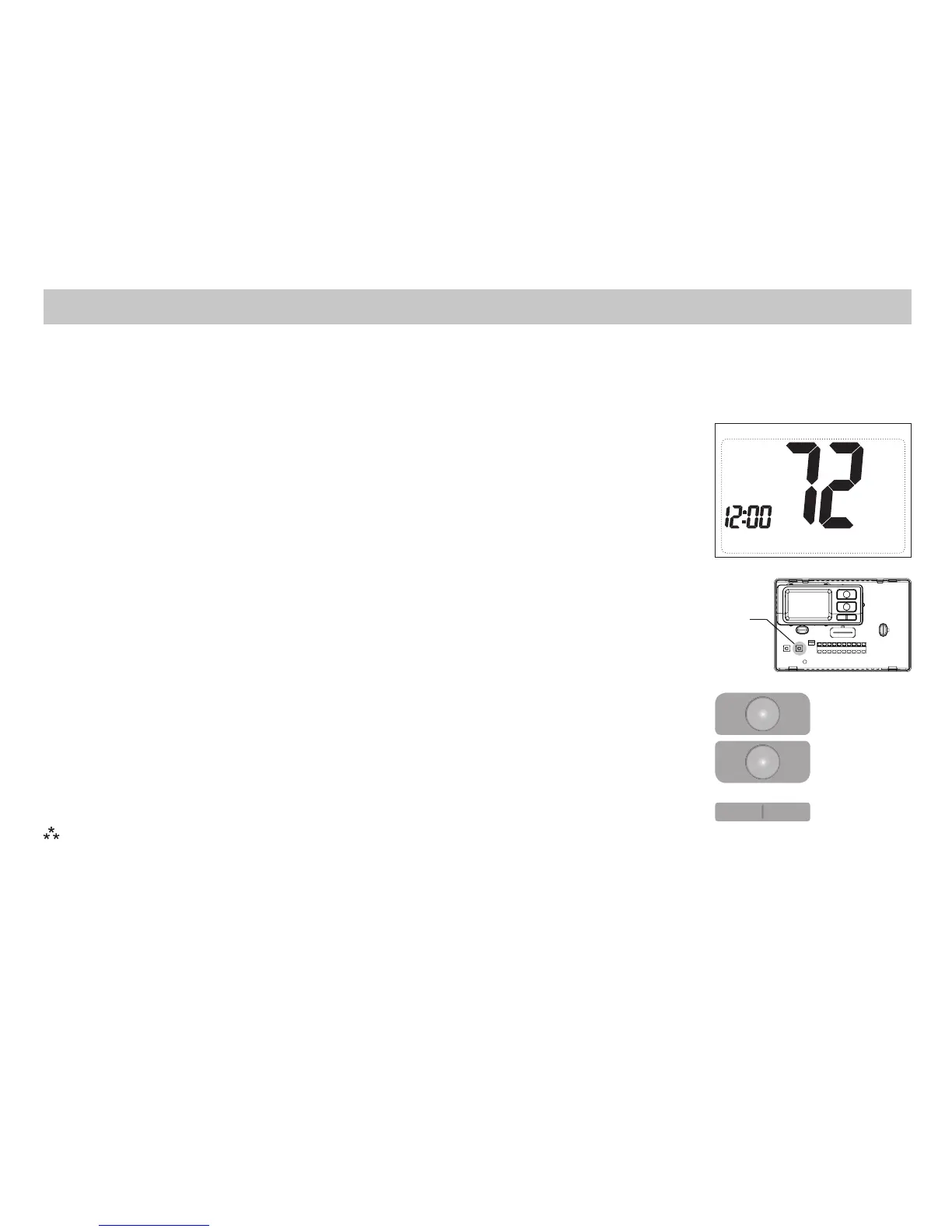

Conguration Mode
OFF
PM
1. Verify the SC5811 is in the OFF mode.
Press the SYS (left) button until off mode displays.
2. Remove the cover of the thermostat by gently pulling near one of the
corners at the top of the thermostat.
3. Press the CONFIG button for 1 second while the SC5811 is in OFF mode.
To exit configuration mode, press the CONFIG switch for 1 second.
Press the up or down button to change settings within each screen.
Down
button
Up
button
Press the right button to advance to the next screen.
Note: Pressing the
left
button will return you to the previous screen.
Left
button
Right
button
The configuration mode is used to set the SC5811 to match your heating/cooling system. The SC5811
functions with heat pump, air conditioning, gas, oil or electric heat systems.
To configure the SC5811, perform the following steps:
CONFIG
S1 S2 R C W
O/B
GY1 W2 W3Y2
RESET CONFIG
FP
To Next Page
