REMOTE CONTROL
Remote control (CI-V) information

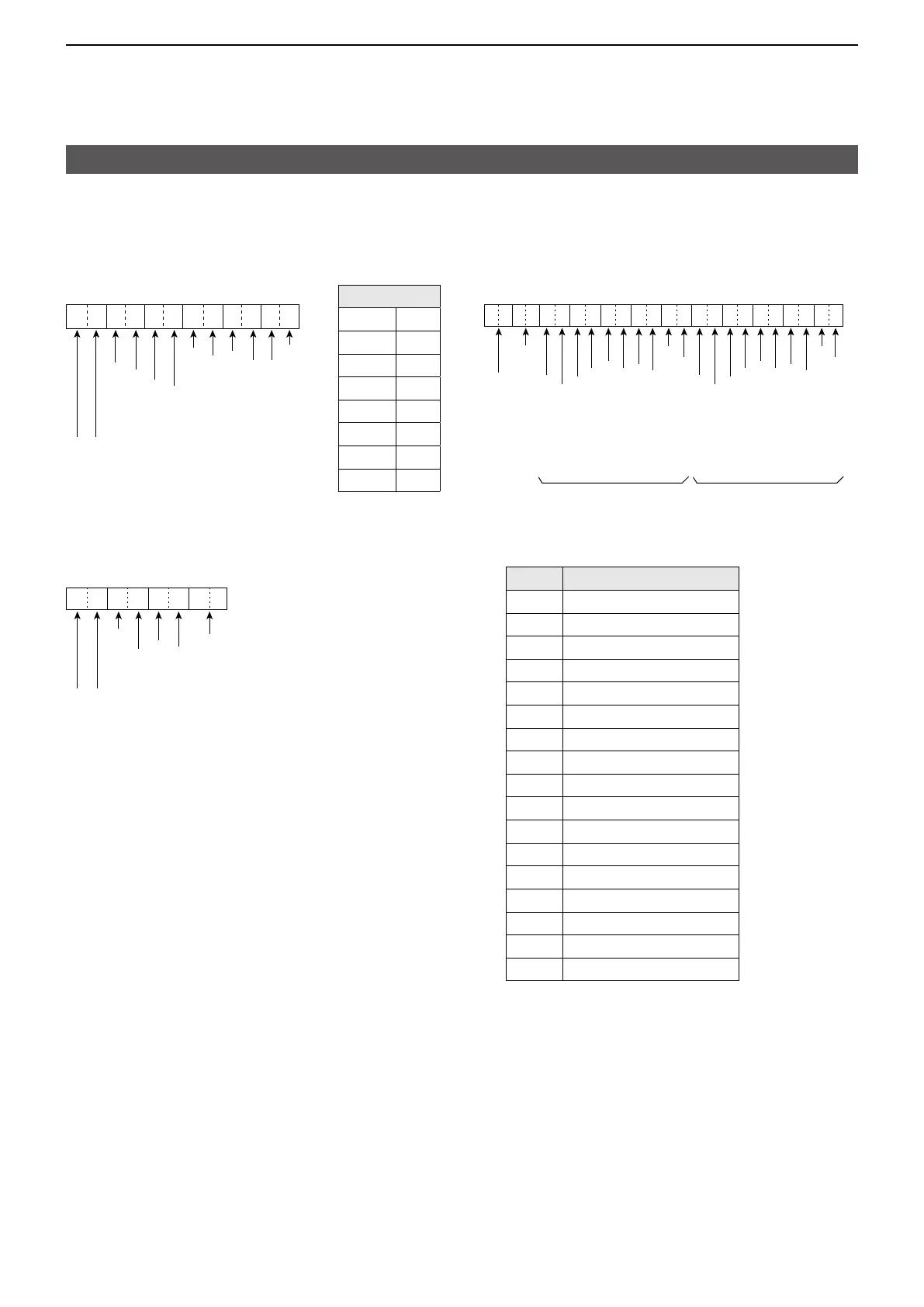

D Command formats
• Scope span settings (in the Center mode Scope)
Command: 27 15
0 0 0 0 X X X X 0 0 0 0
1
1 kHz digit: 0, 2, 5 100 Hz digit: 0, 5 100 kHz digit: 0, 1, 2, 5 10 kHz digit: 0, 1, 2, 5 10 Hz digit: 0 (Fixed) 1 Hz digit: 0 (Fixed) 10 MHz digit: 0 (Fixed) 1 MHz digit: 0 (Fixed) 1 GHz digit: 0 (Fixed) 100 MHz digit: 0 (Fixed)
2 3 4 5 6
0 (Fixed) 0 (Fixed)
Span (kHz)
2500 2�5
5000 5
10000 10
25000 25
50000 50
100000 100
250000 250
500000 500
• Scope Reference level settings
Command: 27 19
X X X X X 0 X X
00= + (plus)
01= – (minus)
10 dB digit: 0, 1, 2 1 dB digit: 0
~ 9
0�1 dB digit: 0, 5 0�01 dB digit: 0 (Fixed) 0 (Fixed) 0 (Fixed)
Adjustable range: –20�0 dB ~ +20�0 dB
in 0�5 dB steps�
• Scope Fixed edge frequency settings
Command: 27 1E
1
0 XX X X
2 3 4 5 6 7 8 9   
X X X X X X X 0 X X X X X X X X X 0 X
10 Hz digit: 0 ~ 9
1 Hz digit: 0
~ 9
1 kHz digit: 0
~ 9
100 Hz
digit: 0
~ 9
100 kHz
digit: 0
~ 9
10 kHz
digit: 0
~ 9
10 MHz
digit: 0
~ 9
1 MHz digit: 0
~ 9
1 GHz digit: 0
(Fixed)
100 MHz
digit: 0 ~ 4
10 Hz digit: 0 ~ 9
1 Hz digit: 0
~ 9
1 kHz digit: 0
~ 9
100 Hz
digit: 0
~ 9
100 kHz
digit: 0
~ 9
10 kHz
digit: 0
~ 9
10 MHz
digit: 0
~ 9
1 MHz digit: 0
~ 9
1 GHz digit: 0
(Fixed)
100 MHz digit: 0 ~ 4
Frequency range
Lower edge Higher edge
Edge number: 01
~ 03
LEntry of 100 Hz less than digits are ignored�
1 Selectable Frequency ranges:
Data Frequency range (Hz)
01 0�03 ~ 1�60
02 1�60 ~ 2�00
03 2�00 ~ 6�00
04 6�00 ~ 8�00
05 8�00 ~ 11�00
06 11�00 ~ 15�00
07 15�00 ~ 20�00
08 20�00 ~ 22�00
09 22�00 ~ 26�00
10 26�00 ~ 30�00
11 30�00 ~ 45�00
12 45�00 ~ 60�00
13 60�00 ~ 74�80
14 74�80 ~ 108�00
15 108�00 ~ 137�00
16 137�00 ~ 200�00
17 400�00 ~ 470�00
2 Selectable Edge number: 01=1, 02=2, 03=3
