Icom IC-A15S User Manual

D AD-106 installation

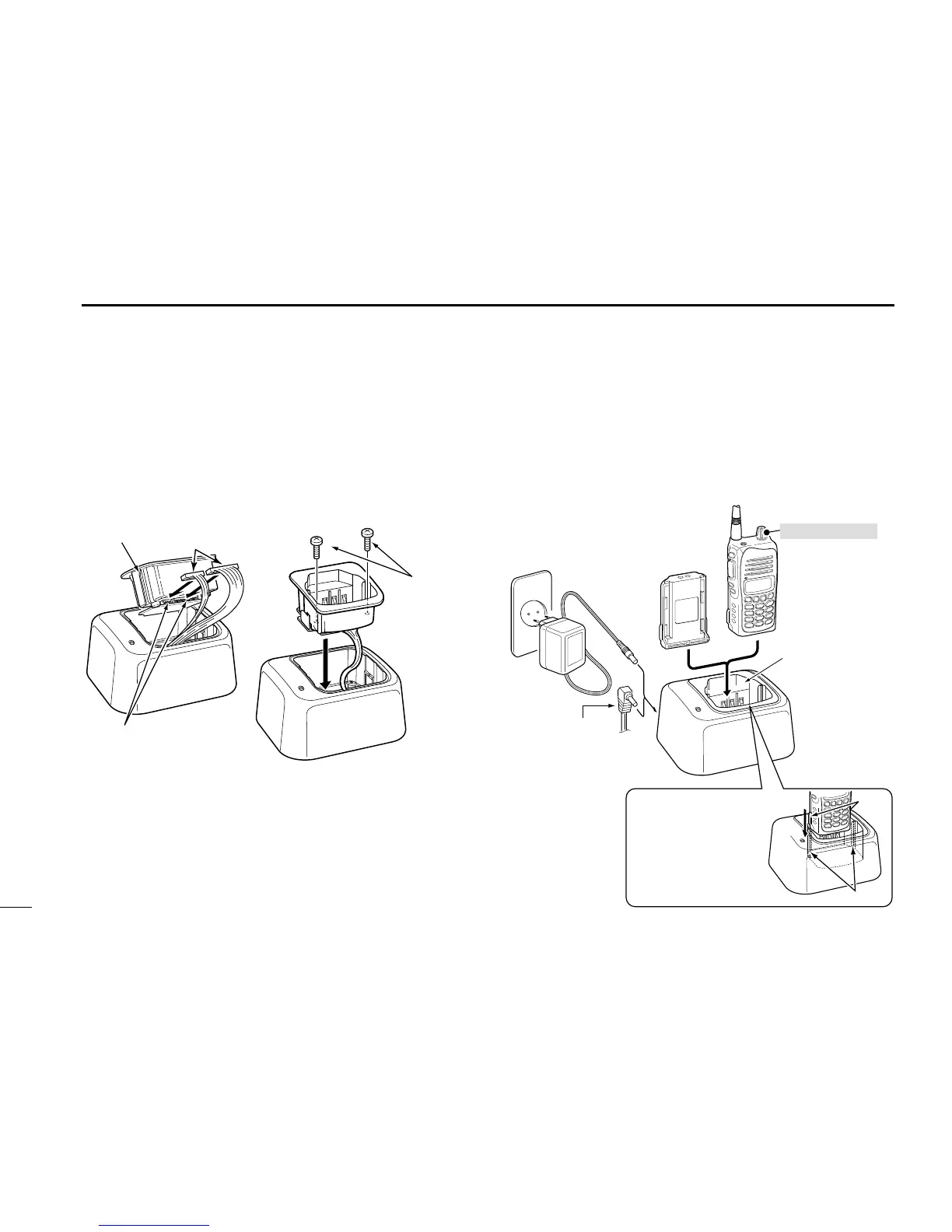

 Connect the BC-119N/BC-121N (q), then install the
AD-106 into the holder space of the BC-119N/BC-121N
with the supplied screws (w).
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-106 charger adapter.
• An AC adapter (may be supplied with BC-119N depending on ver-
sions) or the DC power cable (OPC-515L).
27
7
BATTERY PACKS
Screws
(supplied with
AD-106)
AD-106
Connectors
Plugs
q
w
AD-106 charger
adapter is installed
in BC-119N.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) can be used
instead of the AC
adapter.
Transceiver
Battery
pack
Turn power OFF
IMPORTANT!:
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Lobes
Guide rails
