Icom IC-M220 Service Manual

SECTION 3 DISASSEMBLY INSTRUCTIONS
3-1

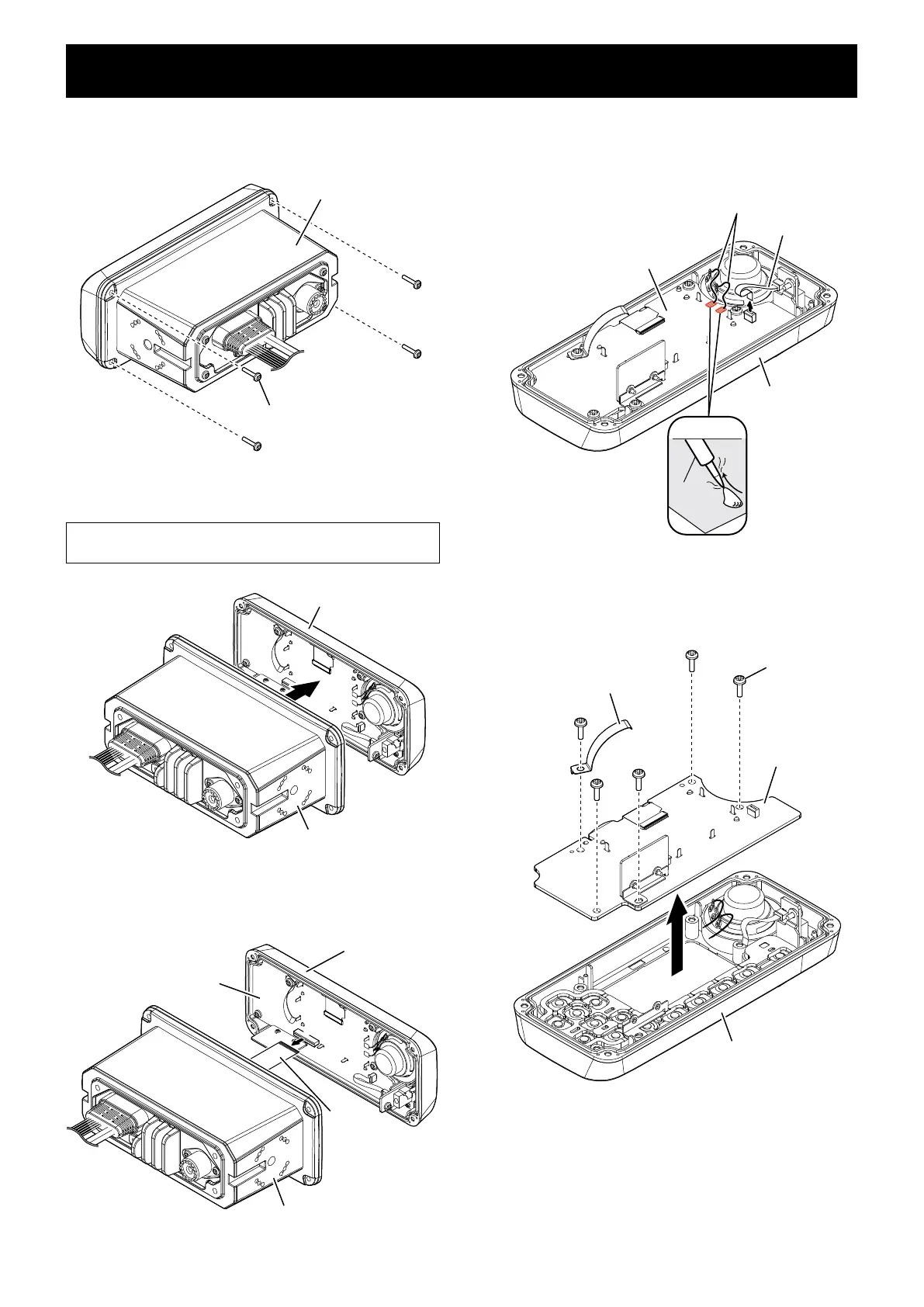

1. REMOVING THE FRONT PANEL
1) Remove the 4 screws from the case.
2. REMOVING THE LOGIC UNIT
1) Unsolder the 2 points of the speaker cables, and
disconnect the flat cable from the LOGIC UNIT.
2) Separate the front panel from the case.
BE CAREFUL about the flat cable when separating the
front panel from the case.
3) Disconnect the flat cable from the LOGIC UNIT.
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
J1
Screws ×4
Front panel
Front panel
LOGIC UNIT
Flat cable
Case
Case
UNSOLDER
Solder
remover
J2
Front panel
Speaker cables
Flat cable
LOGIC UNIT
Front panel
LOGIC UNIT
Screws ×5
Earth spring
Case
2) Remove the 5 screws, and then remove the LOGIC
UNIT and the earth spring from the front panel.
