PANEL DESCRIPTION

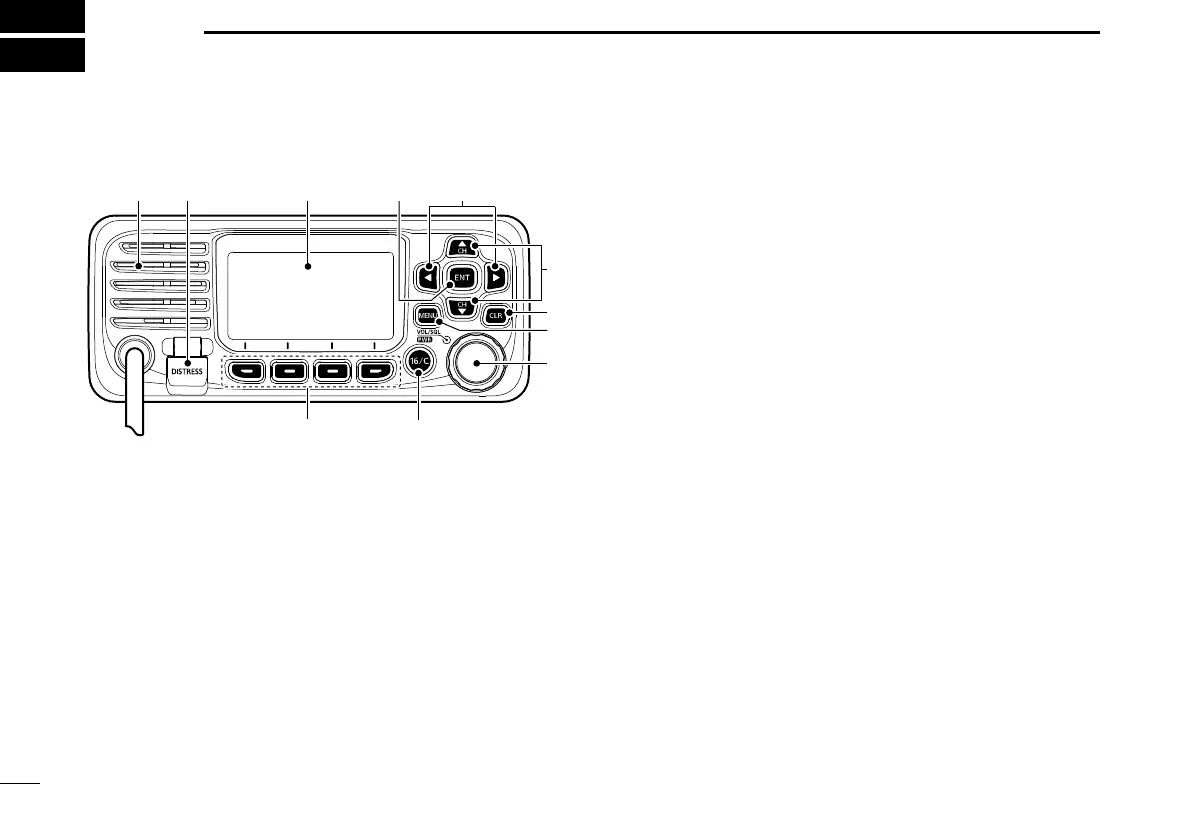

■ Front Panel
t
u
y
w
io
e
r
q
Function display (p.3)Speaker
1DISTRESS KEY [DISTRESS]
Hold down for 3 seconds to transmit a Distress call.
2ENTER KEY [ENT]
Push to set the entered data, selected item, and so on.
3LEFT/RIGHT KEYS [◄]/[►]
z Push to scroll the Software Key functions. (pp. 4 ~ 5)
z Push to select a character or number in the entry
mode.
4UP/DOWN KEYS [▲]/[▼]
z Push to select an operating channel, Menu items,
Menu settings, and so on. (pp. 4)
z Push to select a character or number in the entry
mode. (pp. 7, 8, 14, 18, 20)
5CLEAR KEY [CLR]
Push to cancel the entered data, or to return to the
previous screen.
6MENU KEY [MENU]
Push to display or close the Menu screen.
7POWER/VOLUME/SQUELCH SWITCH [PWR/VOL/
SQL
]
(Also described as [DIAL] in this manual.)
z Hold down for 1 second to turn the transceiver ON or
OFF.
z Rotate or push once to display the volume level setting
screen, then rotate to adjust the volume level. (p. 11)
z Push twice to display the squelch level setting screen,
then rotate to adjust the squelch level. (p. 11)
z On the Menu screen, rotate to select an item. (p. 47)
z In the entry mode, push to select a character or
number, or rotate to move the cursor. (p. 7, 14, 18, 20)
8CHANNEL 16/CALL CHANNEL KEY [16/C]
z Push to select Channel 16. (p. 9)
z Hold down for 1 second to select the Call channel.
(p. 9)
9SOFTWARE KEYS (pp.4 ~ 5)
Scroll the key functions pushing [◄] or [►], then push
either of the 4 software keys to select the function
displayed at the bottom of the display.
