Icom IC-M803 - Page 46

7-2
REF PART
DESCRIPTION QTY.
NO. NO.
REF PART
DESCRIPTION QTY.
NO. NO.
[DC-DC UNIT]
[VOL UNIT]
†
Sold as an option.
*: Refer to “BOARD LAYOUTS” for the location.
Screw abbreviations
A, B0, BT: Self-tapping PH: Pan head BS: Brass NI: Nickel ZU: Zinc SUS: Stainless

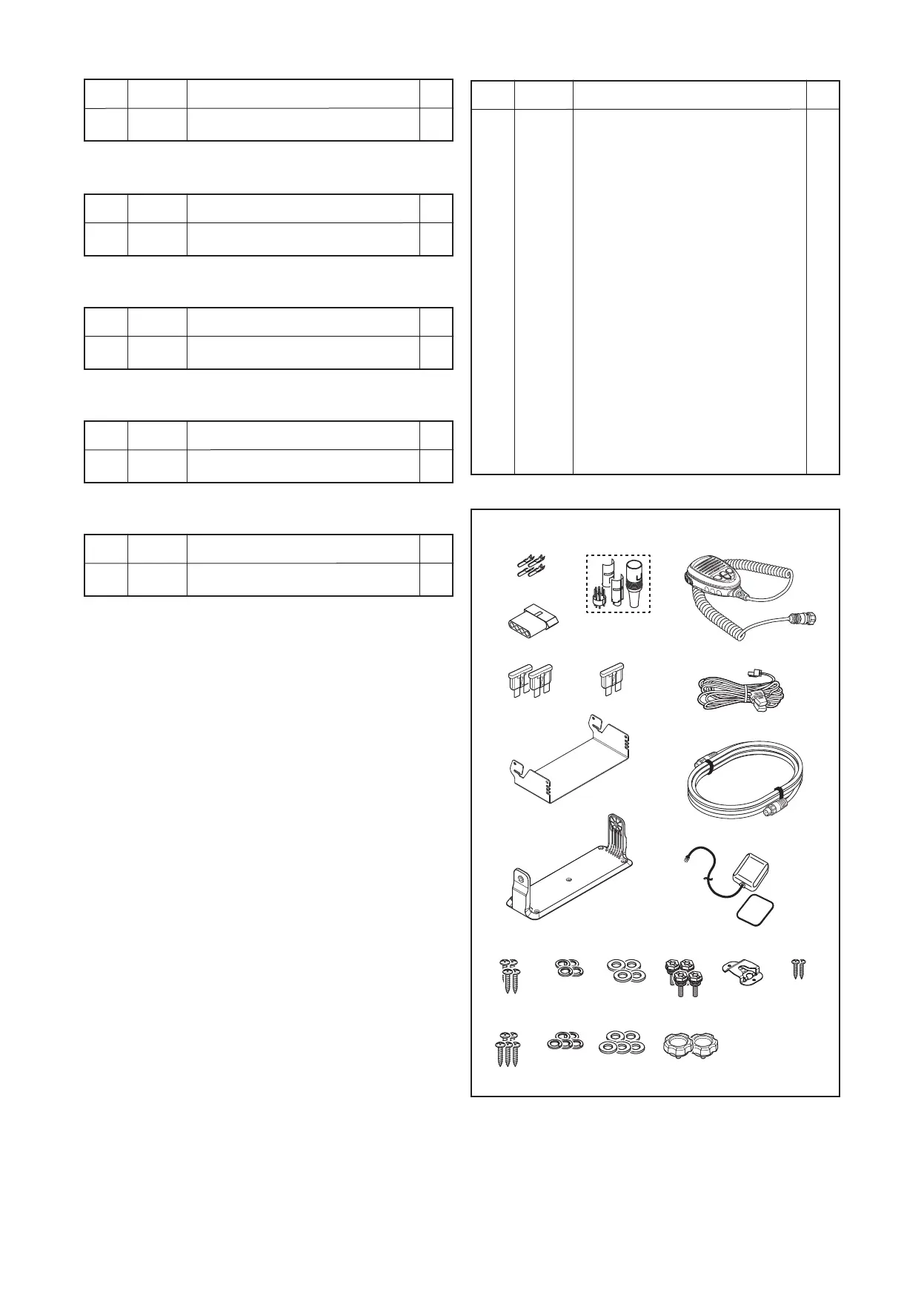

[SUPPLIED ACCESSORIES]
[MIC UNIT]
[JACK UNIT]
J1001 6510002030 1380TL 4
J1002 6450001281 TCP0587-715467 1
P1001 6510001930 1490P1 1
F1001 5210000841 ATC 30-1 2
F1002 5210001430 11930011 (BFLP 5A 58V) 1
MC1001 − HM-214H 1
W1001 8900022470 OPC-2406 1
W1002 8920003250 CAB-1391 1
EP1001 0800016040 AA.162.501111.IB 1
MP1001 8010018981 2429 BRACKET-1 1
MP1002 8810001490 PH A M5×20 SUS 4
MP1003 8850000500 S-WASHER M5 SUS 4
MP1004 8850000180 FLAT WASHER M5 SUS 4
MP1005 8810009300 SET SCREW (J) 4
MP1006 8950007250 3054 MIC HANGER 1
MP1007 8810004700 PH A M3×16 SUS 2
MP1008 8010023430 3715 MOBILE BRACKET 1
MP1009 8810001490 PH A M5×20 SUS 5
MP1010 8850000500 S-WASHER M5 SUS 5
MP1011 8850000180 FLAT WASHER M5 SUS 5
MP1012 8820001460 3054 KNOB BOLT 2
J1001
P1001
F1001
MC1001
W1002
MP1001
MP1002 MP1007MP1006MP1004MP1003 MP1005
MP1008
W1001
F1002
J1002
MP1009 MP1011 MP1012
EP1001
MP1010
S8501 2250000930 ED09D21MFB14.5A6C102016 1
REF PART
DESCRIPTION QTY.
NO. NO.
REF PART
DESCRIPTION QTY.
NO. NO.
REF PART
DESCRIPTION QTY.
NO. NO.
J8561 6510030290 ICOM-CCBPM08MCC 1
J8602 6450001630 HSJ1406-01-050 1
MP9671* 8510019780 3183 A-MAIN CASE 1
[DIAL UNIT]
REF PART
DESCRIPTION QTY.
NO. NO.
S8501 2250000930 ED09D21MFB14.5A6C102016 1
