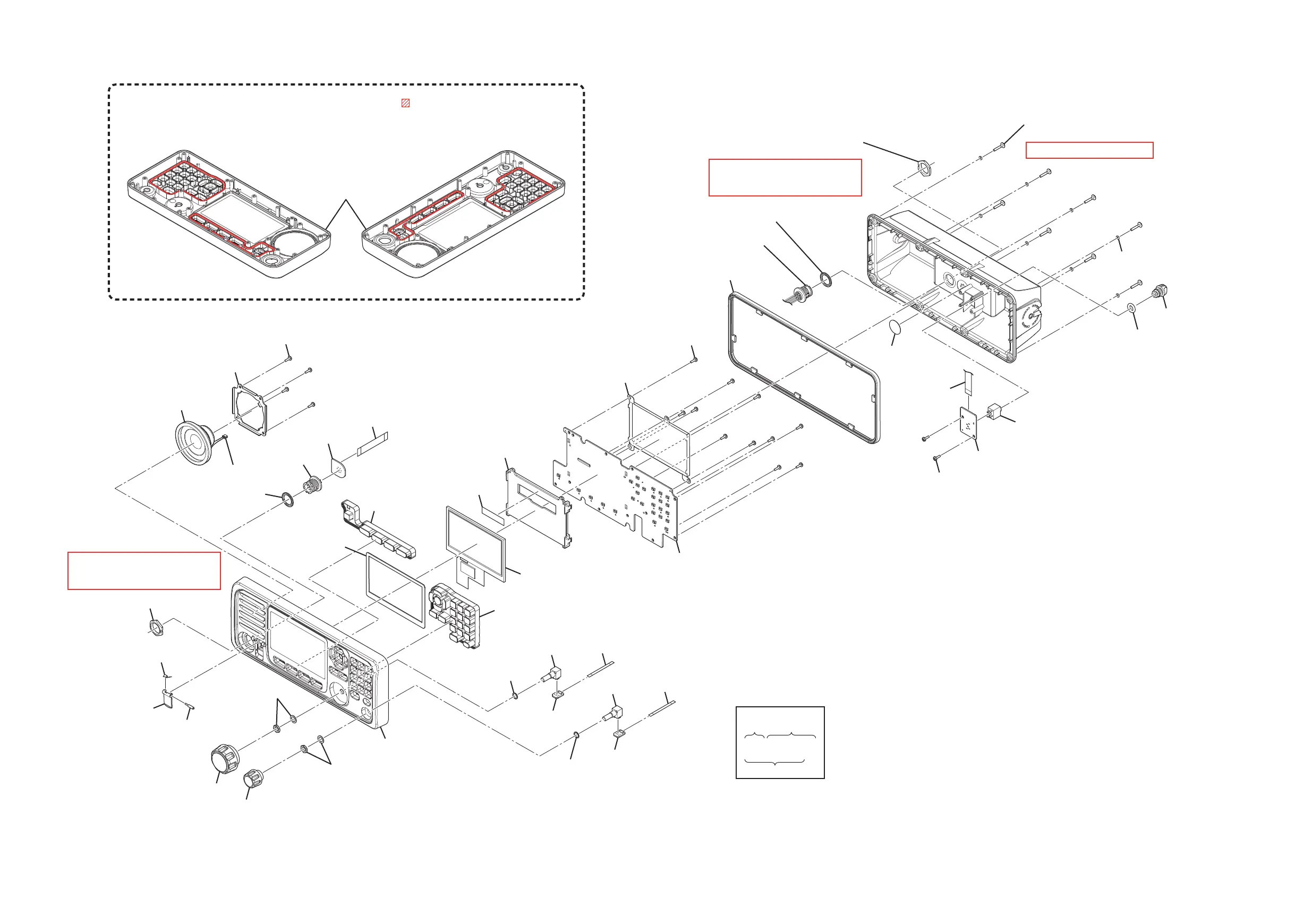

MP8001 (FRONT)
Apply the grease to the following area ( ) of the front panel
Used grease: G501 (80G) SHINETSU (8950002750)
VOL UNIT
LOGIC UNIT
JACK UNIT
MP8001 (FRONT)
(8210034770)
MP8004 (FRONT)
(8610015670)
MP8028 (FRONT)
(8510021640)
SP8001 (FRONT)
(2510002060)
W8002 (FRONT)
(8910000070)
W8003 (FRONT)
(8910000070)
W8004 (FRONT)
(8900018000)
W8005 (FRONT)
(8900015120)
W8006 (FRONT)
(8920003260)
W8007 (FRONT)
(8920001660)
Nut
(Comes with W8007 (FRONT))
Nut
(Comes with J8561 (MIC))
Washer
(Comes with J8561 (MIC))
Washer
(Comes with W8007 (FRONT))
MP8003 (FRONT)
(8930092130)
MP8007 (FRONT)
(8610015630)
MP8008 (FRONT)
(8930091880)
MP8009 (FRONT)
(8930091890)
MP8010 (FRONT)
(8930092250)
MP8012 (FRONT)
(8510021570)
MP8013 (FRONT)
(8930092350)
MP8014 (FRONT)
(8310084000)
MP8015 (FRONT)
(8930088990)
MP8016 (FRONT)
(8930089100)
MP8017 (FRONT)
(8930069020)
MP8017 (FRONT)
(8930069020)
MP8018 (FRONT) × 11
(8810008661)
MP8019 (FRONT) × 4
(8810008661)
MP8022 (FRONT)
(8930058780)
MP8024 (FRONT) × 8
(8820001180)
MP8025 (FRONT) × 8
(8930053730)
MP8026 (FRONT)
(8930082360)
MP8027 (FRONT)
(8930082490)
MP8029 (FRONT)
(8930092550)
MP8030 (FRONT)
(8930057950)
MP8031 (FRONT) × 2
(8810008661)
DS9001 (LOGIC)
(5030004580)
S8501 (DIAL)
(2250000930)
Nut and washer
(Comes with S8501 (DIAL))
S8501 (VOL)
(2250000930)
Nut and washer
(Comes with S8501 (VOL))
J8561 (MIC)
(6510030290)
J8602 (JACK)
(6450001630)
MIC UNIT
DIAL UNIT
Tighten with:
“ICOM Driver (V)” (8960000430)
Torque: 1.0 N·m (±0.15 N·m)
Tighten with:
“ICOM Driver (V)” (8960000430)
Torque: 1.0 N·m (±0.15 N·m)
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
Torque: 0.7 N·m (±0.1 N·m)
