Icom IC-M803 - Page 48

7-4
W3003 (CHASSIS)
(8970024742)
W3008 (CHASSIS)
(8970024752)
W3020 (CHASSIS)
(8970024232)
W3023 (CHASSIS)
(8970024083)
W3025 (CHASSIS)
(8970024442)
J3001 (CHASSIS)
(6510028411)
J3003 (CHASSIS)
(6510028411)
W3001 (CHASSIS)
(8900011050)
W3002 (CHASSIS)
(8920003240)
W3006 (CHASSIS)
(8900009031)
W3007 (CHASSIS)
(8900015920)
W3010 (CHASSIS)
(8900018134)
W3011 (CHASSIS)
(8900009031)
W3012 (CHASSIS)
(8900009031)
W3022 (CHASSIS)
(8920003300)
EP3001 (CHASSIS)
(6950000710)
MP3001 (CHASSIS)
(8010018824)
MP3002 (CHASSIS)
(8110007703)
MP3003 (CHASSIS)
(8110011720)
MP3004 (CHASSIS)
(8110011730)
MF3001 (CHASSIS)
(2710001060)
MP3005 (CHASSIS)
(8930057191)
MP3006 (CHASSIS) × 4
(8930057980)
MP3007 (CHASSIS)
(8930102230)
MP3009 (CHASSIS)
(8820000530)
MP3011 (CHASSIS) × 2
(8810010670)
MP3012 (CHASSIS) × 9
(8810008661)
MP3012 (CHASSIS) × 8
(8810008661)
MP3012 (CHASSIS) × 5
(8810008661)
MP3013 (CHASSIS) × 6
(8810005771)
MP3014 (CHASSIS) × 4
(8810009991)
MP3016 (CHASSIS)
(8930058100)
MP3025 (CHASSIS) × 4
(8810007231)
MP3026 (CHASSIS)
(8810007231)
MP3027 (CHASSIS)
(8810007231)
MP3028 (CHASSIS)
(8810007231)
MP3029 (CHASSIS)
(8930102460)
BT5081 (MAIN)
(3020000110)
MP7701 (CONNECT)
(8930077910)
F6702 (PA)
(5210001430)
MP6401 (PA)
(8860001640)
Q6101 (PA)
(1560002630)
Q6201 (PA)
(1560002640)
Q6301 (PA)
(1560002670)
Q6302 (PA)
(1560002670)
Q6303 (PA)
(1560002670)
Q6304 (PA)
(1560002670)
Q6202 (PA)
(1560002640)
MP6402 (PA)
(8860001640)
MP6403 (PA)
(8860001640)
MP6404 (PA)
(8860001640)
MP3030 (CHASSIS) × 2
(8930070510)
CONNECT UNIT
MAIN UNIT
PA UNIT
FILTER UNIT
DC-DC UNIT
MP3012 (CHASSIS) × 4
(8810008661)
W3001 (CHASSIS)
(8900011050)
MP3012 (CHASSIS) × 4
(8810008661)
MP3025 (CHASSIS) × 4
(8810007231)
MP3012 (CHASSIS) × 8
(8810008661)
MP3012 (CHASSIS) × 8
(8810008661)
Nut
(Comes with
W3022 (CHASSIS))
Washer
(Comes with
W3022 (CHASSIS))
Nut and washer
(Comes with W3010 (CHASSIS))
Nut and washer
(Comes with J7751 (CONNECT))
Stud bolts
(Comes with J7721 (CONNECT))
Stud bolts
(Comes with J7711 (CONNECT))
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
Torque: 0.7 N·m (±0.1 N·m)
Torque: 0.7 N·m (±0.1 N·m)

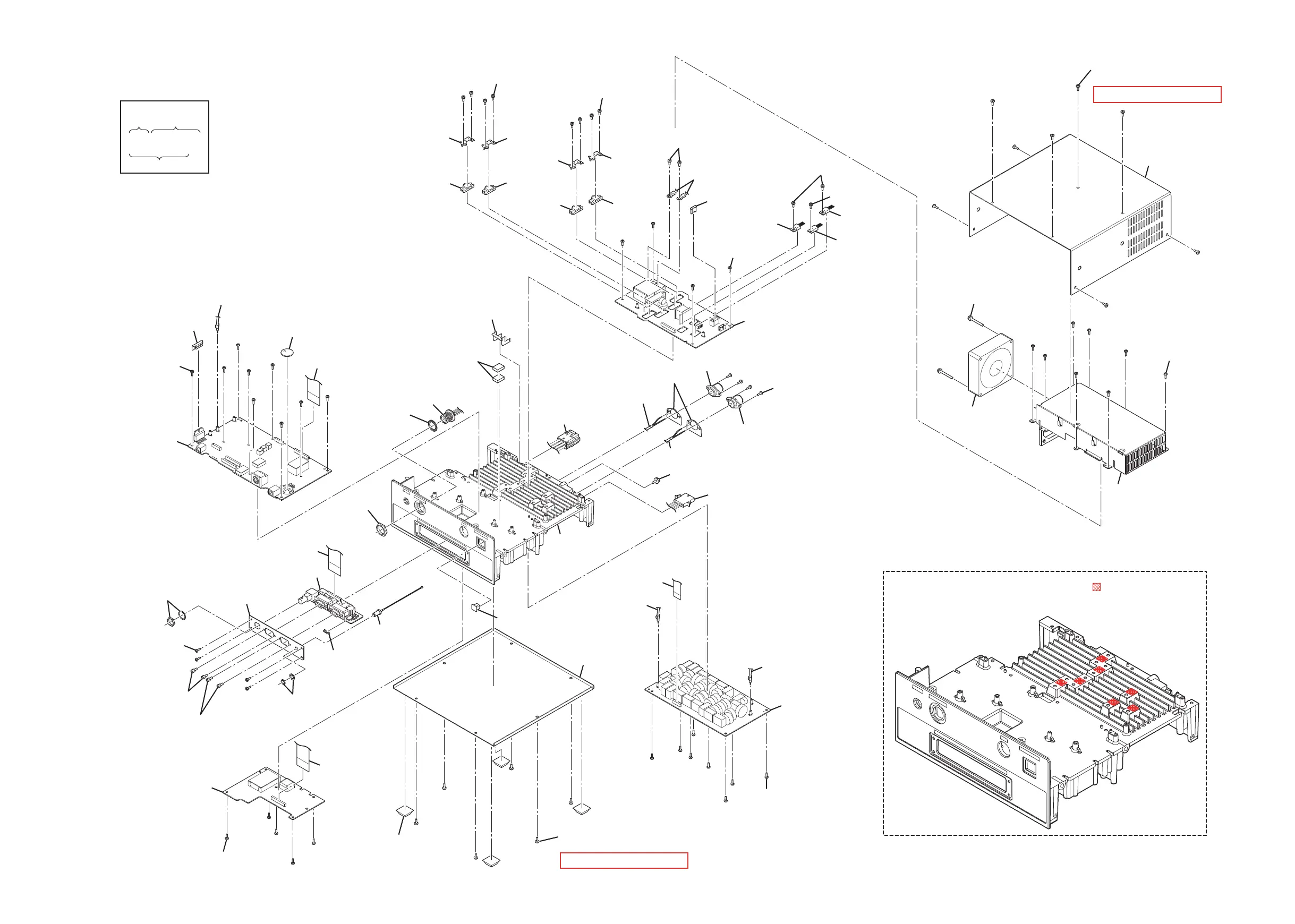

Apply the compound to the following area ( ) of the chassis
Used compound: Thermal Compound (G747) SHINETSU (8950005610)
