BAND SCOPE (Multi-function receiver/Component screens only)
10
■ Wide band scope function
The wide band scope function is available to sweep a wide
band scope (±1, 2 or 5 MHz.)
While sweeping the band scope, AF monitor function is also
available.
qRight-click the zFREQx button to call up the [Scope
(FREQ)] setting screen if it is not displayed.
wCheck the [Enable] check box in [Wide Band Scope] to en-
able the wide band scope function.
• Check the [AF Monitor] check box to monitor the receiving fre-
quency.
eClick the close ([X]) button to close the setting screen.
■ Band scope options
The following optional functions are available for the band
scope function. These settings can be defined using the
[Scope (FREQ)] screen.
● WFM Monitor function
The band scope function is normally used in AM and FM
modes only. This function allows it to be used as waveform
monitor in WFM mode.
● 1/2 sweep step function
This function sets the sweep step in half of the tuning step,
doubling the sweep resolution.
qRight-click the zFREQx button to call up the [Scope
(FREQ)] setting screen if it is not displayed.
wCheck the desired check boxes in [Option], then click the
close ([X]) button to close the setting screen.

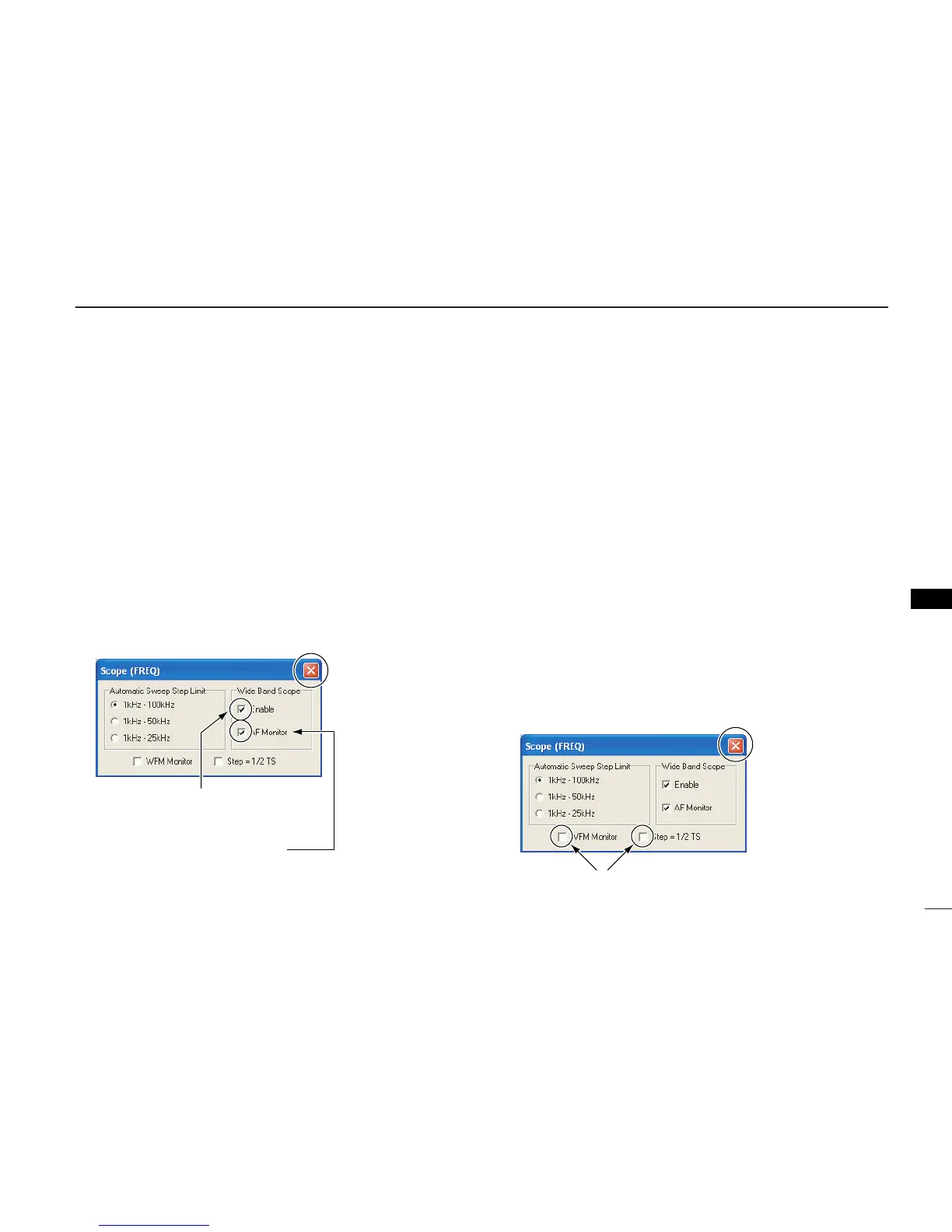

• [Scope (FREQ)] screen
w Click
q Check the check boxes.
• [Scope (FREQ)] screen
e Click
q
Check the check box to turn
[Wide Band Scope] ON.
w
Check the check box to
turn [AF Monitor] ON.
