ACCESSORY ATTACHMENT

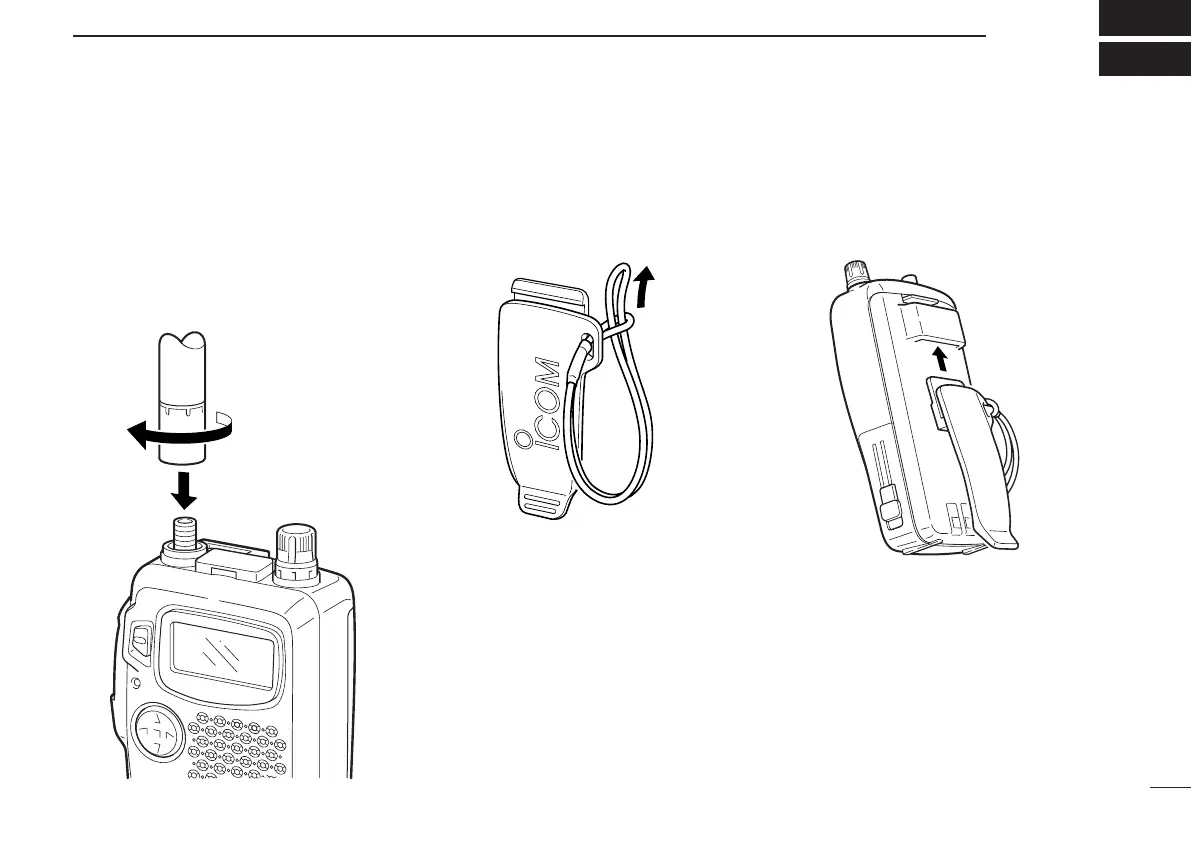

D Antenna
Screw the supplied antenna onto the
antenna connector as shown in the dia-
gram below.
Keep the jack cover attached when
jacks are not in use to avoid bad con-
tacts.
D Handstrap
Attach the handstrap to the belt clip, be-
fore attaching the belt clip to the trans-
ceiver, as below.
D Belt clip
Attach the belt clip to the transceiver as
illustrated below.
uCAUTION:
Transmitting
without the an-
tenna may dam-
age the
transceiver.
IC-T81A/E Manual-(1) 01.12.5 6:55 PM Page 1 (1,1)
