Icom IC-V8 Service Manual

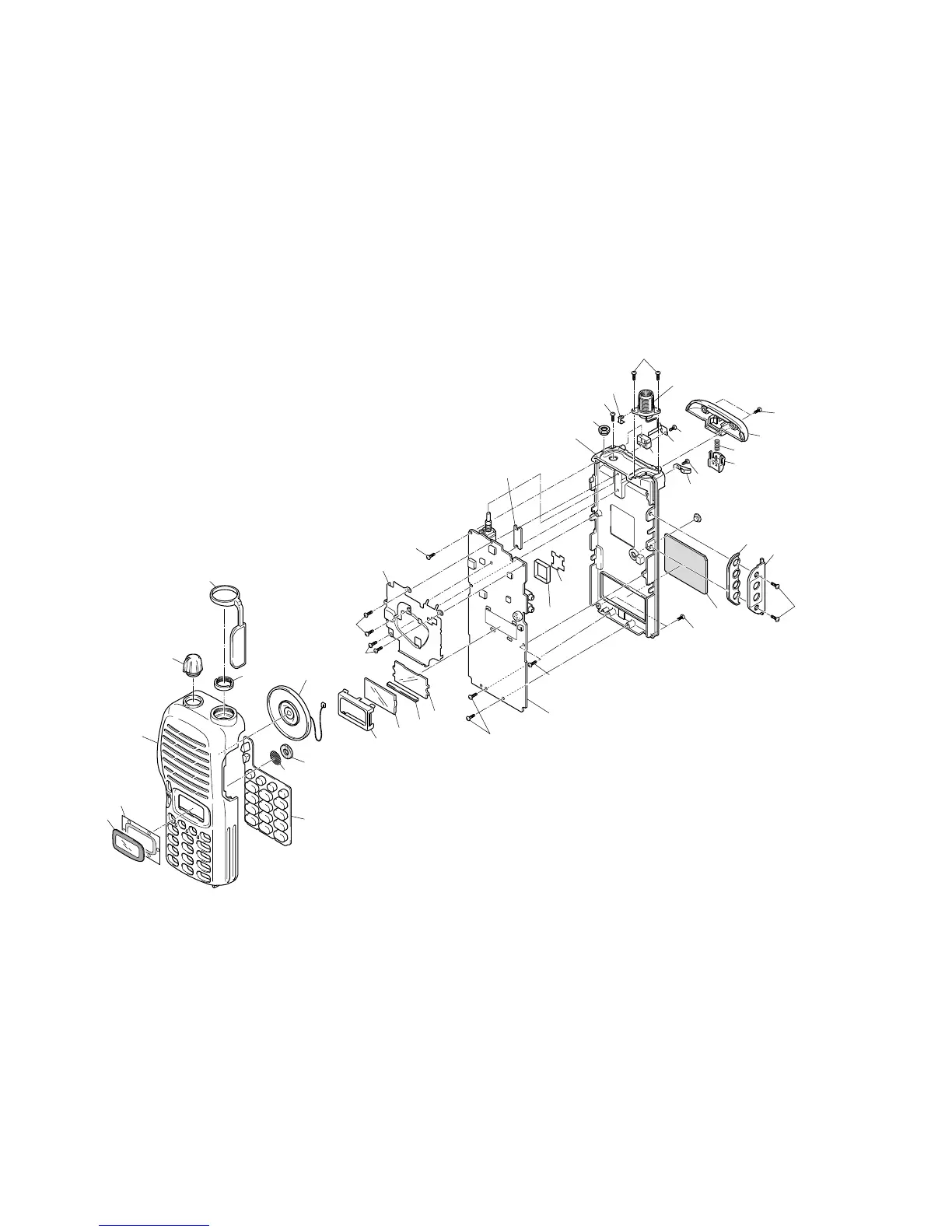

7 - 2
UNIT abbreviation (C): CHASSIS PARTS, (M): MAIN UNIT
MP4 (M)
MAIN unit
MP7 (C)
MP1 (C)
MP20 (C)
MP37 (C)
MP21 (C)
MP3 (M)
DS1 (M)
EP2 (M)
MP1 (M)
MP13 (C)
MP27 (C)
MP10 (C)
SP1 (C)
MP31 (C)
MP32 (C)
MP31 (C)
MP31 (C)
MP31 (C)
MP41 (C)
MP24 (C)
MP2 (M)
MP5 (M)
MP22 (C)
MP32 (C)
MP23 (C)
MP3 (C)
MP32 (C)
MP4 (C)
MP25 (C)
MP32 (C)
MP5 (C)
MP14 (C)
MP31 (C)
MP31 (C)
MP2 (C)
MP15 (C)
MP39 (C)
MP8 (C)
MP9 (C)
MP33 (C)
J1 (C)
MP33 (C)

Icom IC-V8 Specifications

General

Frequency Range	136-174 MHz
Power Output	5.5 W
Mode	FM
Receiver Sensitivity	0.16 μV (12dB SINAD)
Channel Spacing	12.5/25 kHz
Voltage	7.2 V DC
