Icom IC-V8 Service Manual

7 - 1

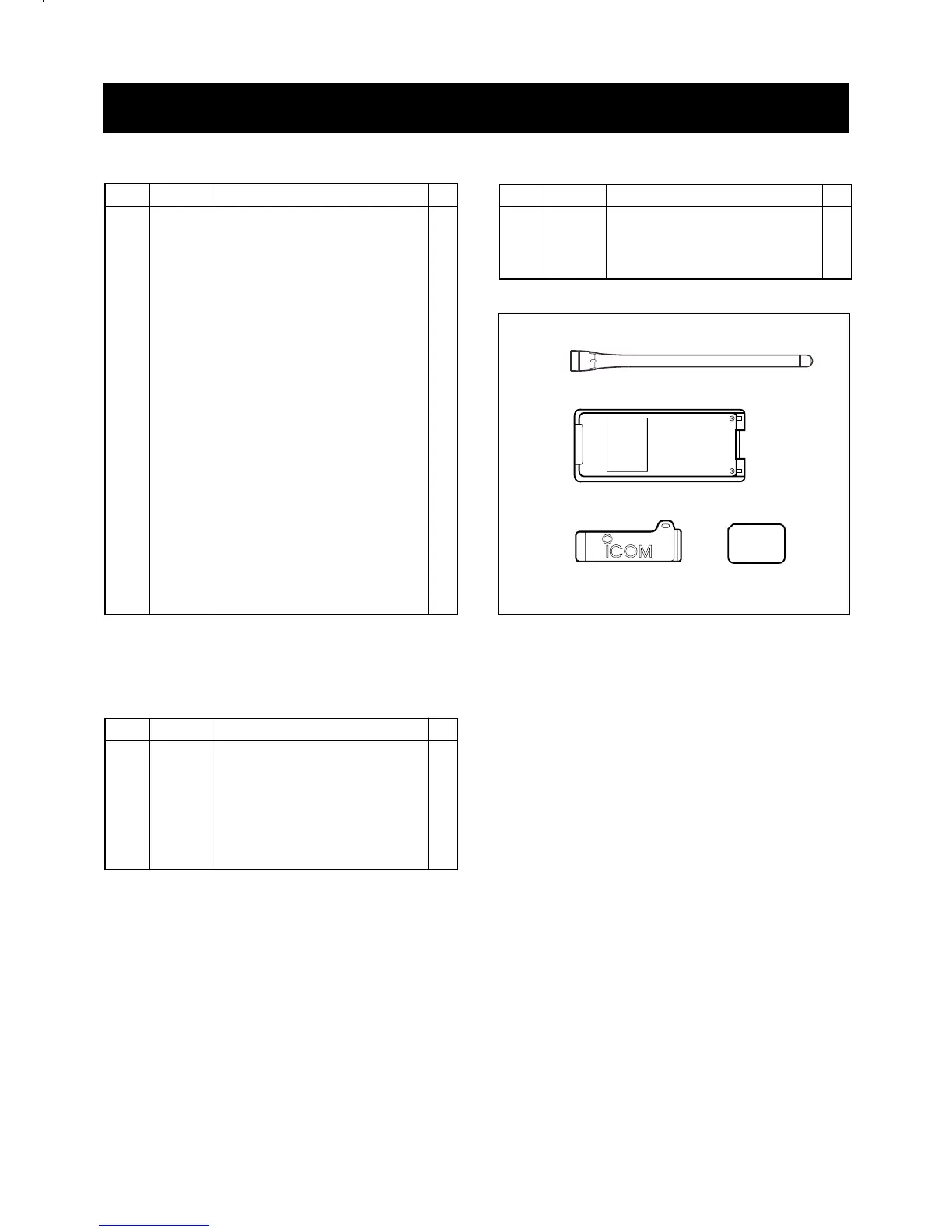

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
REF. NO. ODER NO. DESCRIPTION QTY.
MP1 8210017981 2251 T-front panel (B)-1 1
J1 6510022460 1
1MP2 8930050890 2251 terminal holder
MP3 8010017990 2251 chassis 1
MP4 8210016570 2251 rear panel 1
MP5 8930050870 2251 release button 1
MP7 8310051450 2251 window plate 1
MP8 8930051350 2251 jack rubber 1
MP9 8210016550 2251 jack panel 1
MP10 8610011080 Knob N-287 1
MP13 8930055520 2251 10key 1
MP14 8930050840 2251 minus terminal 1
MP15 8930050850 2251 plus terminal 1
MP20 8930042350 1922 mic sheet 1
MP21 8930051300 2251 mic sponge 1
MP22 8930051290 2251 opt sheet 1
MP23 8830001340 1903 hex nut 1
MP24 8930050900 2251 window sheet 1
MP25 8930036751 Spring 1
Ant connector- BNC-R162
MP27 8830001250 Ant connector-101 1
MP31 8810009510 Screw BT M2 x 4 NI-ZU 8
MP32 8810009560 Screw BT M2 x 6 ZK 7
MP33 8810000100 Screw M2 x 4 ZK 4
MP37 8930050800 2251 jack cap 1
MP39 8860001210 2251 ANT rug 1
MP41 8510013570 2422 shield plate 1
[CHASSIS PARTS]
REF. NO. ODER NO. DESCRIPTION QTY.
1
EP2 8930051310 LCD contact SRCN-2251-SP-N-W
1
1
DS1 8930051310 LCD TTR-5515
MP1 8510011111 1922 VCO case-1
MP2 8510011101 1922 VCO cover-1 1
MP3 8930050811 2251 LCD holder-1 1
MP4 8210016580 2251 reflector 1
MP5 8410002410 2468 PA heatsink 1
[MAIN UNIT]
Screw abbreviations BT: Self-tapping
NI-ZU: Nickel-Zinc
ZK: Black
REF. NO. ODER NO. DESCRIPTION QTY.
EP1 3310002840 Antenna FA-B2E 1
1
1
EP2 0880000840 Battery BP-208
MP1 8930042040 1922 Belt clip
MP2 8930051290 2251 OPT sheet 1
[ACCESSORIES]
EP1
EP2
MP1 MP2
SP1 2510001120 Speaker SDRS-3650P-008 1

Icom IC-V8 Specifications

General

Frequency Range	136-174 MHz
Power Output	5.5 W
Mode	FM
Receiver Sensitivity	0.16 μV (12dB SINAD)
Channel Spacing	12.5/25 kHz
Voltage	7.2 V DC
