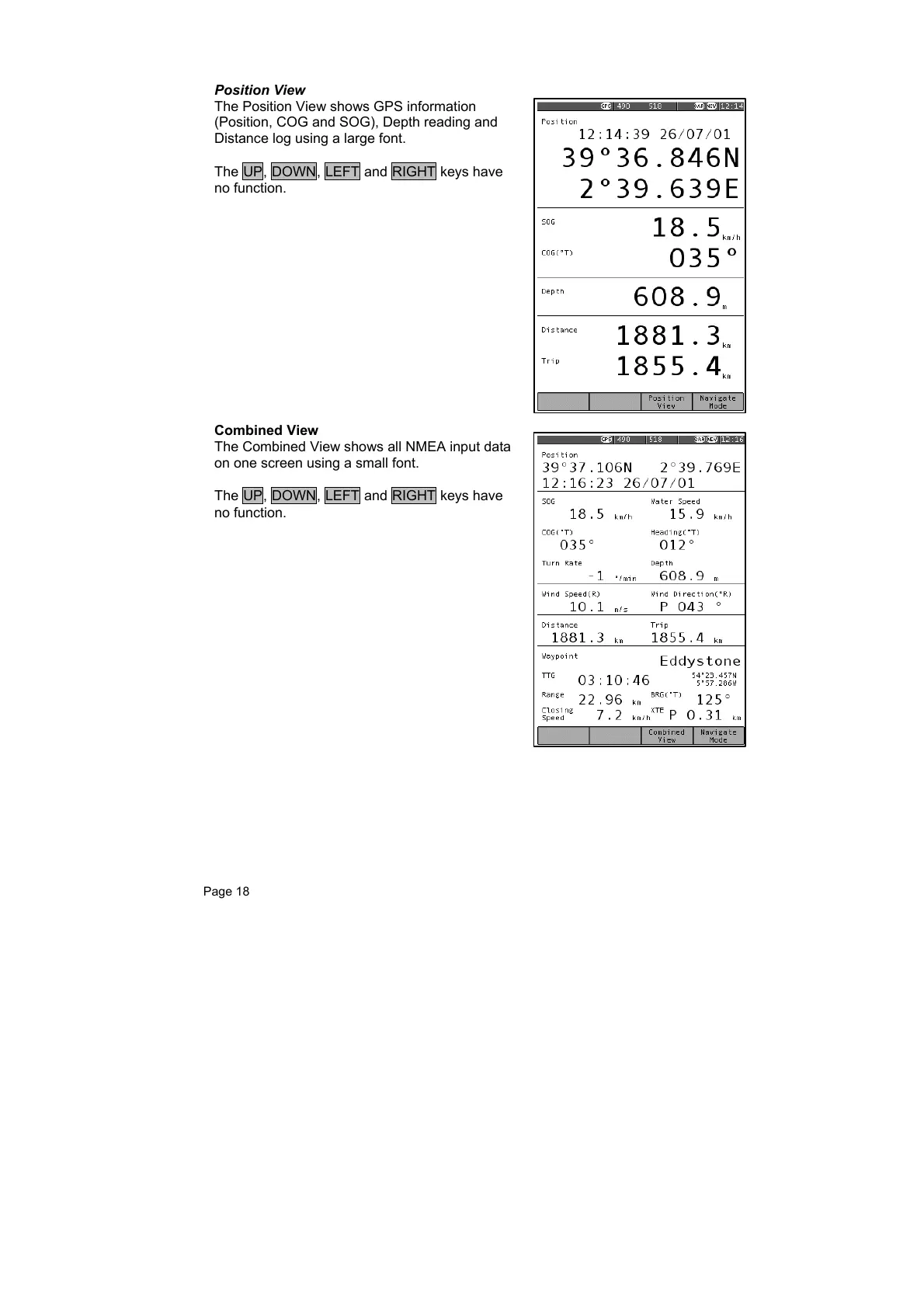

Page 18
Position View
The Position View shows GPS information
(Position, COG and SOG), Depth reading and
Distance log using a large font.
The UP, DOWN, LEFT and RIGHT keys have
no function.
Combined View
The Combined View shows all NMEA input data
on one screen using a small font.
The UP, DOWN, LEFT and RIGHT keys have
no function.
