ICS Nav6 User Manual

Page 21

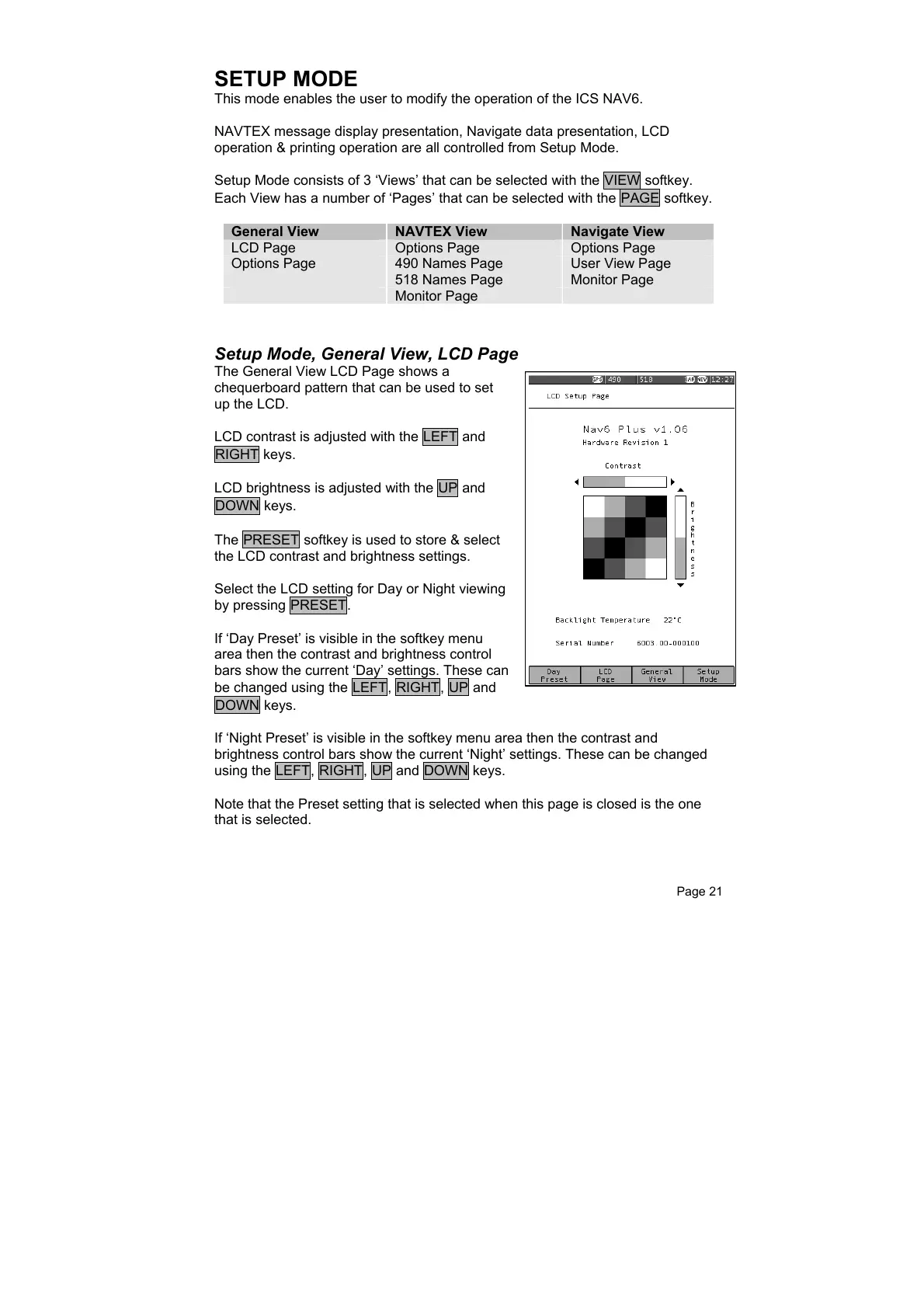

SETUP MODE
This mode enables the user to modify the operation of the ICS NAV6.
NAVTEX message display presentation, Navigate data presentation, LCD
operation & printing operation are all controlled from Setup Mode.
Setup Mode consists of 3 ‘Views’ that can be selected with the VIEW softkey.
Each View has a number of ‘Pages’ that can be selected with the PAGE softkey.
General View NAVTEX View Navigate View
LCD Page Options Page Options Page
Options Page 490 Names Page User View Page
518 Names Page Monitor Page
Monitor Page
Setup Mode, General View, LCD Page
The General View LCD Page shows a
chequerboard pattern that can be used to set
up the LCD.
LCD contrast is adjusted with the LEFT and
RIGHT keys.
LCD brightness is adjusted with the UP and
DOWN keys.
The PRESET softkey is used to store & select
the LCD contrast and brightness settings.
Select the LCD setting for Day or Night viewing
by pressing PRESET.
If ‘Day Preset’ is visible in the softkey menu
area then the contrast and brightness control
bars show the current ‘Day’ settings. These can
be changed using the LEFT, RIGHT, UP and
DOWN keys.
If ‘Night Preset’ is visible in the softkey menu area then the contrast and
brightness control bars show the current ‘Night’ settings. These can be changed
using the LEFT, RIGHT, UP and DOWN keys.
Note that the Preset setting that is selected when this page is closed is the one
that is selected.

ICS Nav6 Specifications

Power

voltage range	10.8V to 15.6V
standby power consumption	1.5 W at 12V
printing power consumption	2.5 W at 12V

Operating Environment

operating temperature range	0 to +40°C
storage temperature range	-20 to +55°C
humidity	0 to 95%

Weight and Dimensions

weight without cable	1200 g
paper roll width	80mm
paper roll length	20m
