ICS Nav6 User Manual

Page 20

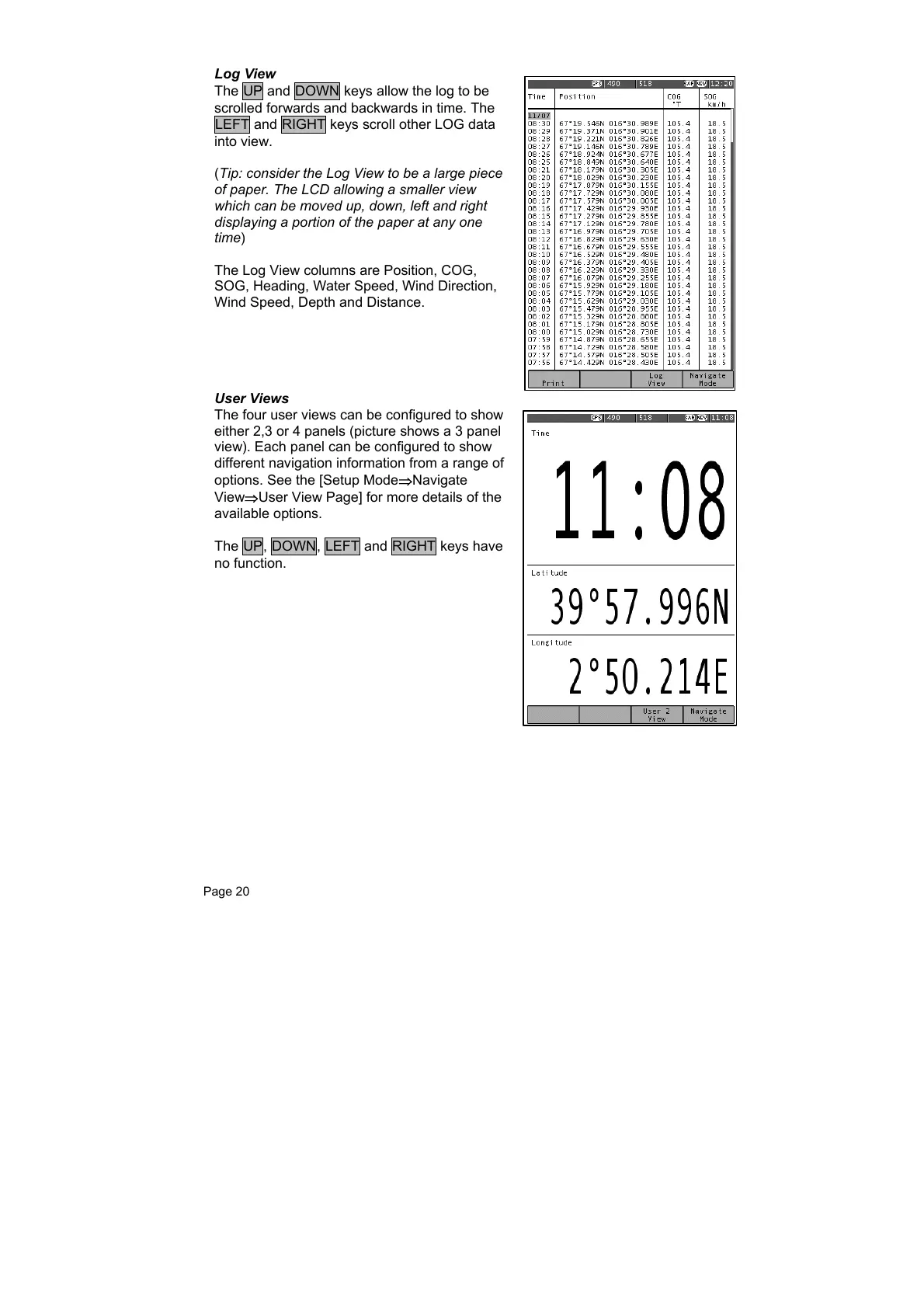

Log View
The UP and DOWN keys allow the log to be
scrolled forwards and backwards in time. The
LEFT and RIGHT keys scroll other LOG data
into view.
(Tip: consider the Log View to be a large piece
of paper. The LCD allowing a smaller view
which can be moved up, down, left and right
displaying a portion of the paper at any one
time)
The Log View columns are Position, COG,
SOG, Heading, Water Speed, Wind Direction,
Wind Speed, Depth and Distance.
User Views
The four user views can be configured to show
either 2,3 or 4 panels (picture shows a 3 panel
view). Each panel can be configured to show
different navigation information from a range of
options. See the [Setup Mode
⇒Navigate
View⇒User View Page] for more details of the
available options.
The UP, DOWN, LEFT and RIGHT keys have
no function.

ICS Nav6 Specifications

Power

voltage range	10.8V to 15.6V
standby power consumption	1.5 W at 12V
printing power consumption	2.5 W at 12V

Operating Environment

operating temperature range	0 to +40°C
storage temperature range	-20 to +55°C
humidity	0 to 95%

Weight and Dimensions

weight without cable	1200 g
paper roll width	80mm
paper roll length	20m
