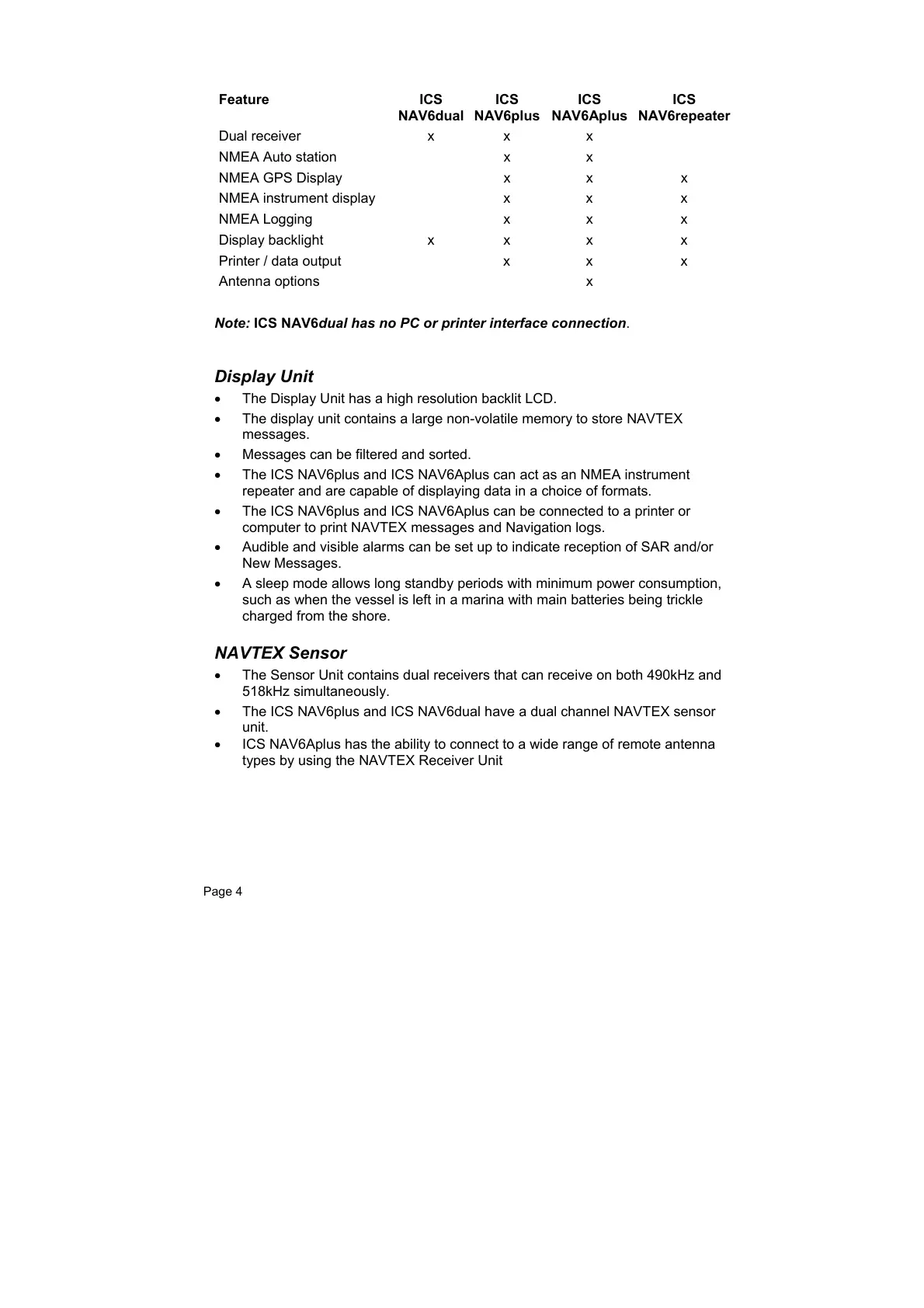

ICS Nav6 User Manual

Page 4
Feature ICS
NAV6dual
ICS
NAV6plus
ICS
NAV6Aplus
ICS
NAV6repeater
Dual receiver x x x
NMEA Auto station x x
NMEA GPS Display x x x
NMEA instrument display x x x
NMEA Logging x x x
Display backlight x x x x
Printer / data output x x x
Antenna options x
Note: ICS NAV6dual has no PC or printer interface connection.
Display Unit
• The Display Unit has a high resolution backlit LCD.
• The display unit contains a large non-volatile memory to store NAVTEX
messages.
• Messages can be filtered and sorted.
• The ICS NAV6plus and ICS NAV6Aplus can act as an NMEA instrument
repeater and are capable of displaying data in a choice of formats.
• The ICS NAV6plus and ICS NAV6Aplus can be connected to a printer or
computer to print NAVTEX messages and Navigation logs.
• Audible and visible alarms can be set up to indicate reception of SAR and/or
New Messages.
• A sleep mode allows long standby periods with minimum power consumption,
such as when the vessel is left in a marina with main batteries being trickle
charged from the shore.
NAVTEX Sensor
• The Sensor Unit contains dual receivers that can receive on both 490kHz and
518kHz simultaneously.
• The ICS NAV6plus and ICS NAV6dual have a dual channel NAVTEX sensor
unit.
• ICS NAV6Aplus has the ability to connect to a wide range of remote antenna
types by using the NAVTEX Receiver Unit

ICS Nav6 Specifications

Power

voltage range	10.8V to 15.6V
standby power consumption	1.5 W at 12V
printing power consumption	2.5 W at 12V

Operating Environment

operating temperature range	0 to +40°C
storage temperature range	-20 to +55°C
humidity	0 to 95%

Weight and Dimensions

weight without cable	1200 g
paper roll width	80mm
paper roll length	20m
