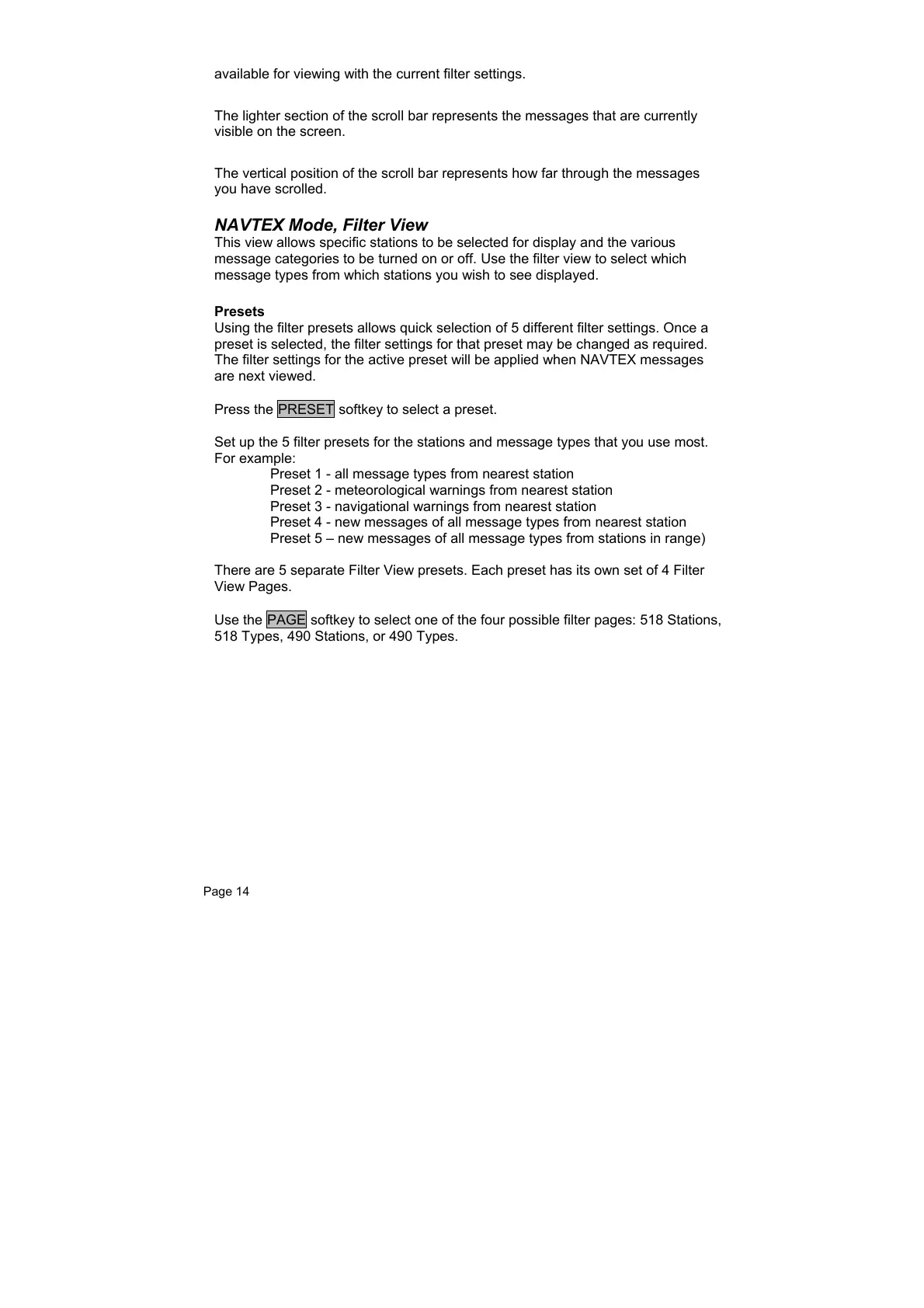

ICS Nav6 User Manual

Page 14
available for viewing with the current filter settings.
The lighter section of the scroll bar represents the messages that are currently
visible on the screen.
The vertical position of the scroll bar represents how far through the messages
you have scrolled.
NAVTEX Mode, Filter View
This view allows specific stations to be selected for display and the various
message categories to be turned on or off. Use the filter view to select which
message types from which stations you wish to see displayed.
Presets
Using the filter presets allows quick selection of 5 different filter settings. Once a
preset is selected, the filter settings for that preset may be changed as required.
The filter settings for the active preset will be applied when NAVTEX messages
are next viewed.
Press the PRESET softkey to select a preset.
Set up the 5 filter presets for the stations and message types that you use most.
For example:
Preset 1 - all message types from nearest station
Preset 2 - meteorological warnings from nearest station
Preset 3 - navigational warnings from nearest station
Preset 4 - new messages of all message types from nearest station
Preset 5 – new messages of all message types from stations in range)
There are 5 separate Filter View presets. Each preset has its own set of 4 Filter
View Pages.
Use the PAGE softkey to select one of the four possible filter pages: 518 Stations,
518 Types, 490 Stations, or 490 Types.

ICS Nav6 Specifications

Power

voltage range	10.8V to 15.6V
standby power consumption	1.5 W at 12V
printing power consumption	2.5 W at 12V

Operating Environment

operating temperature range	0 to +40°C
storage temperature range	-20 to +55°C
humidity	0 to 95%

Weight and Dimensions

weight without cable	1200 g
paper roll width	80mm
paper roll length	20m
