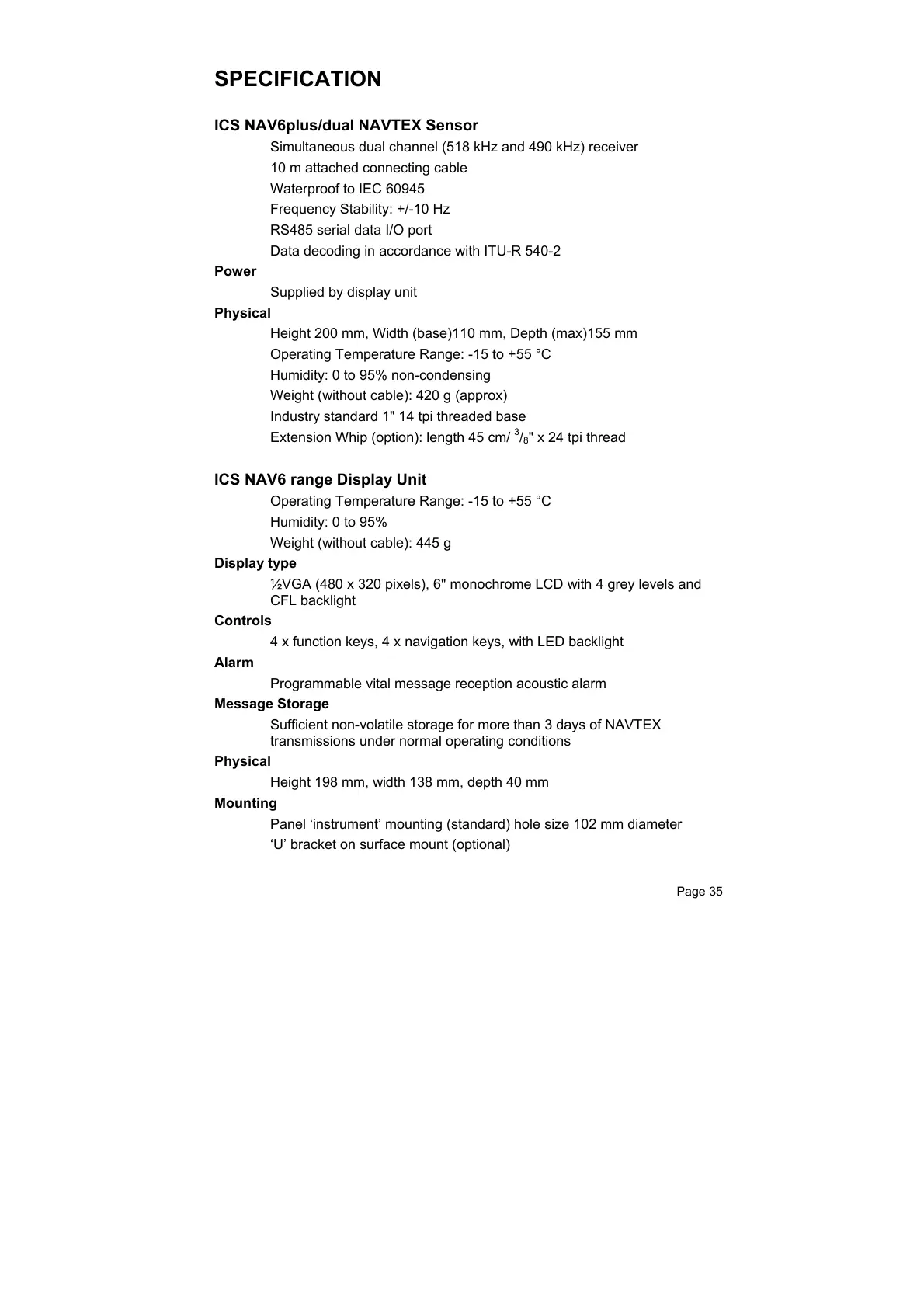

SPECIFICATION
ICS NAV6plus/dual NAVTEX Sensor
Simultaneous dual channel (518 kHz and 490 kHz) receiver
10 m attached connecting cable
Waterproof to IEC 60945
Frequency Stability: +/-10 Hz
RS485 serial data I/O port
Data decoding in accordance with ITU-R 540-2
Power
Supplied by display unit
Physical
Height 200 mm, Width (base)110 mm, Depth (max)155 mm
Operating Temperature Range: -15 to +55 °C
Humidity: 0 to 95% non-condensing
Weight (without cable): 420 g (approx)
Industry standard 1" 14 tpi threaded base
Extension Whip (option): length 45 cm/
3
/
8
" x 24 tpi thread
ICS NAV6 range Display Unit
Operating Temperature Range: -15 to +55 °C
Humidity: 0 to 95%
Weight (without cable): 445 g
Display type
½VGA (480 x 320 pixels), 6" monochrome LCD with 4 grey levels and
CFL backlight
Controls
4 x function keys, 4 x navigation keys, with LED backlight
Alarm
Programmable vital message reception acoustic alarm
Message Storage
Sufficient non-volatile storage for more than 3 days of NAVTEX
transmissions under normal operating conditions
Physical
Height 198 mm, width 138 mm, depth 40 mm
Mounting
Panel ‘instrument’ mounting (standard) hole size 102 mm diameter
‘U’ bracket on surface mount (optional)

ICS Nav6 Specifications

Power

voltage range	10.8V to 15.6V
standby power consumption	1.5 W at 12V
printing power consumption	2.5 W at 12V

Operating Environment

operating temperature range	0 to +40°C
storage temperature range	-20 to +55°C
humidity	0 to 95%

Weight and Dimensions

weight without cable	1200 g
paper roll width	80mm
paper roll length	20m
