The installation of the I.D.E. e1.01 controller should be
conducted by the authorized service. The producer does not take
any responsibility for any damage or loss resulted from the
installation conducted by the unauthorized service.
Disconnect power supply in the sunbed before
installation.
These
connections provide power supply for the controller and enable
operations on the lamps and fans operation control circuits. Connect
the following wires to the sunbed.
lamps operation control circuit
the phase supplying the control
circuits of the tanning device
operation control circuit
If the sunbed is equipped with the system of
automatic ventilation, fans operation control circuit
should not be connected. Insulate the red cable
properly.
If the sunbed is equipped with the system of automatic
ventilation,
These
include the connection of and buttons in the sunbed,
operating as normally opened contactors. Connect the following wires
to the sunbed.
if
not connected to the sunbed, should be properly
insulated.
Read the sunbed manual to choose the optimal type of
connection before preparing electrical connections:
Type A - lamps and/or fans operation control circuit connection
(230 V, AC);
Type B - potential free contact connections.
Electrical connection - Type A

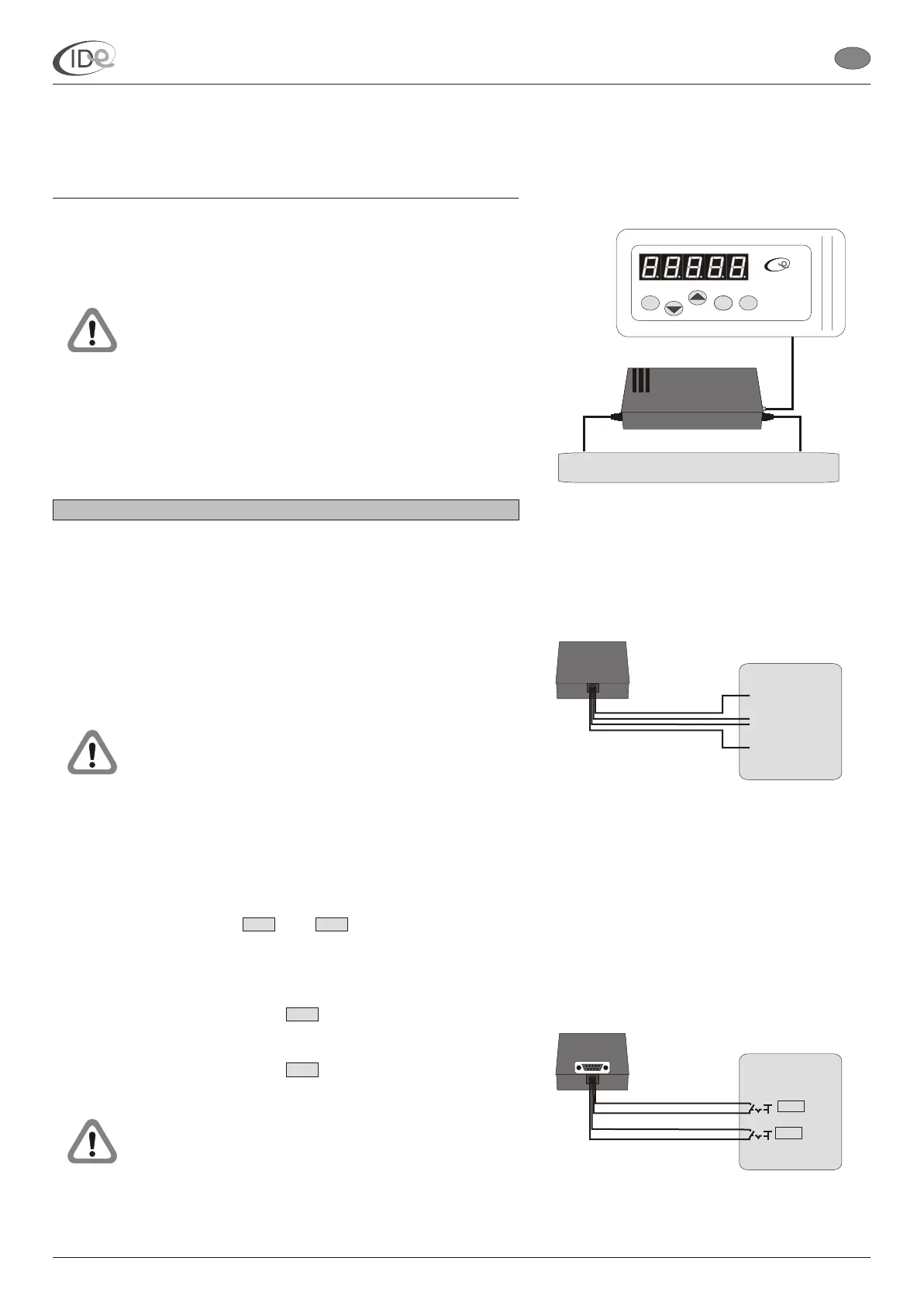

1. Prepare the following circuit connections (picture 2).
yellow wire - (230 V, AC);
black wire - 230 V, AC (
);
blue wire - neutral (N);
red wire - fans (230 V, AC)
ventilation time, set in the controller menu,
should be identical with the ventilation time, set inside
sunbed.
2. Prepare the following low voltage connections (picture 3).
white wire - 0 V;
sky blue wire - external button (remote start, quick
start);
white wire - 0 V;
orange wire - external button (remote stop, quick
stop).
Some sunbeds do not have “remote start” and/or
“remote stop” option. Read the sunbed manual
before preparing low voltage connections. Wires,
START STOP
START
STOP
I.D.E. Systemy Elektroniczne 2Version 1.1 07/2005 Page
Picture 3. Low voltage connections
Sunbed
button
STOP
button
START
Picture 2. Circuit connections- Type A
lamps operation control
circuit (230 V, AC)
Sunbed
fans operation control
circuit (230 V, AC)
phase (230 V, AC)
neutral (N)
Part I Installation
ID
e1.01
STOP
MENU
STARTSTART
Picture 1. I.D.E. e1.01 controller
Sunbed
EN
I.D.E. e1.01 sunbed controller
