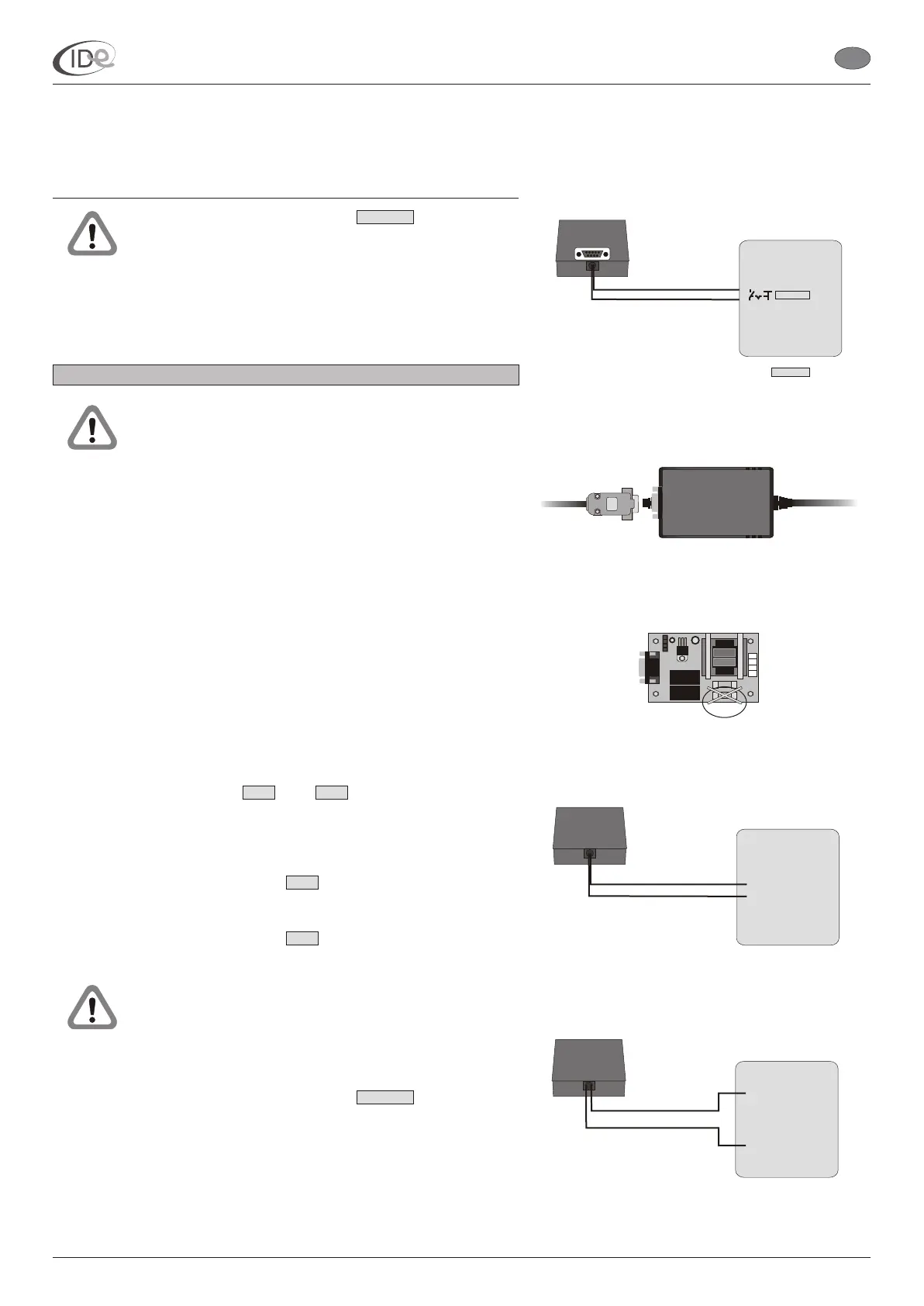

IDE e1.01 - Page 3

In case of sunbeds with single button, orange
wire should not be connected (picture 4).
Electrical connection - Type B
Remove 5A fuse from the power supply and
operation device before preparing electrical
connections (picture 6). Removing 5A fuse allows to
prepare potentiel free contact connections.
1. Prepare the following circuit connections (picture 7).
black wire - (230 V, AC);
blue wire - neutral (N).
2. Prepare the following potential free contact connections (picture 8).
yellow wire - potential free contact;
red wire - potential free contact.
3. Prepare the following low voltage connections (picture 3).
white wire - 0 V;
sky blue wire - external button (remote start, quick
start);
white wire - 0 V;
orange wire - external button (remote stop, quick
stop).
Some sunbeds do not have “remote start” and/or
“remote stop” option. Read the sunbed manual
before preparing low voltage connections. Wires,
In case of sunbeds with single button, orange
wire should not be connected (picture 4).
After the above connections have been made, fasten the I.D.E. e1.01
control panel and connect it to the power supply and operation device
with the DB09 plug (picture 5).
These
connections provide power supply for the controller. Connect the
following wires to the sunbed.
phase
These connections enable operations on the sunbed.
These
include the connection of and buttons in the sunbed,
operating as normally opened contactors. Connect the following wires
to the sunbed.
if
not connected to the sunbed, should be properly
insulated.
After the above connections have been made, fasten the I.D.E. e1.01
control panel and connect it to the power supply and operation device
with the DB09 plug (picture 5).
START/STOP
START STOP
START
STOP
START/STOP
DB09
Fuse 100mA
Fuse 5A
I.D.E. Systemy Elektroniczne 3Version 1.1 07/2005 Page
Part I Installation
EN
Picture 4. Low voltage connections (single button)
START/STOP
Picture 5. I.D.E. e1.01 control panel - power supply and
operation device connection
Picture 6. 5A fuse
Picture 7. Power supply connection - Type B
phase
Sunbed
neutral (N)
Picture 8. P - Type Botential free contact connections
potential free contact
Sunbed
potential free contact
I.D.E. e1.01 sunbed controller
Sunbed
button
START/STOP
