IDEAL LOGIC Combi 24 User Manual

55
Fault Finding
Fault Finding Fault Finding Fault Finding Fault Finding Fault Finding
Ideal Logic Combi - Installation and Servicing

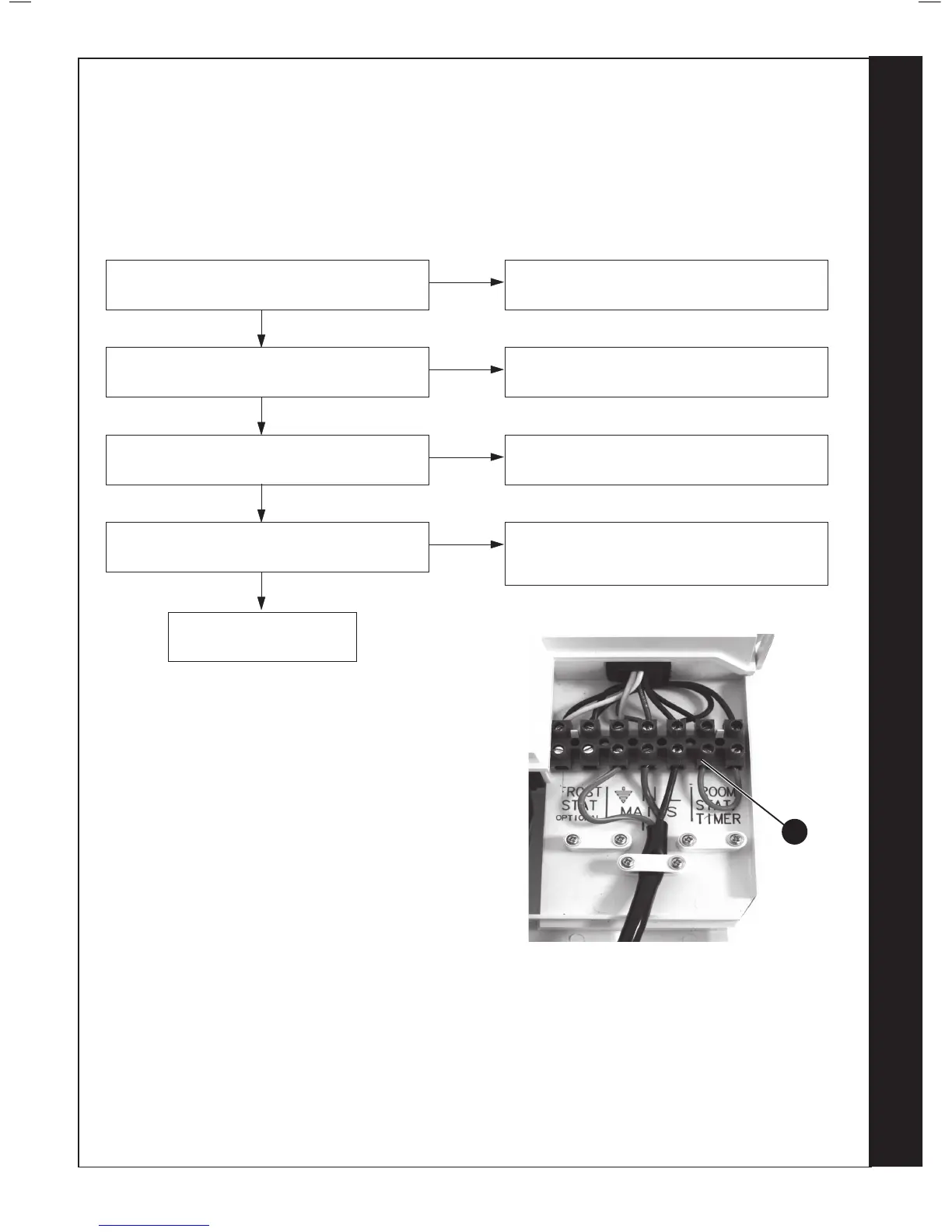

82 NO CH OPERATION BUT HW WORKS OK
Is the mode knob in the Winter position?
YES
NO
Move the mode knob to the Winter position
Are the Timer and the Room Thermostat switched
on?
YES
NO
Switch the Timer and Room Thermostat On
Are the Radiator Valves Open?
YES
NO
Open the Radiator Valves
Is there 230Vac at (A)?
YES
NO
There is no Voltage from the Timer/Room Stat. This
is not boiler fault. Ensure Voltage is supplied to
boiler by rectifying external wiring.
Replace the Divertor Valve
A

IDEAL LOGIC Combi 24 Specifications

General

Boiler Type	Combi
Output Rating	24 kW
Dimensions (H x W x D)	700 x 395 x 278 mm
Flow Rate	9.8 l/min
Fuel Type	Natural Gas
Mounting	Wall Mounted
Efficiency	94%
Central Heating Flow Temperature Range	30-80°C
Hot Water Temperature Range	30-65°C
Warranty	2 years
Energy Efficiency	A
