HYJG BALANCE SYSTEM AND SHEAVE
SIZE
C
SCALE
Ideal Mfg., Inc.
REV
2011 Harnish Blvd.
Billings MT 59101
Tel. (406) 656-4360
PARTS LIST
QTYDESCRIPTIONPART NUMBERITEM
1SHEAVE MOUNT ON OPERATOR FRAMEFGO708G1
2CABLE SHEAVETWO1052
2BEARING (use lock tight when installing new bearing)TWO1063
2SHEAV SHAFTTWO1034
2
1/2-13 NYLOCK HEX NUTN/A
5
1
TENSION CABLE 72 1/2"
TWO110-16
4
TENSION CABLE 95 1/2"TWO110-2
7
21/2-13 HEX NUT (optional)N/A8
2ICE SCRAPER BOLT (optional)PEO4509
9
8
1
5
4
3
2
2
7
7

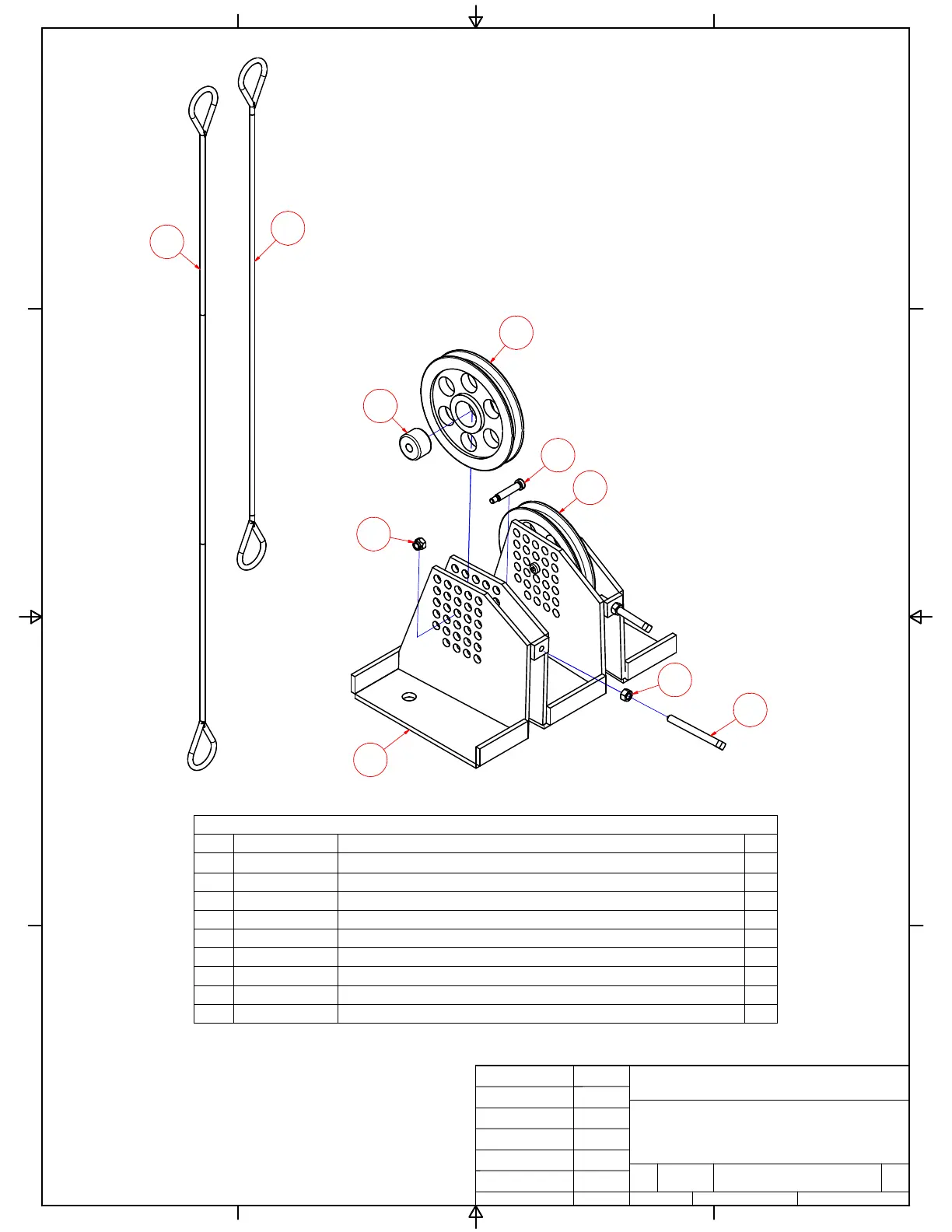

TILT-A-WAY
HYJG 1
HYDRAULIC VERTICAL PIVOT GATE
BALANCE SYSTEM CABLE AND SHEAVE
AND OPTIONAL ICE SCRAPERS
NOTE: WHEN REMOVING SHEAVE MAKE NOTE
OF WHICH HOLE THE SHEAVE SHAFT IS IN.
THE HOLE MAYBE IN A DEFERENT LOCATION
FOR EACH SHEAVE.
NOTE: WHEN ORFERING CABLES, MAKE SURE YOU
HAVE THE SERIAL NUMBER OF YOUR GATE. THIS WILL
INSURE THAT THE RIGHT SIZE CABLES ARE SHIPPID TO YOU.
