Part 1 - Remote Setup
18

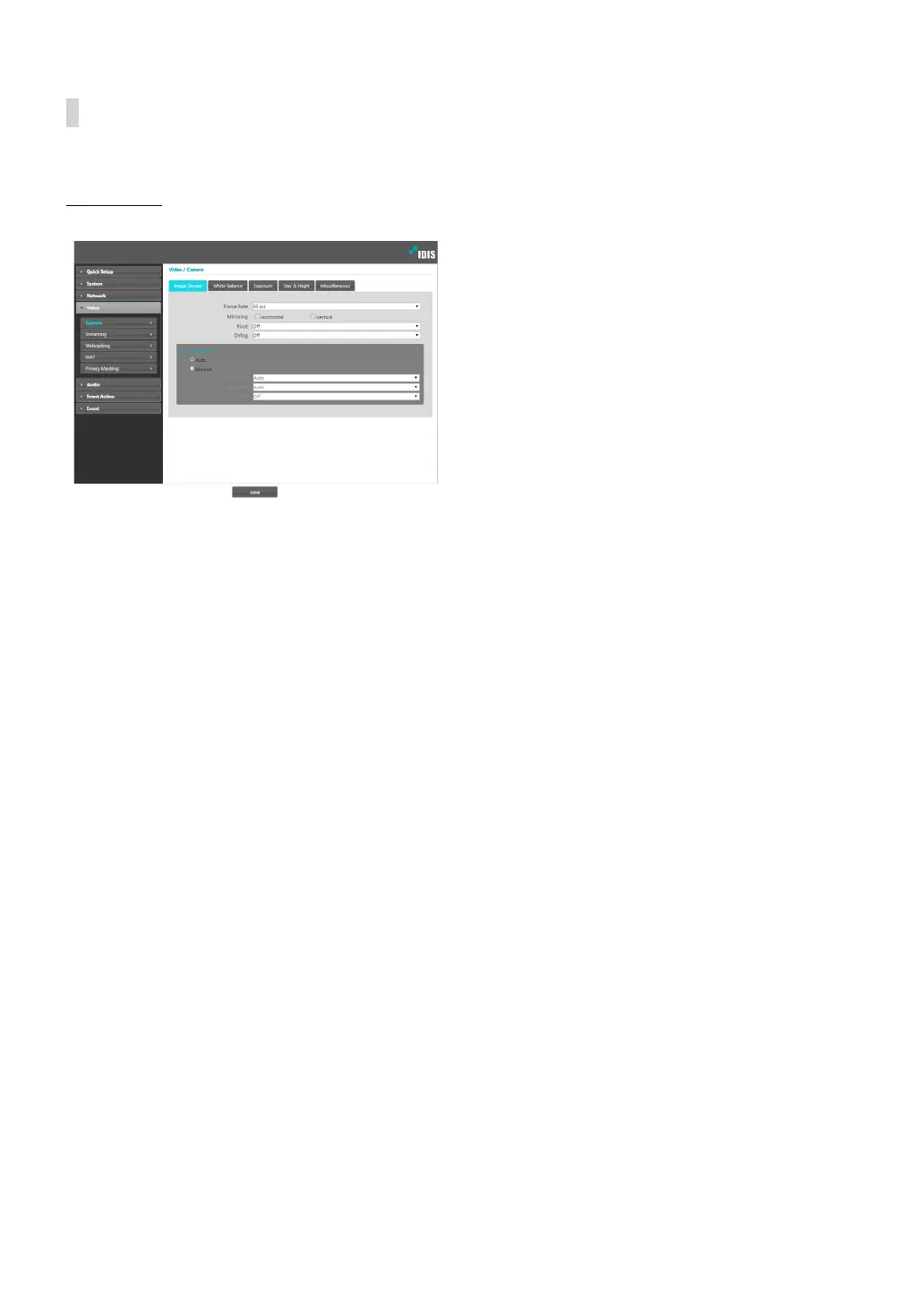

Camera
Image Sensor
Congure Image Sensor settings.
• Frame Rate: Set the frame rate of image sesor.
Selecting 30.00 ips limits the frame rate of images for
streaming under Video > Streaming menu to 30.00
ips. Selecting 60.00 ips restricts some settings under
Video > Streaming menu and disables the following
functions: FTP upload, image attachment of emailing,
and WDR.
• Mirroring: Select Horizontal Reverse or Vertical
Reverse to ip the image horizontally or vertically.
• Pivot: Select a direction to rotate images 90 degrees
clockwise or counterclockwise. If vertical resolution
is less than 320, this function is not supported. If you
enable this function, you can monitor more eciently
long and narrow space such as hallways, corridors,
etc. If both Mirroring and Pivot functions are enabled,
Mirroring functions rst, then Pivot.
• Defog: Disables or enables the Defog feature. When it
is enabled, image with a fog is adjusted.
• Auto Adjustment: Selecting Auto allows the system
to assess the lighting conditions and adjust the
setting automatically. Selecting Manual allows the
user to adjust the setting manually.
- Sharpness: Adjust the sharpness level. Adjust
the contours to make the images look sharper.
Increasing the value raises the sharpness level, but
using too high a value can result in unwanted noise.
- Noise Filter: Select the noise lter level. Noise lter
can reduce the noise in images taken under low-
lighting conditions. Increasing the value reduces
the noise, but using too high a value can result in
blurry images.
- 3DNR: Set whether to enable or disable 3DNR
(3D Noise Reduction). When 3DNR is enabled, the
level of background noise is reduced in low light
conditions. It does not cause overall image blurring
which might occur when using noise lter, but it
may cause afterimage (lag).
