DM-F Series Monitor

Page 6

1.7 Connectors

The following sections show the I/O interfaces of the DM-F series LCD monitor. All

connectors are fully described in Section

43.2.

1.7.1 DM-F65A and DM-F08A Connectors

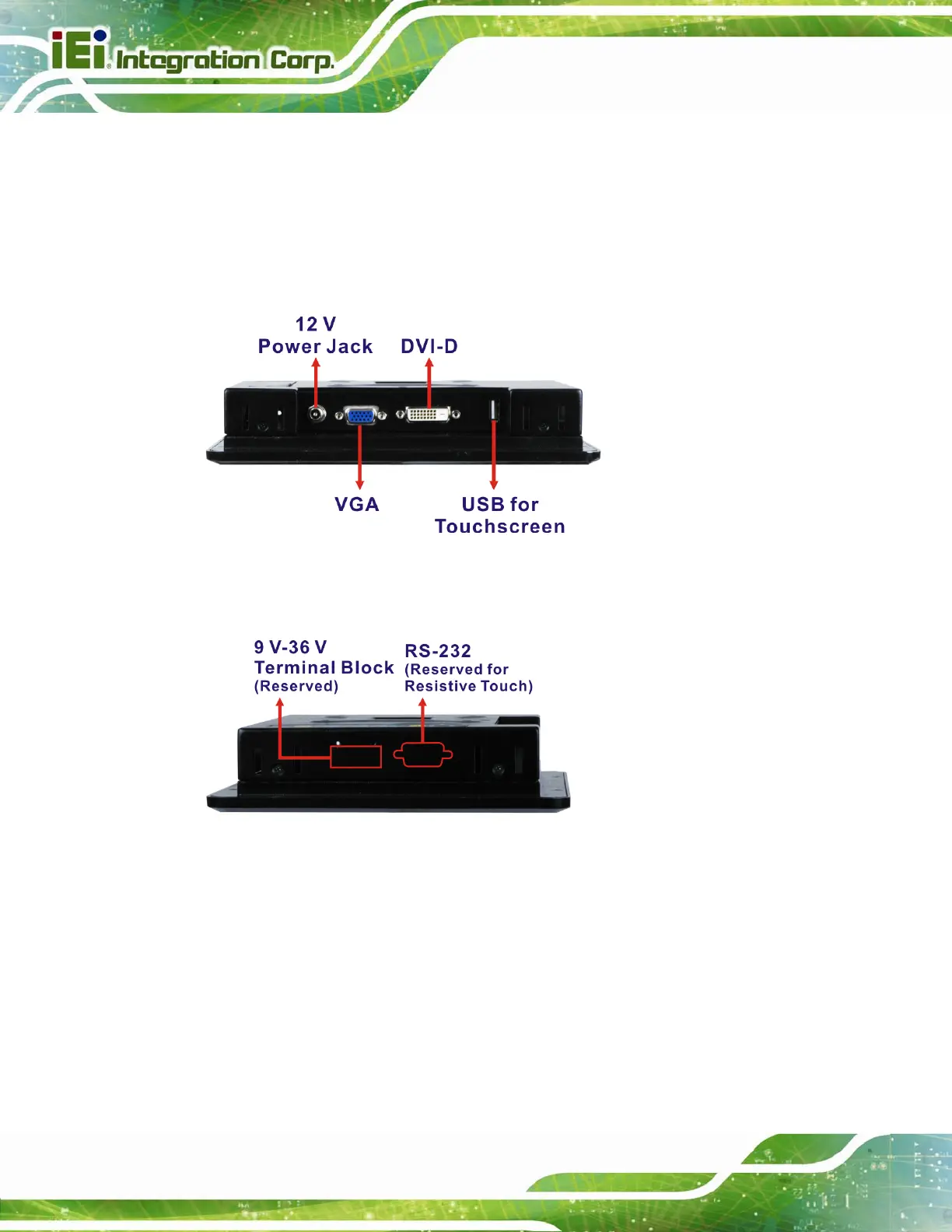

Figure 1-5: Bottom Panel Connectors (DM-F65A/08A)

Figure 1-6: Side Panel Connectors (DM-F65A/08A)
