DM-F Series Monitor
Page 25

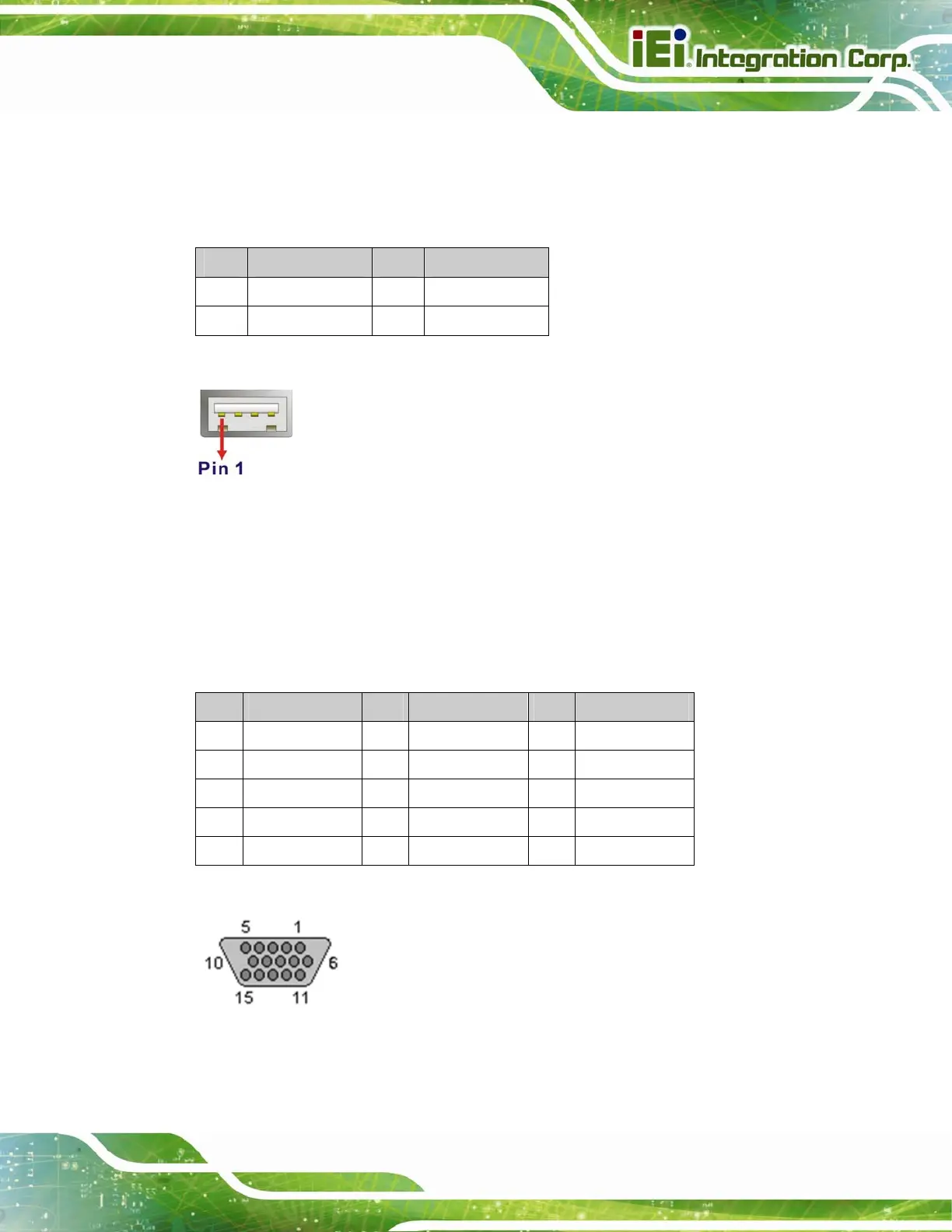

3.2.3 USB for Touch Panel Connector
Use the rear panel standard USB touch panel connector to connect the monitor to the
system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 2 USB20_N11
3 USB20_P11 4 GND
Table 3-1: USB Touch Panel Connector Pinouts
Figure 3-3: USB Touch Panel Connector
3.2.4 VGA Connector
Use the rear panel standard 15-pin female VGA connector to connect the monitor to the
system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION
1 RED 6 GROUND 11 NC
2 GREEN 7 GROUND 12 DDCDAT
3 BLUE 8 GROUND 13 HSYNC
4 NC 9 NC 14 VSYNC
5 GROUND 10 GROUND 15 DDCCLK
Table 3-2: VGA Connector Pinouts
Figure 3-4: VGA Connector
