DM-F Series Monitor
Page 64

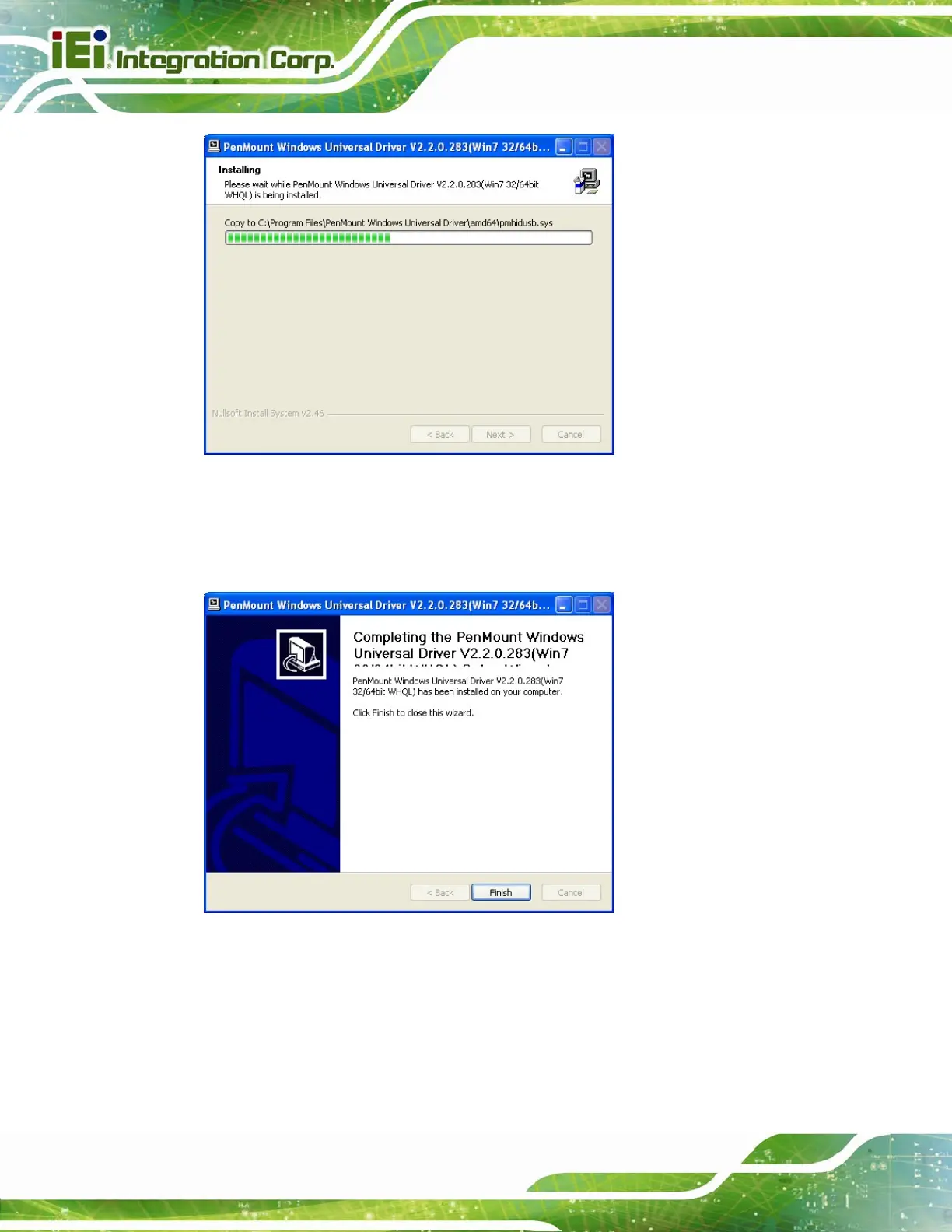

Figure 5-5: Installation Starts
Step 10:
When the installation is complete, the complete screen app
ears. See
Figure 5-6
.
T
o complete the inst
allation process click
Finish
.
Figure 5-6: Finish Installation
