DM-F Series Monitor
Page 28

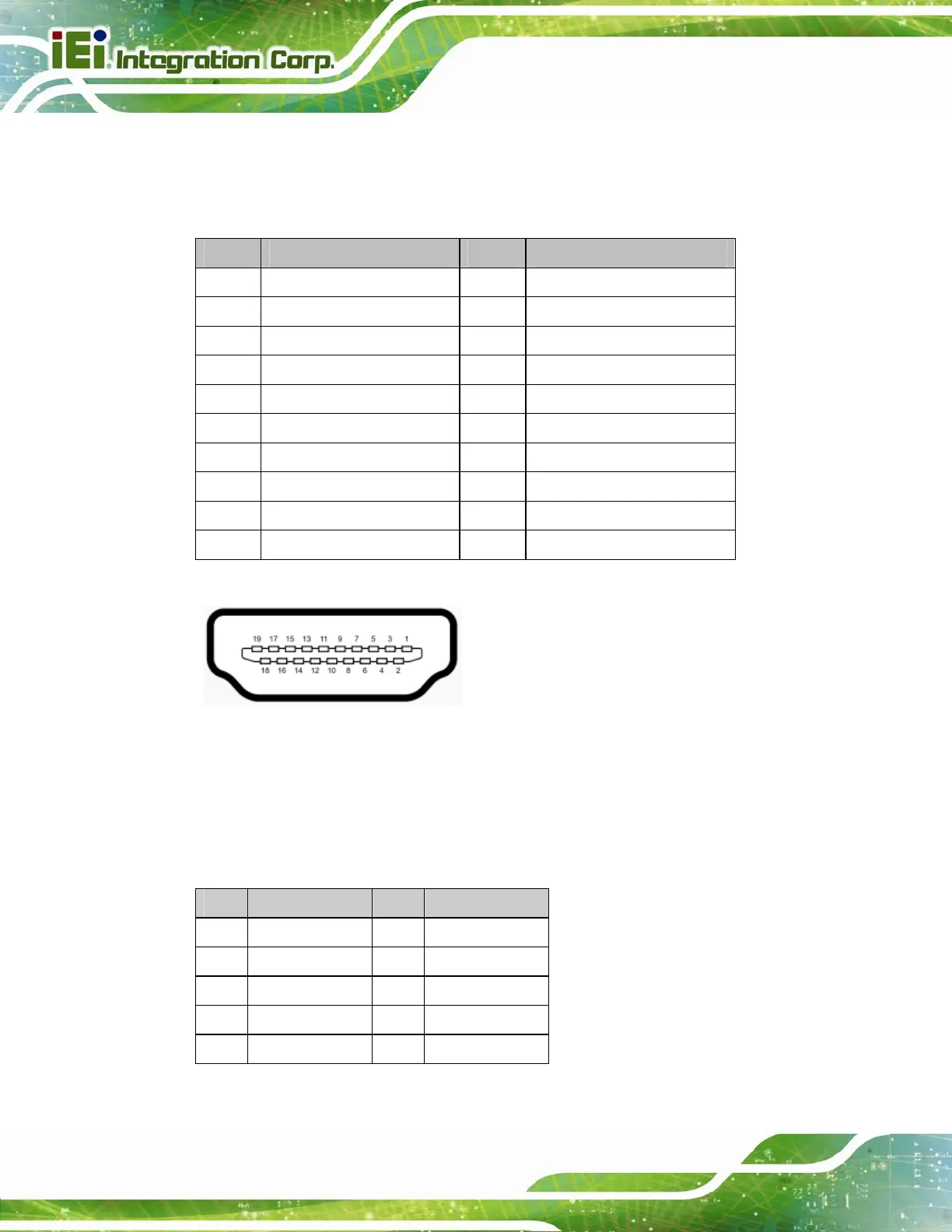

3.2.7 HDMI Connector (F12A, F15A, F17A, F22A and F24A Only)
The HDMI connector connects to a display device with HDMI interface.
PIN DESCRIPTION PIN DESCRIPTION
1 HDMI_TMDS_C_DATA2 2 GND
3 HDMI_TMDS_C_DATA2# 4 HDMI_TMDS_C_DATA1
5 GND 6 HDMI_TMDS_C_DATA1#
7 HDMI_TMDS_C_DATA0 8 GND
9 HDMI_TMDS_C_DATA0# 10 HDMI_TMDS_C_CLK
11 GND 12 HDMI_TMDS_C_CLK#
13 NC 14 NC
15 HDMI_DDC_SCLK 16 HDMI_DDC_SDATA
17 GND 18 +5V_HDMI
19 HDMI_HPD
Table 3-5: HDMI Connector Pinouts
Figure 3-7: HDMI Connector
3.2.8 RS-232 Port for Touch Panel (Reserved for Resistive Touch)
Use the side panel standard RS-232 DB-9 female touch panel connector to connect the
monitor to the system graphics interface.
PIN DESCRIPTION PIN DESCRIPTION
1 N/A 6 NDSR
2 NRX 7 NRTS
3 NTX 8 N/A
4 NDTR 9 N/A
5 GND
Table 3-6: RS-232 Touch Panel Connector Pinouts
