DM-F Series Monitor
Page 31

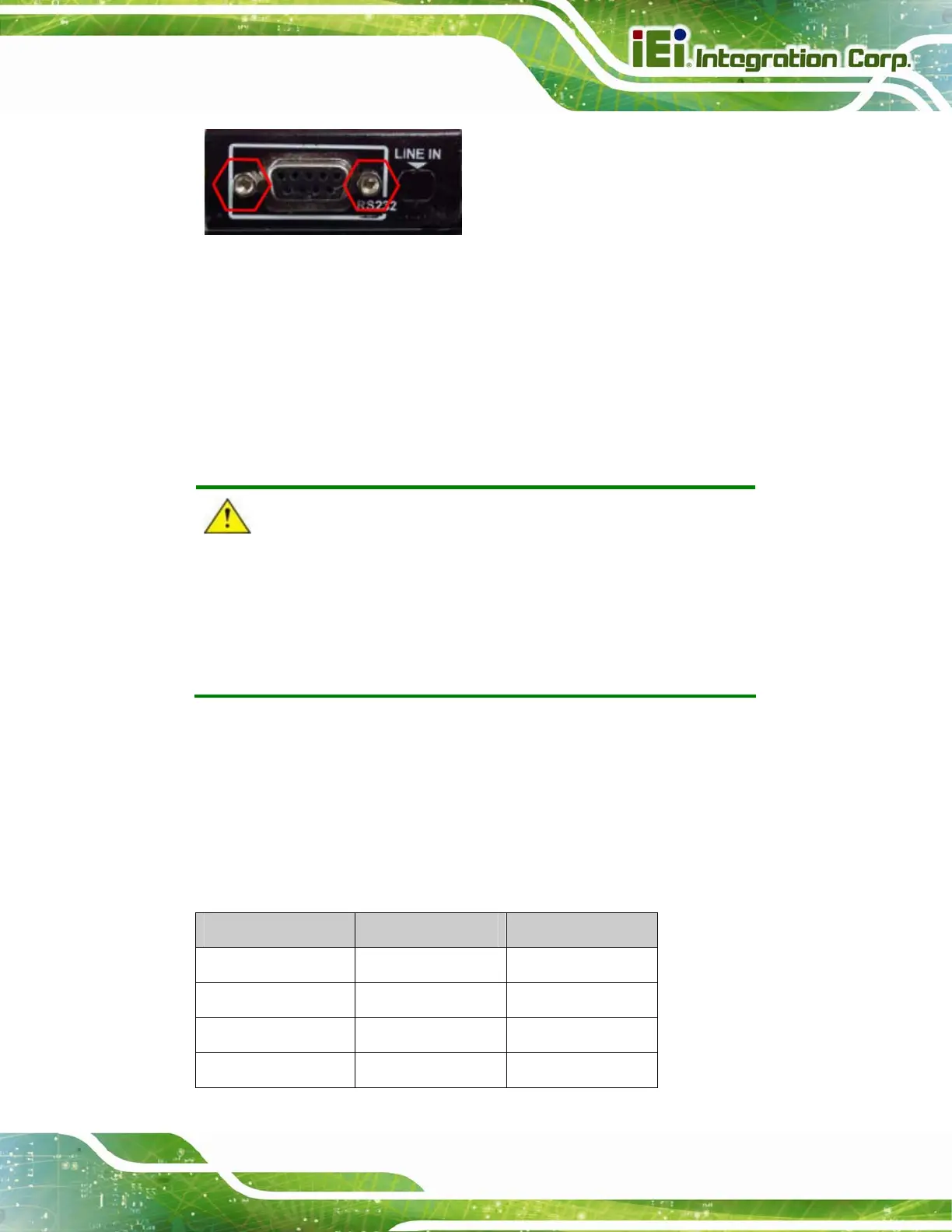

Figure 3-12: Hex Jack Screws for Securing RS-232 Connector
Step 5: Re-install the rear panel.
3.3 Mounting the Monitor
The DM-F series LCD monitor can be mounted in a panel, cabinet, rack or wall. The
monitor can also be mounted on a monitor arm or stand. The mounting methods are
described below.
CAUTION:
When mounting the monitor take care to tighten the retention screws or
bolts until fully secure, but do not over tighten. Over tightening the
retention screws or bolts may cause them to become stripped,
rendering them useless.
3.3.1 Panel Mounting
Each model of the DM-F series LCD monitor has a series of mounting slots located on the
top, side and bottom panels for mounting the monitor to a panel.
4Table 3-7 lists the number of mounting clamps and holders required to mount the monitor
to a panel.
Model Mounting Clamps Clamp Holders
DM-F65A 8 N/A
DM-F08A 8 N/A
DM-F12A 9 9
DM-F15A 9 9
