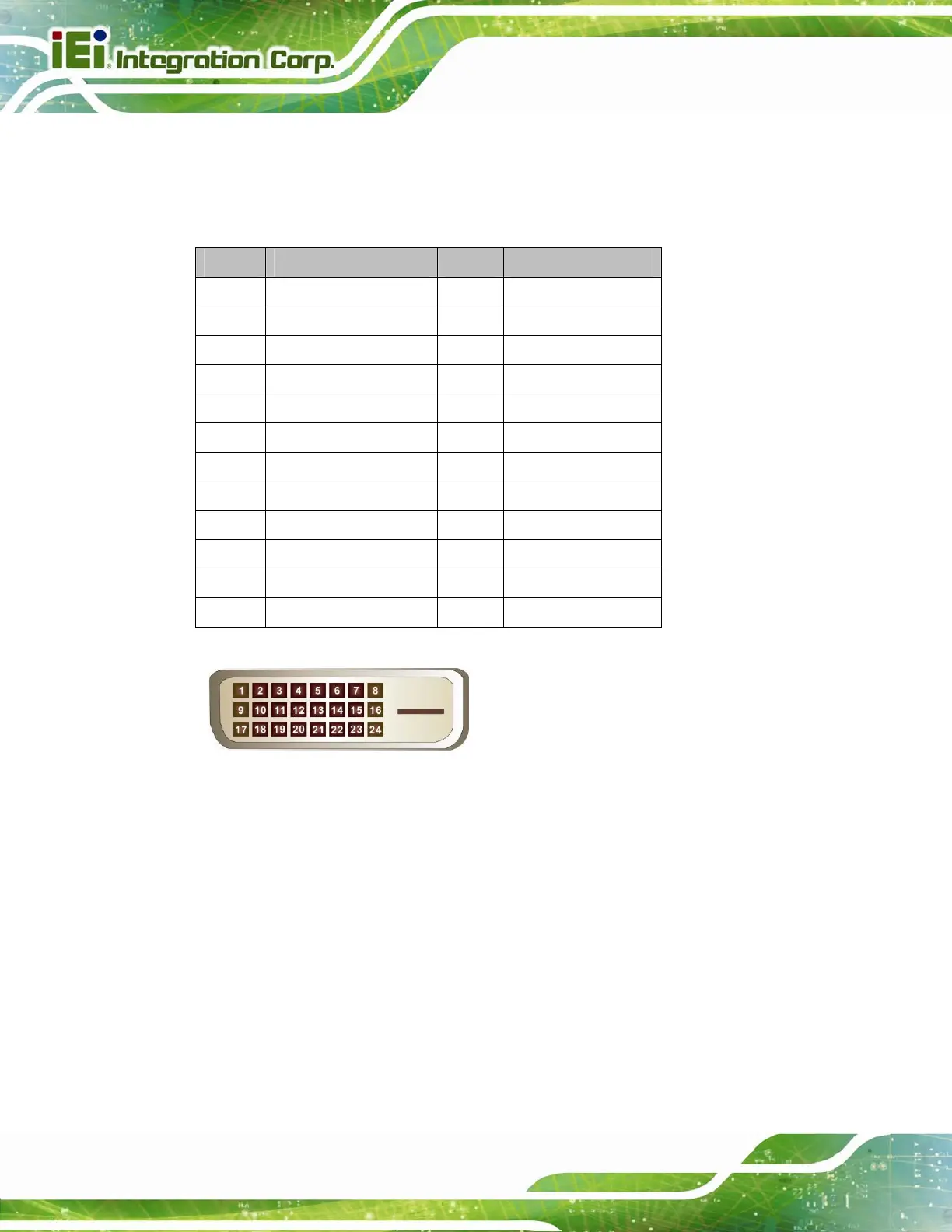

3.2.5 DVI-D Connector (F65A, F08A and F19A Only)
The 24-pin Digital Visual Interface (DVI) connector connects to high-speed,
high-resolution digital displays. The DVI-D connector supports only digital signals.
PIN DESCRIPTION PIN DESCRIPTION
1
TMDS Data2-
13
NC
2
TMDS Data2+
14
PVDD1
3
GND
15
GND
4
N/C
16
GND
5
N/C
17
TMDS Data0-
6
DDC Clock [SCL]
18
TMDS Data0+
7
DDC Data [SDA]
19
GND
8
Analog vertical sync
20
NC
9
TMDS Data1-
21
NC
10
TMDS Data1+
22
GND
11
GND
23
TMDS Clock +
12
NC
24
TMDS Clock -
Table 3-3: DVI-D Connector Pinouts
Figure 3-5: DVI-D connector
