IEI Technology prox.pad Plus User Manual

prox.pad Plus IR Access System Installer Guide
Removing/Inserting Circuit Boards
If you must remove or insert the main circuit board from/into the prox.pad Plus IR controller/keypad, follow the steps below.
1. Disconnect the back housing of the prox.pad Plus IR unit from the front keypad/controller.
2. (When handling the main printed circuit board, to guard against possible static discharges, hold the board by its
edges with one hand and then touch a grounded object before touching the prox.pad Plus IR unit.) Remove the main
printed circuit board by pressing the two spring tabs in the direction of the arrows as shown in Figure 8. Be careful with the
wires.
3. Fold up the main circuit board and remove the P4 connector (a 4-conductor harness) from the bottom of the board.
4. To re-insert, replace the main circuit board into the keypad/controller and the P4 connector to the main circuit board.
5. Connect the keypad/controller to the back housing.
Page 18 of 32 Document # 6105681, Rev 1.1, D2a

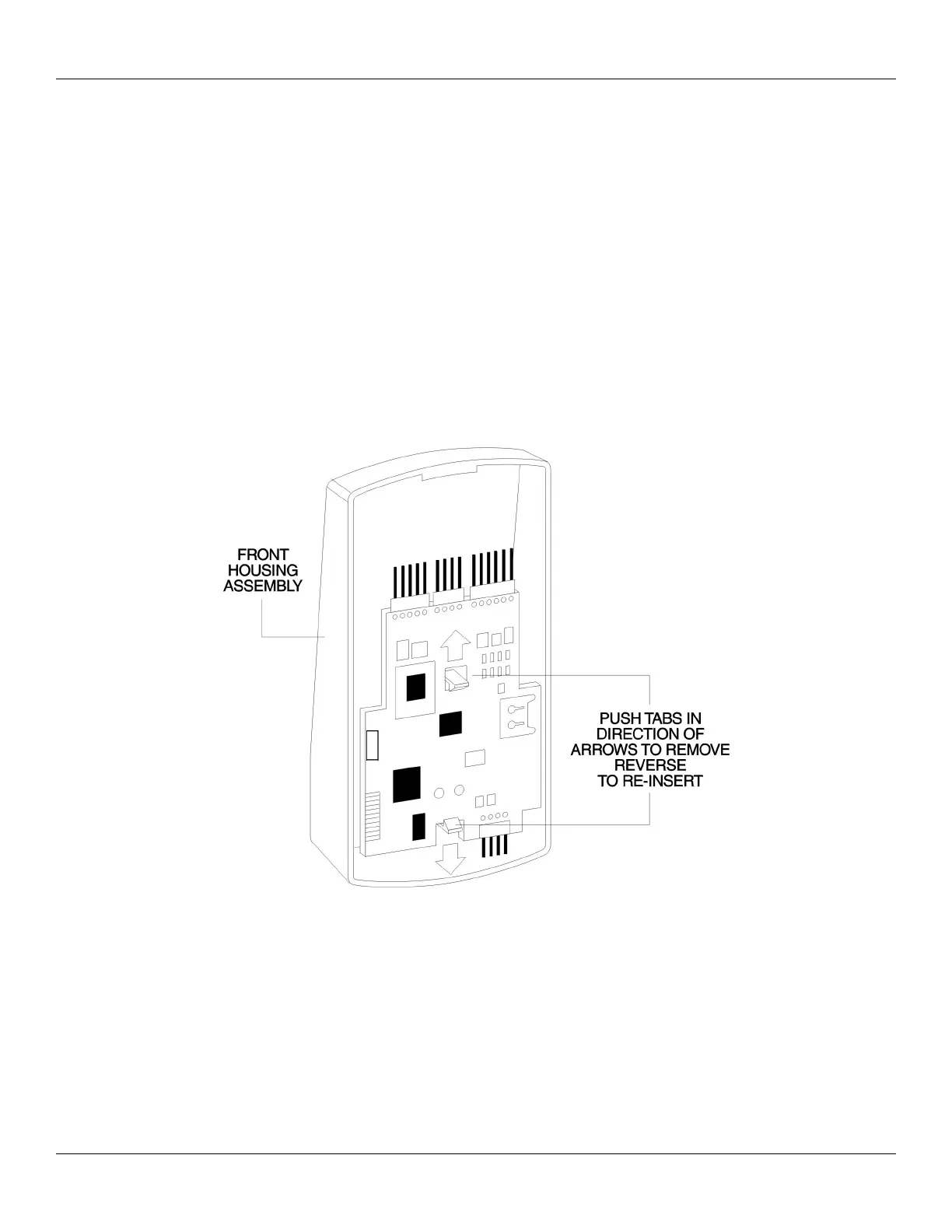

Figure 9: Removing/Inserting Printed Circuit Board
