prox.pad Plus IR Access System Installer Guide
Wiring the Main Relay to Fail Safe Lock
The door lock is wired to connector P1 on the prox.pad Plus IR main circuit board. The following section describes how to wire a
Maglock.
Power for the prox.pad Plus IR unit must be from a 12-24 volt DC linear, filtered and regulated power supply. It is typical for the
chosen power supply to power BOTH the prox.pad Plus IR unit and the selected locking device. When using one power supply for
both the prox.pad Plus IR unit and locking device, be sure to include both devices in your current requirements calculations.
NOTE: IEI recommends that you ground the power supply to earth ground.
Document # 6105681, Rev 1.1, D2a Page 21 of 32

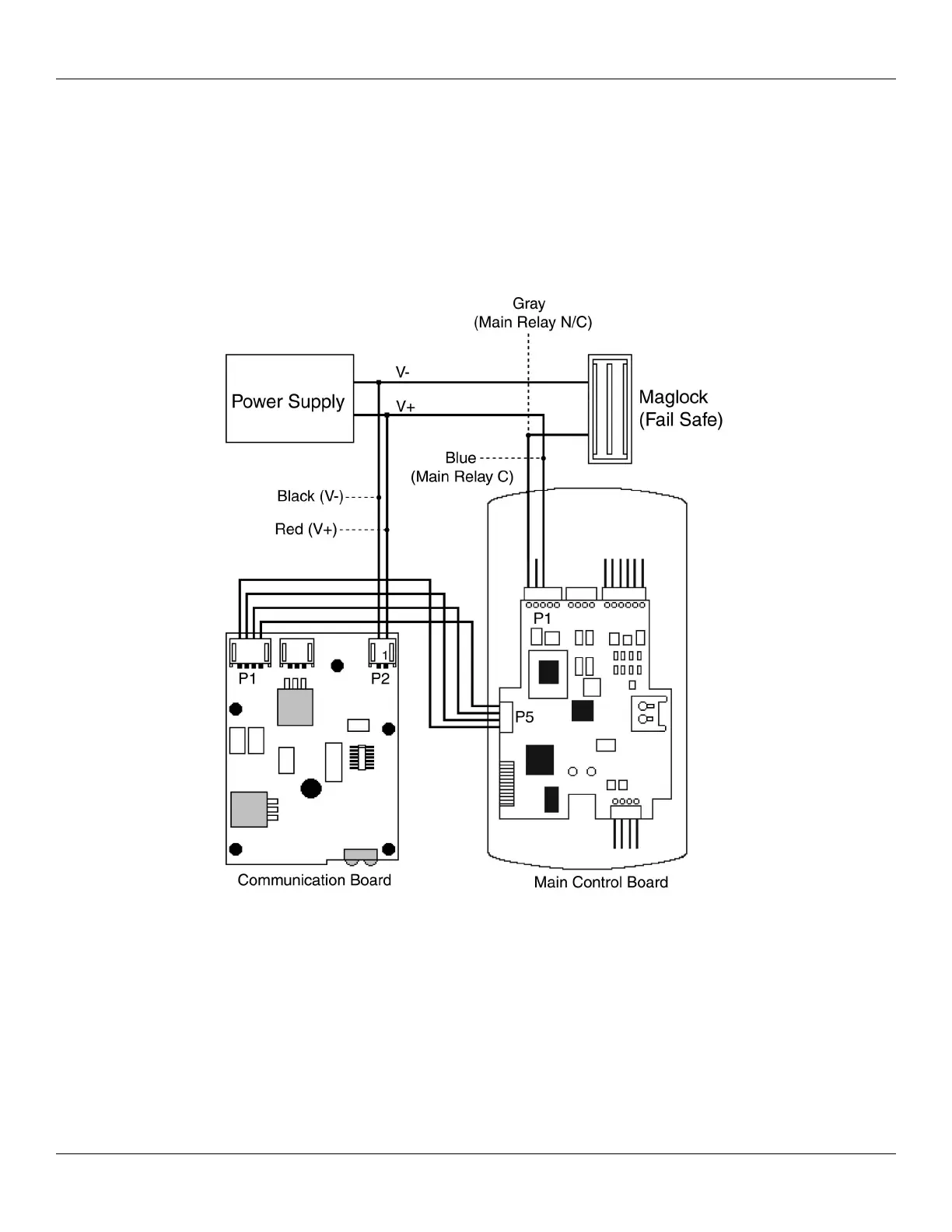

Figure 12: Maglock (Fail Safe) Wiring Diagram
