prox.pad Plus IR Access System Installer Guide
Wiring the Aux Relay For Alarm Shunt
The diagram below shows how to wire the Aux relay for use as alarm shunt. By default, the Aux Relay is set for Alarm Shunt so no
programming is required for this feature. For the alarm shunt feature to work, you must connect a dedicated normally closed door
switch to the white and orange wire on connector P2 as shown below.
Page 22 of 32 Document # 6105681, Rev 1.1, D2a

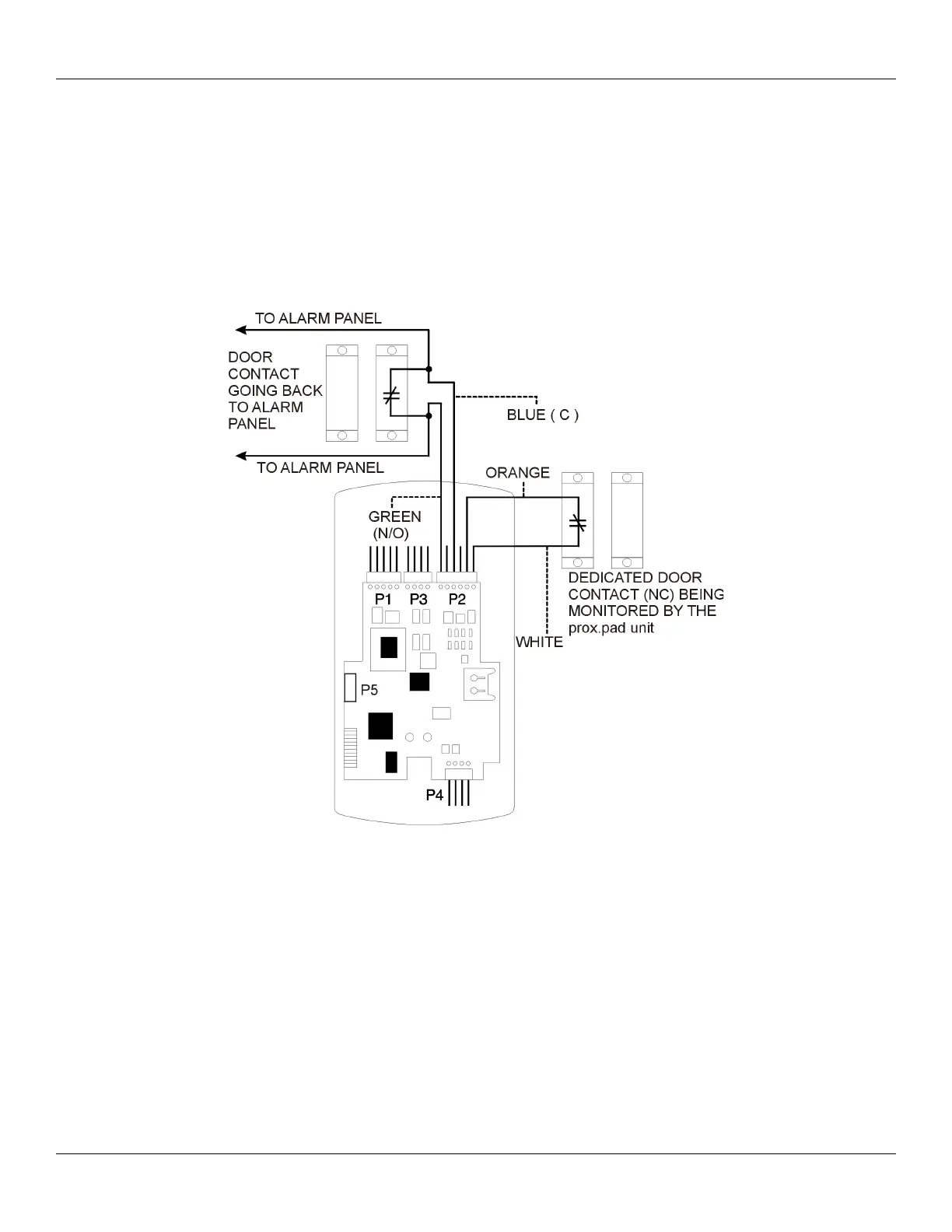

Figure 13: Wiring the Aux Relay for Alarm Shunt
