prox.pad Plus IR Access System Installer Guide
Wiring the Aux Relay For Propped or Forced Door
The diagram below shows how to wire the Aux Relay for propped door or forced door. Before you use the Aux Relay for propped
door or forced door you must assign it using command 10. For the either of these features to work, you must connect a dedicated
normally closed door switch to the white and orange wire on connector P2 as shown below.
Document # 6105681, Rev 1.1, D2a Page 23 of 32

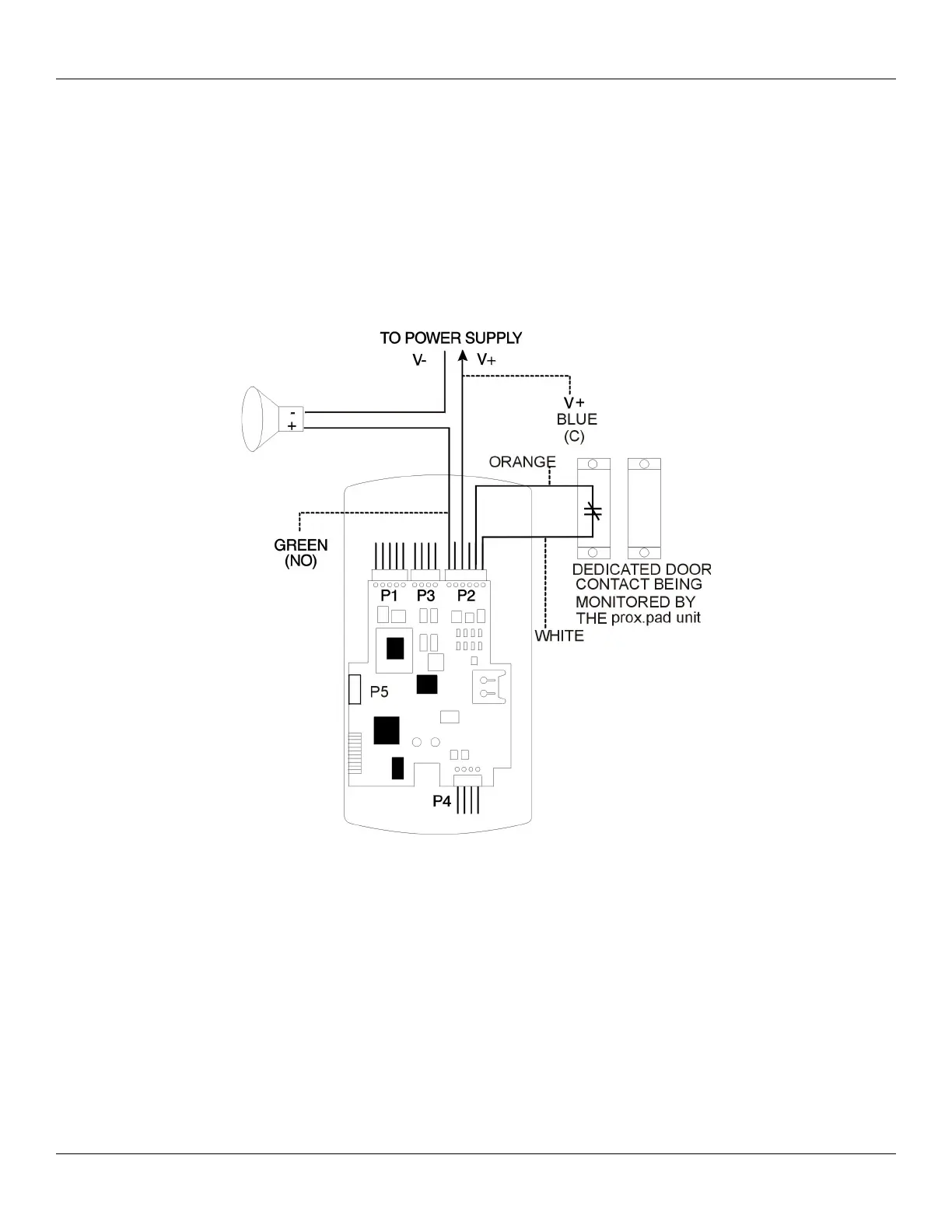

Figure 14: Wiring the Aux Relay for Forced or Propped Door
