2 - TECHNICAL INFORMATION MASTER 880MP E-volution
2 - Pag. 4 / 19

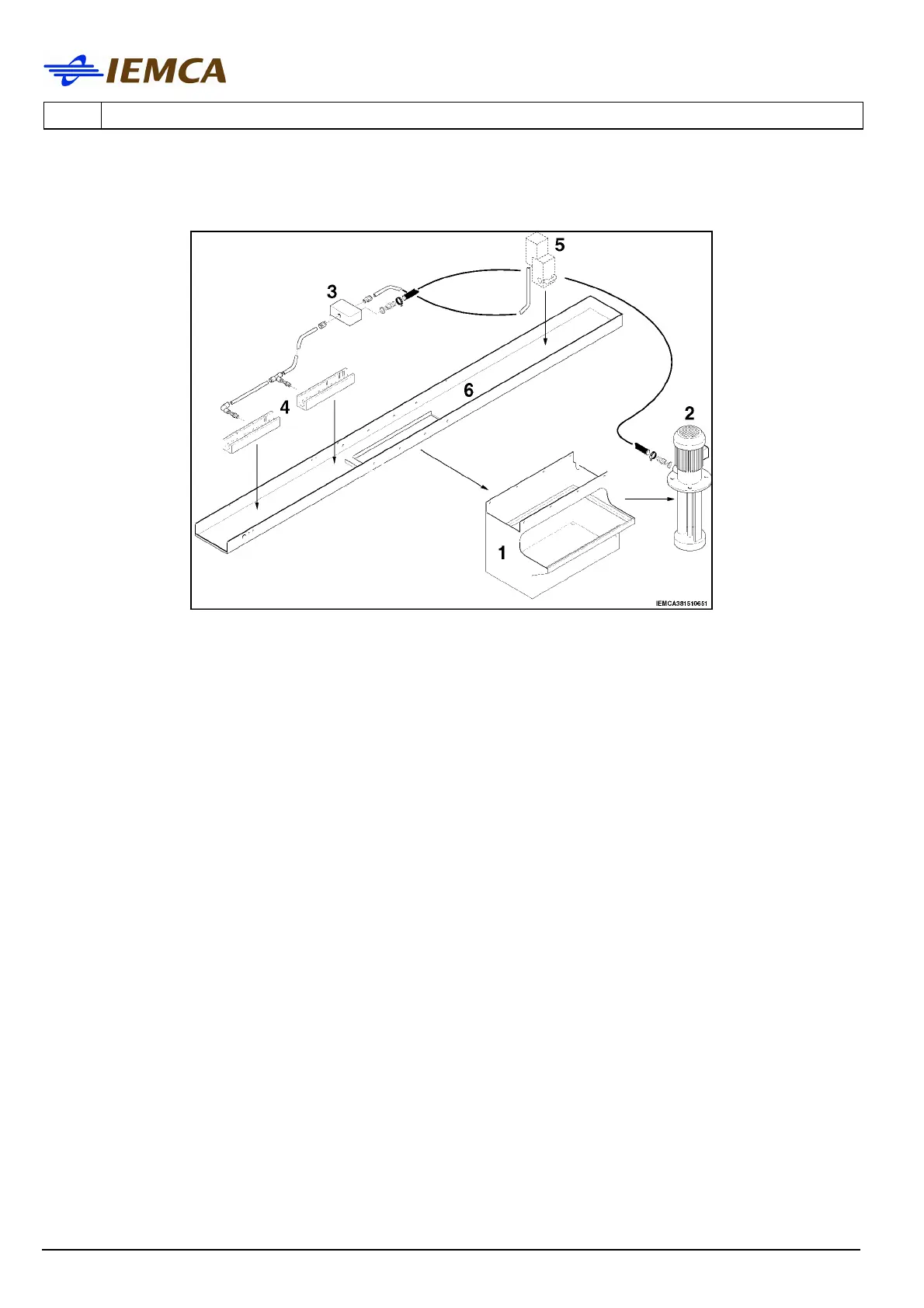

2.1.2 Hydraulic system - Main components
1TANK
2PUMP
3 DIRECTIONAL CONTROL VALVE
4GUIDES
5BUSHING
6 OIL RECOVERY TRAY
Lubrication oil cycle: forced by pump (2) installed in tank (1), the oil flows to guides (4) and
bushing holder (5) to lubricate the bars in production.
From these two devices the oil enters recovery tray (6) from where it is returned to the tank
via a filter for use in the next lubrication cycle.
