IEMCA MASTER 880 MP-E - Bar Feeder - Main Components

2 - TECHNICAL INFORMATION MASTER 880MP E-volution
GB
2 - Pag. 3 / 19

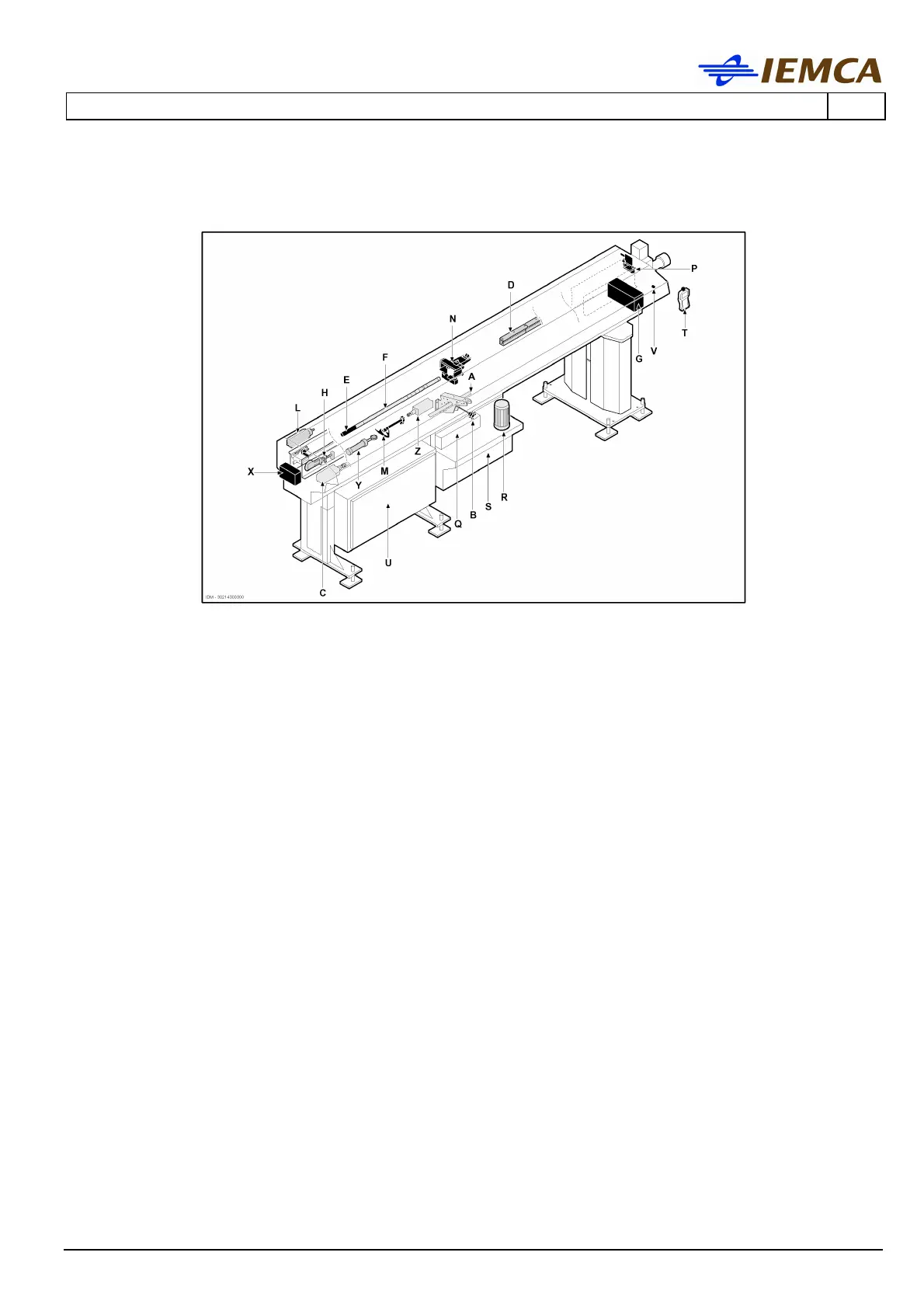

2.1.1 Bar feeder - Main components
A Magazine; where bars are stored.
B Bar selectors; this selects the first bar contained in the magazine, so that it can be
afterwards loaded by the lifting device.
C Bar lifting device; this lifts the first bar contained in the magazine.
D Guide channels; they drive the bar during the machining.
E First feeding carriage; it pushes the bar forward until the necessary space for the bar pusher
connection has been created.
F Bar pusher; it pushes the bar during the machining. The collet is fixed on its front end.
G Bar pusher drive; it drives the bar pusher.
H Feed chain; it transmits the motion from the drive to the bar pusher.
L Guide channel opening/closing cylinder
Y Upper guide channel unlock
M Pneumatic bar drop control devices; they control the bar during the drop into the guide
channels.
N Clamps; they hold the bar during its loading and removal from the bar pusher collet.
P Facing device; it sends a signal during the bar passage.
Q Remnant collection box; it collects the bar remnant.
R Lubricating pump; it delivers oil to the guides.
S Oil tank; contains the lubricating oil.
T Hand-held keyboard; it allows bar feeder programming and function actuation.
U Electric cabinet; houses the electric switchboard.
V Axial displacement; it helps to remove the bar feeder body from the lathe.
Z Pneumatic bar drop controls cylinder
X Pneumatic clamps cylinder
