IEMCA MASTER 880 MP-E - Pneumatic System - Main Components

2 - TECHNICAL INFORMATION MASTER 880MP E-volution
GB
2 - Pag. 5 / 19

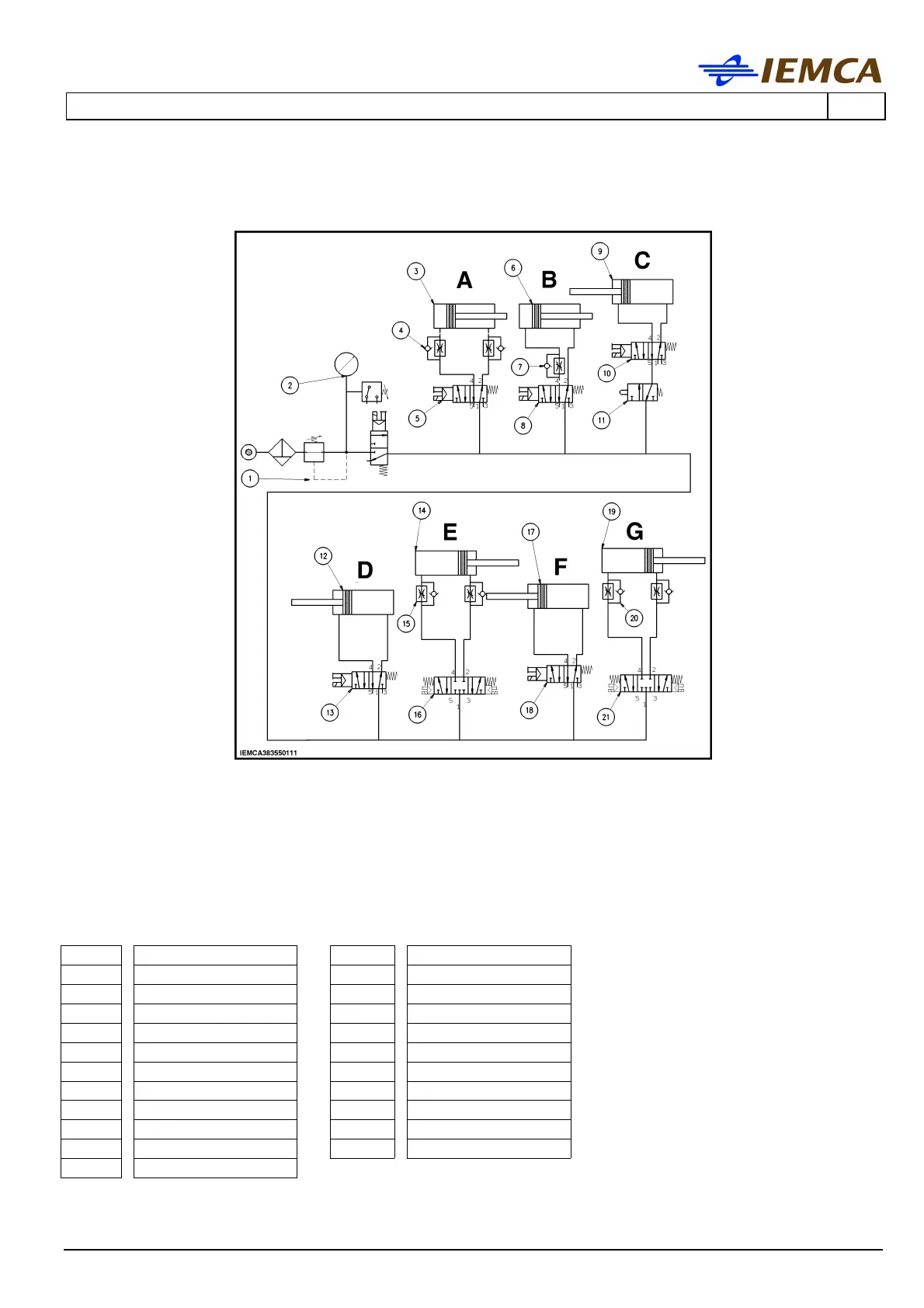

2.1.3 Pneumatic system - Main components
A - PNEUMATIC BAR DROP CONTROL DEVICE UNIT
B - FACING CYLINDER UNIT
C - BUSHING DRIVE UNIT
D - PNEUMATIC CLAMPS
E - BAR SELECTORS
F - GUIDE CHANNEL PNEUMATIC LOCKING UNIT
G - GUIDE CHANNEL OPENING UNIT
POS. DENOMINATION POS. DENOMINATION
1 FILTER 12 CYLINDER
2 PRESSURE GAUGE 13 ELETCTROVALVE
3 CYLINDER 14 CYLINDER
4REGULATOR 15REGULATOR
5 ELETCTROVALVE 16 ELETCTROVALVE
6 CYLINDER 17 CYLINDER
7 REGULATOR 18 ELETCTROVALVE
8 ELETCTROVALVE 19 CYLINDER
9CYLINDER 20REGULATOR
10 ELETCTROVALVE 21 ELETCTROVALVE
11 VALVE
