4 - HANDLING AND INSTALLATION MASTER 880MP E-volution
4 - Pag. 8 / 17

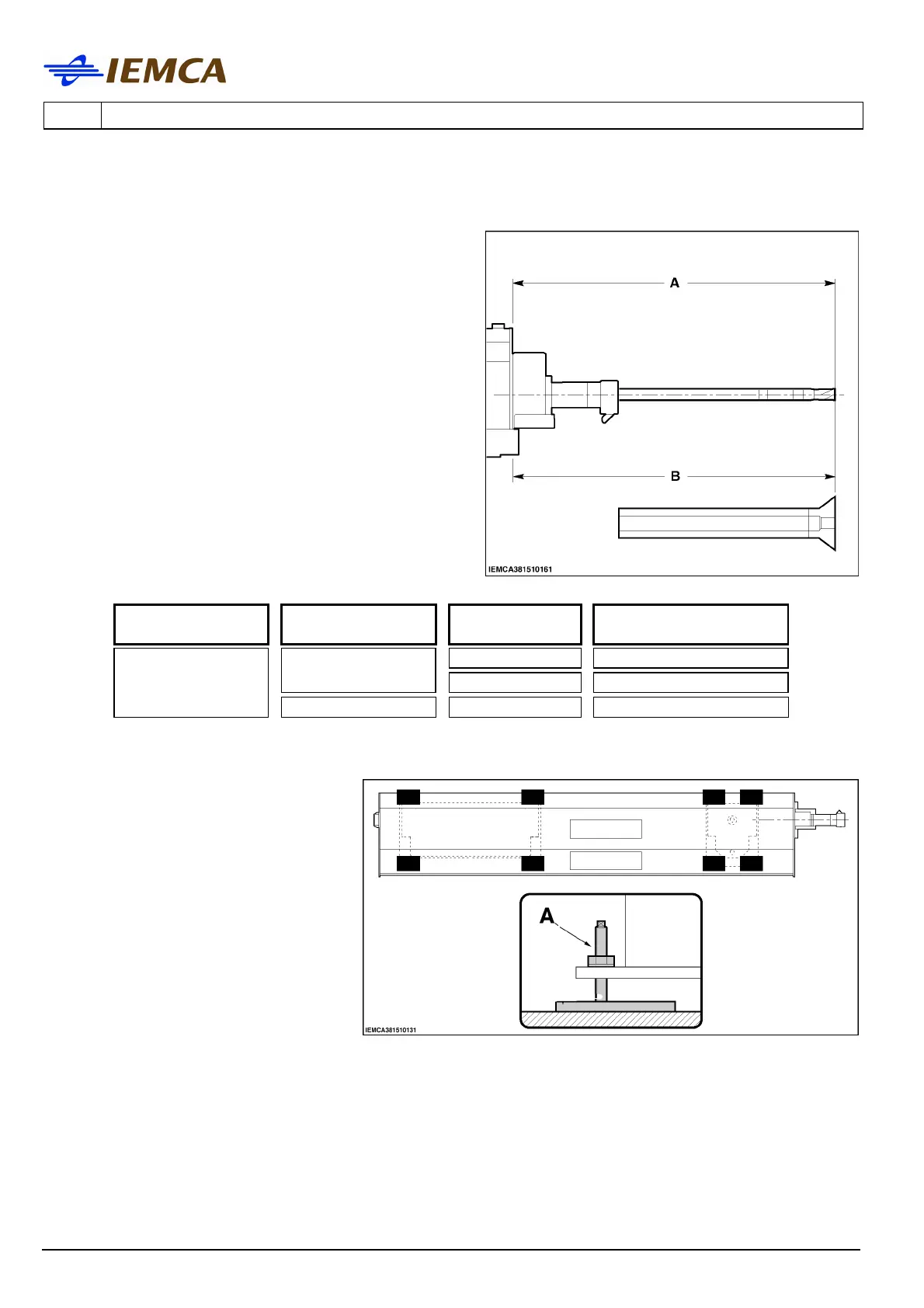

4.4.3 Preliminary positioning
• Position the feeder behind the lathe, by taking
into account the overall dimensions and side
plays of both machines. The coupling distance
(B) should not exceed the bar-pusher max.
extension (A).
Table 3. Max. bar-pusher extension
Model Version Version A - Max. extension
(mm)
L 1350
33-38-43
LL 1600
MASTER 880 MP
Evolution
38-43
XLL 1850
• Roughly adjust the height of the
working axis and the alignment
with the lathe by turning the
screws of plates A.
