5 - ADJUSTMENTS AND SETTING-UP MASTER 880MP E-volution
GB
5 - Pag. 3 / 14

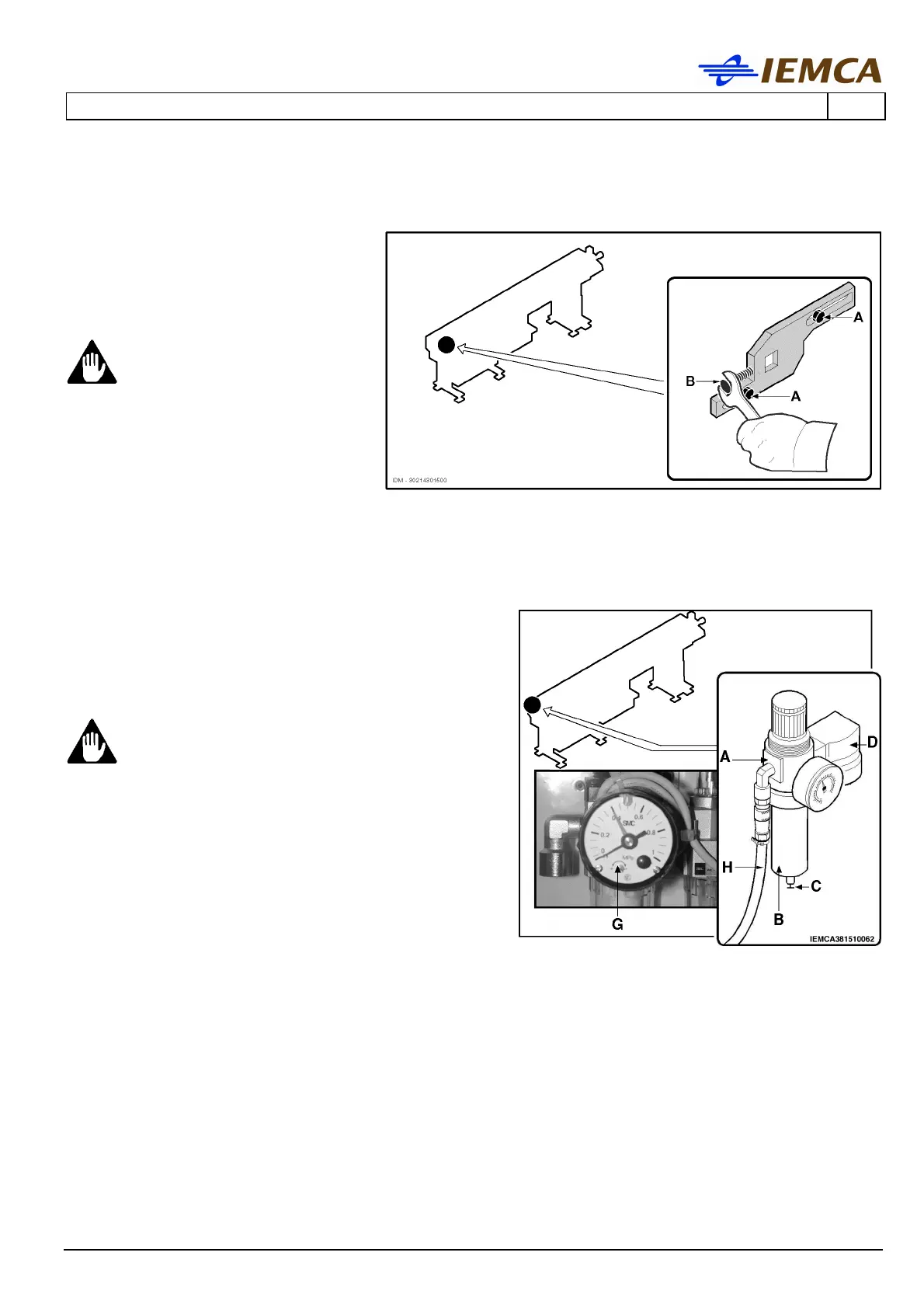

5.2.1 Feeding chain - Adjustment
• Losen both (A) screws and
adjust chain tension by turning
the (B)screw.
• Restore bar feeder initial
working conditions.
WARNING
Perform chain adjustment
by means of a
dynamometric wrench,
then tighten the (B) screw
by setting the torque to
4N/meter and tighten both (A)fixing screws.
5.2.2 Setting the pressure switch
After unscrewing the glass protection, the pressure
switch can be properly adjusted by turning the
relevant adjusting screw (G). Proper setting is 4.5
bars (0.45 MPa).
CAUTION:
Do not further turn anti-clockwise when
the green pointer is found on 0, as this
may cause damage to the pressure
switch.
