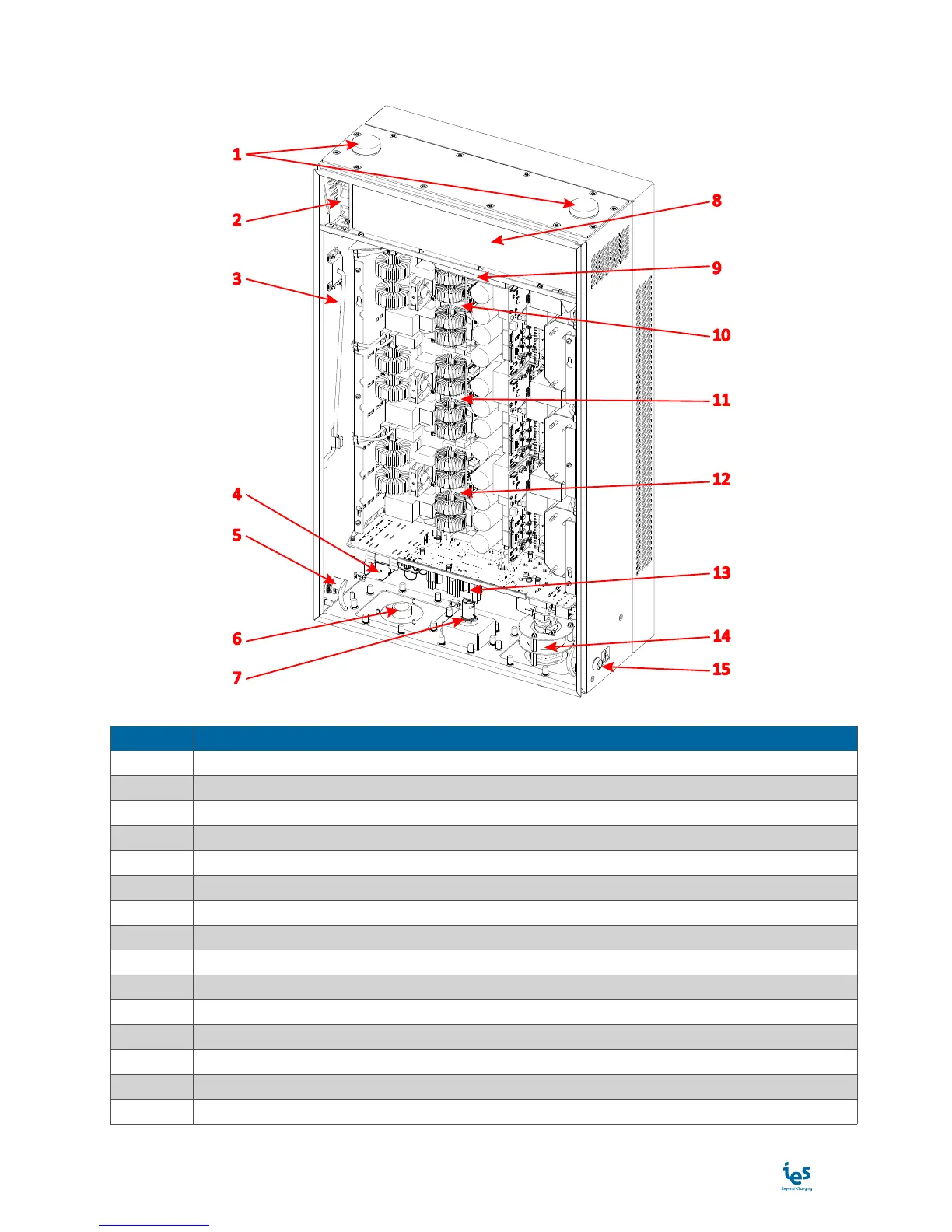

Internal view - lower level
1
2
3
5
6
7
8
9
10
11
12
13
14
15
4
Position Description
1 Antennas
2 External fans for heat exchanger
3 Hood stand
4 AC input configuration board
5 Key locker
6 Input plate + cable gland
7 Emergency stop button
8 Heat exchanger
9 Extractor fan
10 8kW Module - slave 1
11 8kW Module - slave 0
12 8kW Module - master
13 Distribution board
14 Output plate + cable gland
15 Key locker
Note: May change depending on version or technical modification
