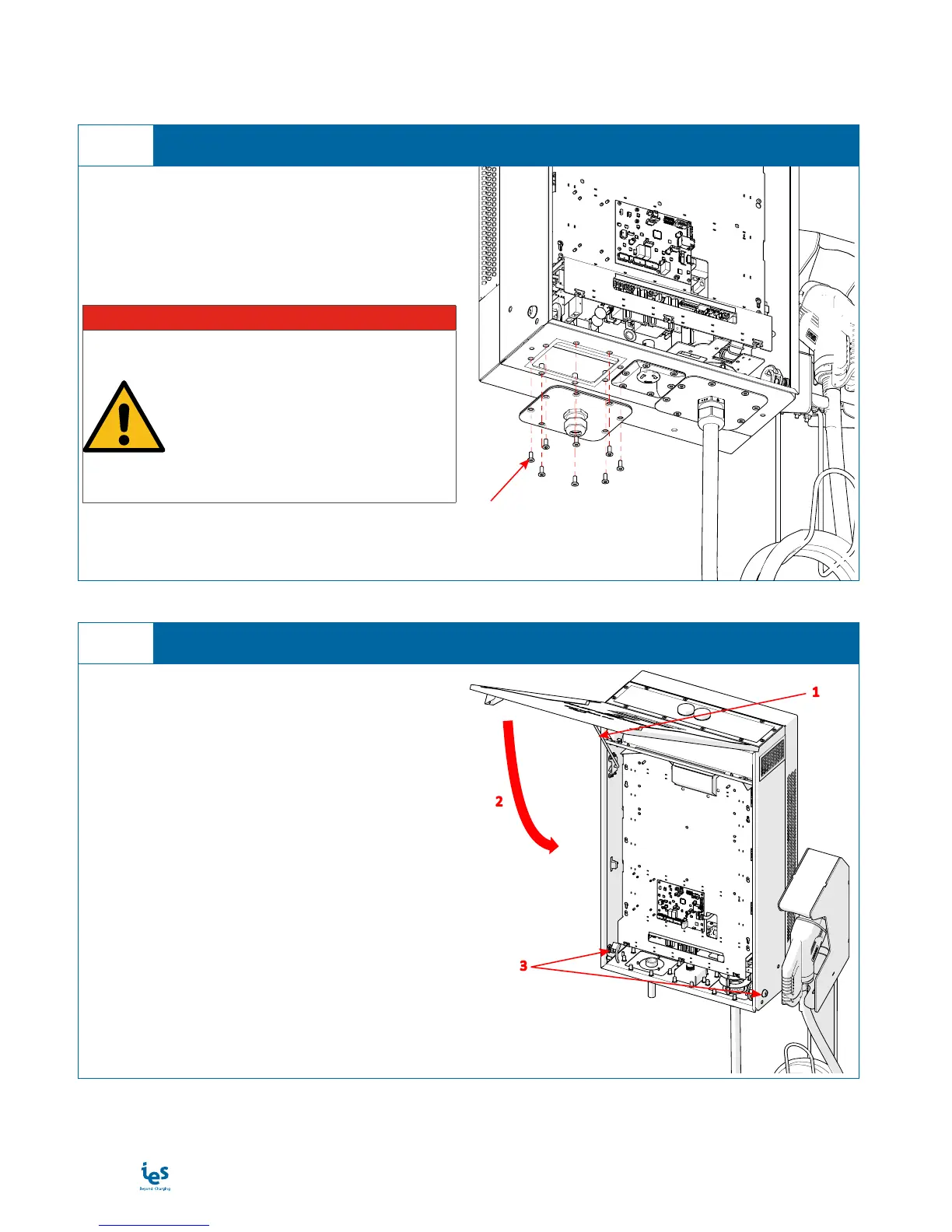

1. Instal the screws (8) holding input plate with the
cable gland - position 1
I DANGER
HAZARD OF ELECTRIC SHOCK, EX-
PLOSION, OR ARC FLASH
• Be sure the supply power is off
before starting installation
• Make sure nobody can switch on
power during installation
Failure to follow these instructions will
result in death or serious injury.
1
Close input plate with cable gland
6
1. Remove the door stand - position 1
2. Close the door - position 2
3. Lock the door (2 keylocks) - position 3
3
2
1
Close the door
